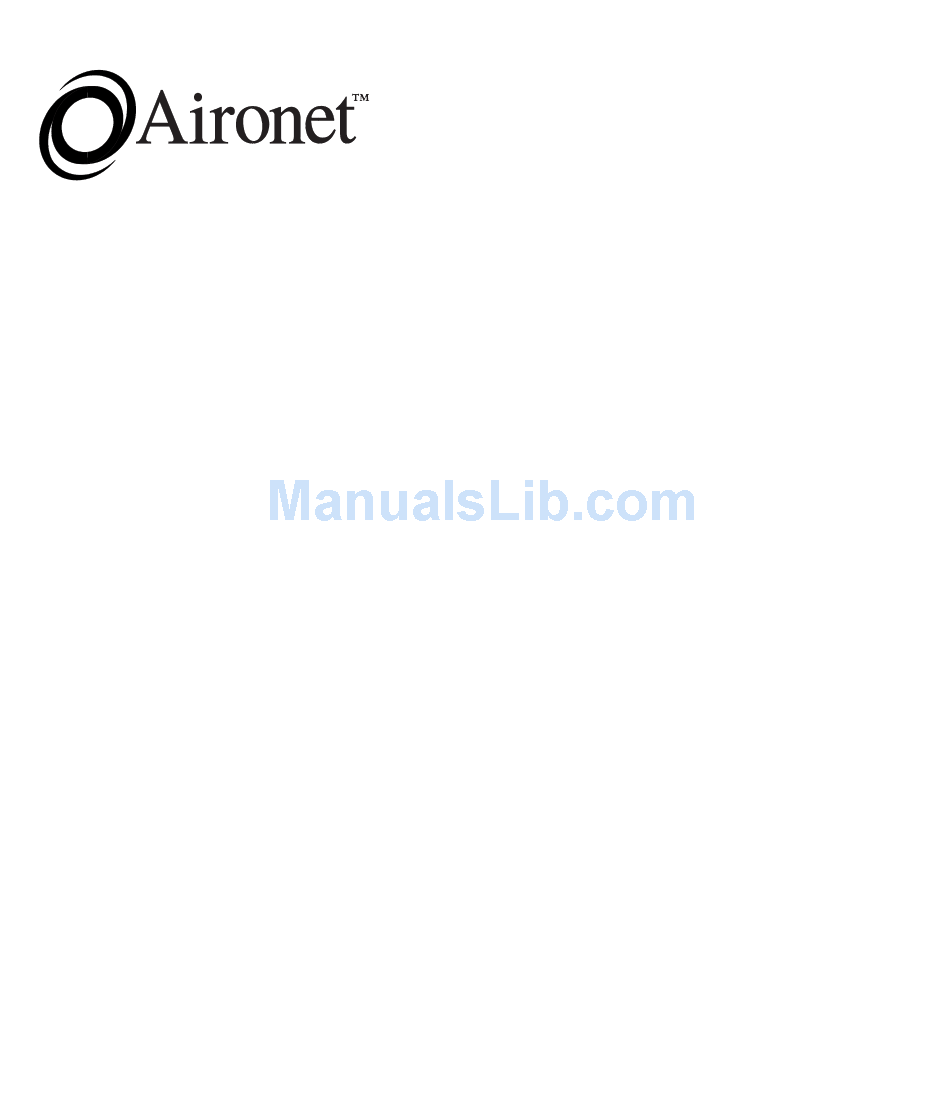

Wi r e l e s s C o m m u n i c a t i o n s , I n c .

Technical Reference Manual

Aironet Wireless Client
Products Supported: UC3500, MC3500
DOC 709-004237-B0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC3500 and is the answer not in the manual?

Questions and answers

Related Manuals for Aironet UC3500

Summary of Contents for Aironet UC3500

  • Page 1: Technical Reference Manual

    Wi r e l e s s C o m m u n i c a t i o n s , I n c . Technical Reference Manual Aironet Wireless Client Products Supported: UC3500, MC3500 DOC 709-004237-B0...
  • Page 2 Aironet Wireless Communications, Inc. Information in this document is subject to change without notice. Aironet Wireless Communications, Inc. makes no representations or warranties with respect to the contents or use of this manual and specifically dis- claims any express or implied warranties of merchantability or fitness for any particular purpose.

  • Page 3: Table Of Contents

    Contents About the Technical Reference Manual ................xiii Typographical Conventions ......................xv Welcome to the Aironet Wireless Client ........... xvii Serial Client ........................xvii Ethernet Client ......................xviii Universal Client ..................... xviii Multi-Client ......................xviii Data Transparency and Protocols ..................xix Ethernet Compatibility ....................
  • Page 4 Contents Installing the Console Port Cable ..................1-4 Installing the Ethernet Connection .............. 1-5 Attaching the AC/DC Power Pack and Powering On ............1-6 Viewing the Indicator Displays ..................... 1-7 Top Panel Indicators ......................1-7 Back Panel Indicators (Ethernet Only) ................1-9 Using the Mounting Bracket ....................
  • Page 5 Contents Removing a Remote Host (Remove) ................2-17 Monitoring of the DTR Signal .................... 2-18 Chapter 3 - Before You Begin ..............3-1 Viewing the ConÞguration Menu ..................3-2 Menu Descriptions ......................3-2 Saving ConÞguration Parameters ..................3-3 Backing up your ConÞguration (Dump) ................. 3-3 Restoring your ConÞguration ..................
  • Page 6 Contents Setting the Automatic Link Test Mode (Autotest) ..........4-11 Continuously Running a Link Test (Continuous) ..........4-12 Using the ConÞguration Radio Extended Menu ..............4-13 Setting the Parent ID (Parentid, Parent_timeout, Parent_wait) ........4-13 Setting Retry Transmission Time (Count_Retries) ............4-14 Setting the Refresh Time (Refresh) ................
  • Page 7 Contents Specifying the IP Subnet Mask (Inmask) ................ 6-3 Setting SNMP Location and Contact IdentiÞers (Location, Contact) ......6-4 ConÞguring the IP Routing Table ..................6-4 Displaying the Routing Table (Display) ................6-5 Entering a Host Route (Host) ..................6-6 Entering an Infrastructure Route (Net) ................
  • Page 8 Contents Radio Error Statistics (Radio) ..................8-4 Displaying Overall Status (Status) .................. 8-5 Recording a Statistic History (Watch) ................8-6 Displaying a Statistic History (History) ................8-7 Displaying Node Information (Node) ................8-8 Displaying ARP Information (ARP) ................8-9 Setting Screen Display Time (Display_Time) ..............8-9 Chapter 9 - Setting Up the Association Table ...........
  • Page 9 Distributing Firmware or ConÞguration (Distribute) ..........11-12 Downloading Using the Internet Boot Protocol (Bootp/DHCP) ........ 11-14 ConÞguring DHCP Servers (Class) ................11-15 Appendix A - Aironet Wireless Client SpeciÞcations ............. A-1 LAN Interfaces Supported ....................A-1 Radio Characteristics ......................A-1 Physical SpeciÞcations ....................... A-2...
  • Page 10 Contents Appendix B - Console Menu Tree ...................B-1 Appendix C - SNMP Variables ..................C-1 Appendix D - Aironet Technical Support ............... D-1 UserÕs Guide ........................D-1 Communications ......................D-1 Web Site ......................... D-1...
  • Page 11 Contents...
  • Page 12 Figure 0.4 - Multi-Clients Connected to an Access Point ..... xxviii Figure 0.5 - Multi-Clients Connected to a Bridge Unit ......xxix Figure 1.1 - Overview of the Aironet Wireless Client ......1-2 Figure 1.2 - Attaching the Antenna ............1-3 Figure 1.3 - Console Port Connection ............

  • Page 13: List Of Tables

    List of Tables Table 1.1 - Top Panel Indicator Description ..........1-8 Table 4.1 - Auto Link Test Display Patterns ..........4-12...

  • Page 15: About The Technical Reference Manual

    This manual covers the installation, configuration, control, and maintenance of your Aironet Wireless Client. Please read Chapter 1 – Installing the Aironet Wireless Client for Ethernet or Serial before attempting to install, or use the hardware and software described in this manual.
  • Page 16 Console Port. Appendix C – SNMP Variables – Lists the SNMP variables supported by the Aironet Wireless Client. Appendix D – Aironet Technical Support – Describes how to contact Aironet for technical support.

  • Page 17: Typographical Conventions

    Aironet Wireless Client Typographical Conventions When reading the technical reference manual, it’s important to under- stand the symbol and formatting conventions used in the documentation. The following symbols and formatting are used in the manual. Convention Type of Information Indicates a note which contains important information set off from the normal text.
  • Page 18 Aironet Wireless Client...

  • Page 19: Welcome To The Aironet Wireless Client

    The Aironet Wireless Client operates by associating to an Access Point or Bridge to make a connection to remote end nodes. If two end nodes are both Aironet Wireless Clients and they are within radio range of each other, the units may be configured to send the radio packets directly to each other without connecting to an intervening Access Point or Bridge.

  • Page 20: Ethernet Client

    Aironet Wireless Client There are two common applications for the Serial Client: Replacing a serial cable with a wireless link. The cable between a serial device and its host can be eliminated. NOTE: For this application, two Wireless Clients are required.

  • Page 21: Data Transparency And Protocols

    The Aironet Wireless Client transports data packets transparently as they move through the wireless infrastructure. The Aironet Wireless Client is also protocol independent for all packets, except those either addressed specifically to the Aironet Wireless Client or sent as multicast address packets.

  • Page 22: Protocols Supported

    The 3500 Series uses a radio modulation technique known as Frequency Hopping Spread Spectrum transmission (FHSS). It combines high data throughput with excellent immunity to interference. The Aironet Wire- less Client operates in the 2.4 GHz license-free Industrial Scientific and Medical (ISM) band.

  • Page 23: Radio Ranges

    This can be configured either as two separate remote antennas or as the single unit diversity antenna supplied by Aironet. Two antennas allow the 3500 Series to detect and use the strongest signal coming from either of the anten- nas.

  • Page 24: Radio Antenna

    Technology, previously developed for military “anti-jamming” and “low probability of intercept” radio systems. The Aironet Wireless Client must be set to the same System Identifier (SSID) as all other Aironet devices on the wireless infrastructure. Units with a different SSID will not be able to directly communicate with each...

  • Page 25: Terminology

    Access Point on the infra- structure including repeaters and client nodes. Cell – A single Aironet Wireless Client transmits and receives data within an area called a cell. A cell is the area of radio range (coverage) in which the Aironet Wireless Client can communicate to other devices in the wireless infrastructure.

  • Page 26: Client System Conþgurations

    The Aironet Wireless Client can be used in a variety of infrastructure configurations. How you configure your infrastructure will determine the size of the microcell, which is the area a single Aironet Wireless Cli- ent will provide with RF coverage. You can extend the RF coverage area by creating multiple microcells on a LAN.

  • Page 27: Figure 0.1 - Universal Client Or Multi-Clients Connect To An Access Point

    Aironet Wireless Client xxv Figure 0.1 - Universal Client or Multi-Clients Connect to an Access Point This is the most common use of the Universal Client. Each device connected to the Universal Client or Multi-Client can communicate with any device in the wired or radio network as well as with those devices attached to other Universal Client or Multi-Clients.

  • Page 28: Figure 0.2 - Ethernet Universal Clients Only

    Aironet Wireless Client Figure 0.2 - Ethernet Universal Clients Only If you do not need a wired infrastructure, you may set the Ethernet Universal Clients to connect to each other without the use of an Access Point. Each unit will send packets directly to its intended partner.

  • Page 29: Figure 0.3 - Serial Universal Clients Only

    Aironet Wireless Client xxvii Figure 0.3 - Serial Universal Clients Only If both ends of the serial connection are to be Serial Universal Clients and they are within radio range of each other, the Serial Universal Clients may be put into a mode to communicate directly with each other without an intervening Access Point.

  • Page 30: Figure 0.4 - Multi-Clients Connected To An Access Point

    Aironet Wireless Client Figure 0.4 - Multi-Clients Connected to an Access Point This is the most common use of the Multi-Client. Up to four nodes can be con- nected to a single Multi-Client (through the crossover part of a hub) in an Ethernet infrastructure.

  • Page 31: Figure 0.5 - Multi-Clients Connected To A Bridge Unit

    Aironet Wireless Client xxix Figure 0.5 - Multi-Clients Connected to a Bridge Unit The Multi-Client can communicate to the infrastructure backbone via an Aironet Bridge by connecting a long range antenna to the Multi-Client. Bridge Access Point (Root Unit) Multi-Client...
  • Page 32 Aironet Wireless Client...

  • Page 33: Chapter 1 - Installing The Aironet Wireless Client For Ethernet Or Serial

    Chapter 1 - Installing the Aironet Wireless Client for Ethernet or Se- rial C H A P T E R 1 Installing the Aironet Wireless Client for Ethernet or Serial This chapter describes the procedures for installing the Aironet Wireless Client for Ethernet or Serial.

  • Page 34: Before You Start

    Standard RP-SMA 2 dBi Dipole Antenna Mounting Kit If any item is damaged or missing, contact your Aironet supplier. Save all shipping and packing material in order to repack the unit should service be required. NOTE: Any remote antennas or associated coaxial cables are ordered and packed separately.

  • Page 35: Installation

    Installing the Aironet Wireless Client for Ethernet or Serial 1 - 3 Installation This section describes the procedures for installing the Aironet Wireless Client. Installing the Antenna The Aironet Wireless Client comes with a 2 dBi dipole antenna. 1. With the unit disconnected from the power source, attach the antenna to the antenna connector.

  • Page 36: Installing The Console Port Cable

    1 - 4 Aironet Wireless Client NOTE: If you are using a remote antenna with your Aironet Wireless Cli- ent, connect the coaxial cable to the antenna connector. Use only Aironet antennas and cables. Refer to the Aironet Antenna Guide (document number 710-003725) for available antennas and cables.

  • Page 37: Installing The Ethernet Connection

    Installing the Aironet Wireless Client for Ethernet or Serial 1 - 5 2. Set the terminal to 9600 Baud, No-Parity, 8 data bits, 1 Stop bit, and ANSI compatible. NOTE: If you are using a Serial Client, proceed to “Attaching the AC/DC Power Pack and Powering On”.

  • Page 38: Attaching The Ac/Dc Power Pack And Powering On

    NOTE: Connecting the power pack powers on the Aironet Wireless Client. Figure 1.5 - A/C Power Pack Connection Ethernet Wireless Client Serial Wireless Client When power is initially applied to the Aironet Wireless Client, all three indicators will blink in sequence to test the functionality of the indica- tors.

  • Page 39: Viewing The Indicator Displays

    Installing the Aironet Wireless Client for Ethernet or Serial 1 - 7 Viewing the Indicator Displays Top Panel Indicators The indicators are a set of displays located on the top panel of the Aironet Wireless Client (Figure 1.6). Radio Indicator: Used to indicate radio traffic activity. The light is normally off, but will blink green whenever a packet is received or transmitted over the radio.
  • Page 40 1 - 8 Aironet Wireless Client Table 1.1 - Top Panel Indicator Description Indicator Display Type Description Radio Status Infrastructure Nonassociated Blinking Not associated to an Node Green Access Point Green Associated to an Access Point Blinking Green Transmitting/Receiving Operational...

  • Page 41: Back Panel Indicators (Ethernet Only)

    Installing the Aironet Wireless Client for Ethernet or Serial 1 - 9 Back Panel Indicators (Ethernet Only) The back panel indicators are shown in Figure 1.7. : Solid amber to indicate the 10BaseT polarity is 10BaseT polarity reversed. Check cable connections.

  • Page 42: Using The Mounting Bracket

    1 - 10 Aironet Wireless Client Using the Mounting Bracket To mount the Aironet Wireless Client to a wall, use the mounting bracket. 1. Select the location to mount the unit. 2. Place the flat side (without tabs) of the bracket against the wall with the arrows pointing to the right or left (Figure 1.8).

  • Page 43: Figure 1.9 - Mounting The Aironet Wireless Client

    Installing the Aironet Wireless Client for Ethernet or Serial 1 - 11 Figure 1.9 - Mounting the Aironet Wireless Client Slotted Holes Tabs 5. Push the unit slightly against the bracket. Slide the unit in the direc- tion of the arrows on the bottom of the unit until it locks into place (Figure 1.9).
  • Page 44 1 - 12 Aironet Wireless Client...

  • Page 45: Chapter 2 - Accessing The Console System

    Accessing the Console System This chapter describes the methods used to access the Console system of the Aironet Wireless Client. This system contains all commands neces- sary to configure and monitor the operation of the unit. Here’s what you’ll find in this chapter:...

  • Page 46: Access Methods

    Aironet Wireless Client. When the unit is powered up, basic configura- tion must be performed by accessing the Console Serial Port. To gain access through the Serial Port, the Aironet Wireless Client must be con- nected to a terminal or a PC running a terminal emulation program. See Chapter 1 “Installing the Aironet Wireless Client for Ethernet or...

  • Page 47: Using The Console

    Accessing the Console System 2 - 3 Using the Console The Console system is organized as a set of menus. Each selection in a menu list may either take you to a sub-menu or display a command that will configure or display information controlling the unit. The Main Menu will be displayed.

  • Page 48: Sub-Menus

    2 - 4 Aironet Wireless Client To select an item from the menu you may either enter the number dis- played beside the selection, in which case you are immediately taken to the selection, or you may type the name listed in the option column fol- lowed by a carriage return.
  • Page 49 Accessing the Console System 2 - 5 Integers: A decimal integer. The prompt will indicate the range of allowed values. Enter a size between 1 and 100 : 99 hexadecimal integer – a number specified in hexadecimal using the characters 0-9 and a-f or A-F. Enter a hex number between 1h and ffh : 1a Network address: An infrastructure or MAC level address of 12 characters or less.

  • Page 50: Commands That Display Information

    2 - 6 Aironet Wireless Client Commands That Display Information There are several types of commands that display information to the operator. All displays end with a prompt before returning back to the menus. If nothing is entered at the prompt for 10 seconds, the display will automatically refresh.

  • Page 51: Telnet Access

    2. Press ENTER and the Main Menu is re-displayed. Telnet Access Once the Aironet Wireless Client has been assigned an IP address and connected to the infrastructure, you may connect to the Console system from a remote PC or host by executing the telnet command.

  • Page 52: Web Access

    2 - 8 Aironet Wireless Client You may disable telnet access to the Aironet Wireless Client with a menu configuration command. See “Enabling Telnet or HTTP Connec- tions (Telnet/Http)”. NOTE: If you are leaving telnet enabled, make sure you set passwords to secure the Console.
  • Page 53 Console Port, except instead of having to type characters to select the different options, the option is a hyper- link. You may disable web access to the Aironet Wireless Client with a menu configuration command. See “Enabling Telnet or HTTP Connections (Telnet/Http)”.

  • Page 54: About The Menus

    Statistics: View a variety of statistical information such as transmit and receive data throughput, Ethernet or Serial and radio errors, and the general status of the Aironet Wireless Client. See Chapter 8 “Viewing Statistics”. Association Table: A table that contains the addresses of all radio nodes associated below the Aironet Wireless Client on the infra- structure.

  • Page 55: Setting The Terminal Type (Type)

    Accessing the Console System 2 - 11 Using the Configuration Console Menu The Console system is configured using the Configuration Console Menu. To access this menu, select Configuration from the Main Menu then select Console from the Configuration Menu. Configuration Console Menu Option Value Description...

  • Page 56: Setting The Communication Port Parameters (Port)

    Character size selection may be: 7 or 8 bits per character. Parity may be: even, odd, or none. Flow control selections include: Off: No flow control. Input or output may be lost if the Aironet Wireless Client cannot handle inputs or outputs from your terminal quickly enough.

  • Page 57: Setting Privilege Levels And Passwords (Rpassword, Wpassword)

    Accessing the Console System 2 - 13 Hardware: The Aironet Wireless Client will use the RTS and CTS lines to control the flow of characters. The Aironet Wireless Client sends characters while RTS is high and will assert CTS when the terminal is allowed to send.
  • Page 58 2 - 14 Aironet Wireless Client è To Set a Privilege Level: 1. Select Privilege from the Main Menu. Enter one of [off, readonly, write] : 2. Type the first letter of your selection and press ENTER. è To Set a Password: 1.

  • Page 59: Enabling Linemode (Linemode)

    CAUTION: Make sure you write down the passwords you have established and keep them in a safe place. If you forget your password, the unit will have to be returned for factory servicing. Please contact Aironet Technical Support for further instructions.

  • Page 60: Using The Remote Menu

    2 - 16 Aironet Wireless Client Using the Remote Menu The Configuration Console Remote Menu is used to restrict remote access to a list of specific hosts. The list controls access via telnet, HTTP, or FTP. SNMP access is controlled separately on the Configura- tion SNMP Menu.

  • Page 61: Displaying A Host List (Display)

    Accessing the Console System 2 - 17 Displaying a Host List (Display) Use the host option to display the list of remote hosts. Adding a Remote Host (Add) Use the add option to add a host the remote host list. You will be prompted for the name of the host to add.

  • Page 62: Monitoring Of The Dtr Signal

    If the Console is configured for hardware flow control and the DTR sig- nal is currently down, all output will be discarded. The Aironet Wireless Client would assume flow is off and the Console would eventually lock If the cable used does not have the DTR signal connected it will not...

  • Page 63: Chapter 3 - Before You Begin

    Chapter 3 - Before You Begin C H A P T E R 3 Before You Begin This chapter provides a general introduction to the Configuration Menu and describes the procedures for saving and restoring your configura- tions. See Chapters 4 - 10 for more information on configurations. Here’s what you’ll find in this chapter: Viewing the Configuration Menu Menu Descriptions...

  • Page 64: Menu Descriptions

    Aironet Wireless Client Viewing the Configuration Menu Once you have completed the installation, the next step is to use the Configuration Menu commands to configure the Aironet Wireless Client. To access the Configuration Menu, select Configuration from the Main Menu.

  • Page 65: Backing Up Your Conþguration (Dump)

    Before You Begin 3 - 3 Snmp Used to configure the Aironet Wireless Client for use with the Simple Network Management Protocol. See Chapter 7 “Configuring SNMP”. More: Used to configure vendor specific items. Dump Used to dump the configuration commands to the Console Port.
  • Page 66 3 - 4 Aironet Wireless Client è To Back Up Configurations: NOTE: Commands may vary depending on the communications program used. 1. In the terminal emulation program, set Save to File to “On”. 2. Select Configuration from the Main Menu then select Dump.
  • Page 67 Before You Begin 3 - 5 4. Enter your configuration command choice. 5. Save the file after the commands have been dumped. 6. Turn Save to File to “Off”. 7. Press any key to clear the screen. Restoring your Configuration If your configuration is ever lost or corrupted, you can restore your con- figuration using the program’s ASCII upload commands.
  • Page 68 3 - 6 Aironet Wireless Client...

  • Page 69: Chapter 4 - Conþguring The Radio Network

    Chapter 4 - Configuring the Radio Network C H A P T E R 4 Configuring the Radio Network This chapter describes the procedures for configuring the Aironet Wire- less Client Radio Network. Here’s what you’ll find in this chapter: Overview Using the Configuration Radio Menu...

  • Page 70: Overview

    4 - 2 Aironet Wireless Client Overview When configuring the radio network, all units should be configured while in close proximity to each other. This will allow your units to communicate with other radio nodes on your infrastructure as the units’...

  • Page 71: Establishing An Ssid (Ssid)

    Use the rates option to define the rate at which the unit can receive information. Nodes will only be allowed to transmit to other Aironet Wireless Clients using the same data rate. Selecting the Data Rate (Rates) Use the rates option to define the rate at which the unit can receive...

  • Page 72: Basic Rates (Basic_Rates)

    1_2 Mbps. When the client node associates with the Aironet Wireless Client, the list of allowed rates must be sup- plied. The Aironet Wireless Client will track the lists on a client by cli- ent basis and communicate accordingly.

  • Page 73: Adding Ieee 802.11 Management Packet Extensions (Extend)

    >_ Adding IEEE 802.11 Management Packet Extensions (Extend) If this parameter is enabled, the Aironet Wireless Client will add exten- sions to some of the IEEE 802.11 management packets. This passes more information to other radio nodes allowing them to associate to the best Access Point.
  • Page 74 (a CTS) before the originator may send the real data packet. A node at the far end of a cell will see the RTS to/from the Aironet Wireless Client or the CTS to/from the Aironet Wireless Client. The node will know how long to block its transmitter to allow the real packet to be received by the Aironet Wireless Client.

  • Page 75: Running A Link Test (Linktest)

    Running a Signal Strength Test (Strength) The strength option sends a packet once per second to the parent Access Point. This packet is echoed back to the Aironet Wireless Client which records and displays the RF signal strength associated with that particu- lar node.

  • Page 76: Running A Multicast Test (Multicast)

    4 - 8 Aironet Wireless Client Configuration Radio Install Linktest Menu Option Value Description 1 - Multicast - Run a multicast test 2 - Unicast - Run a unicast test 3 - Remote - Run a remote test 4 - Destination...

  • Page 77: Running A Unicast Test (Unicast)

    Running A Unicast Test (Unicast) The unicast option can be used to test the path between the Aironet Wireless Client and any other Aironet node in the wired or radio net- work. The packets are sent with the same error recovery as normal user data so round trip times indicate the infrastructure throughput and con- gestion.

  • Page 78: Running A Remote Linktest (Remote)

    The destination option is used to indicate the target node address for the link test. You may enter an infrastructure address or the string “any”. If you select “any”, the Aironet Wireless Client will direct the test to the Access Point to which the unit is associated. If you enter a infrastructure address it may only be used for the remote or unicast linktests.

  • Page 79: Viewing Errors (Errors)

    Configuring the Radio Network 4 - 11 Viewing Errors (Errors) The errors option is used to view the Radio Error statistics that may have occurred during the link test. See Chapter 8 “Viewing Statistics”. Setting the Automatic Link Test Mode (Autotest) The autotest option is used to control the automatic running of a link test whenever a repeater associates to its parent.

  • Page 80: Continuously Running A Link Test (Continuous)

    4 - 12 Aironet Wireless Client Table 4.1 - Auto Link Test Display Patterns Ethernet % of Packets Lost Radio Status Quality Serial Green Green Green Excellent Green Green Amber Very Good Green Green 6-25 Good Green Amber 26-50 Satisfactory...

  • Page 81: Setting The Parent Id (Parentid, Parent_Timeout, Parent_Wait)

    The parentid parameter is used to control to which address the unit asso- ciates. If the value is set to “any”, the Aironet Wireless Client will asso- ciate with its best choice of parent based on signal quality and load. If the value is set to an infrastructure address, the Aironet Wireless Client will only associate with the matching address.

  • Page 82: Setting Retry Transmission Time (Count_Retries)

    The unit will then begin scanning for a new parent. Use the retry count field if the Aironet Wireless Client is mobile and you want to move from Aironet Wireless Client to Aironet Wireless Client very quickly after moving out of range.

  • Page 83: Setting Fragment Size (Fragment)

    Configuring the Radio Network 4 - 15 Setting Fragment Size (Fragment) This parameter determines the largest packet size that may be transmit- ted. Packets that are larger than this size will be broken into pieces that are transmitted separately and rebuilt on the receiving side. If there is a lot of radio interference or collisions with other nodes, the smaller lost packets can be retried faster and with less impact on the air- waves.
  • Page 84 4 - 16 Aironet Wireless Client...

  • Page 85: Using The Conþguration Menu

    Chapter 5 - Configuring the Ethernet or Serial Port C H A P T E R 5 Configuring the Ethernet or Serial Port This chapter describes the procedures for configuring the Aironet Wire- less Client’s Ethernet or Serial Port. Here’s what you’ll find in this chapter: Using the Configuration Menu...

  • Page 86: Activating/Disabling The Ethernet Port (Active)

    5 - 2 Aironet Wireless Client Using the Configuration Menu The Ethernet or Serial Port is configured using the Configuration Menu. To access this menu, select Configuration from the Main Menu then select Ethernet or Serial from the Configuration Menu.

  • Page 87: Setting Client Addresss (Add, Remove, Display)

    Configuring the Ethernet or Serial Port 5 - 3 Setting Client Addresss (Add, Remove, Display) Use the add, remove, or display options to update the client address list. Serial Configuration Menu Configuration Serial Menu Option Value Description 1 - Timeout - Idle forwarding time in characters 2 - Delimiters ""...

  • Page 88: Forwarding By Control Character (Delimiters)

    5 - 4 Aironet Wireless Client Forwarding by Control Character (Delimiters) If the protocol being used over the serial connection is packet based and each packet ends with one of a set of control characters, the delimiter option may be used to cause the packet to be forwarded as soon as the character is received.

  • Page 89: Partner Address (Partner)

    Configuring the Ethernet or Serial Port 5 - 5 Partner Address (Partner) Normally the partner address is speciÞed as an IP address in which case the IP protocol is used to encapsulate the TCP data. The remote end of the connection may be any device on the internet that supports TCP/IP. If there are Serial Clients on both ends of the connection and it is not feasible to assign each unit its own IP address, then the partner address may be speciÞed as the 6 byte MAC level infrastructure address of the...

  • Page 90: Telnet Connection And Terminal Type (Telnet, Type)

    5 - 6 Aironet Wireless Client Telnet Connection and Terminal Type (Telnet, Type) If the connection is to or from a host, the Serial Client may be conÞg- ured to use the telnet protocol on top of the TCP protocol. The Serial Client will perform enough negotiation of the telnet parameters to get the connection going.
  • Page 91 Configuring the Ethernet or Serial Port 5 - 7 You may select one of 300, 1200, 2400, 9600, 19200, 38400, 56800 or 115200 bits per second, 7 or 8 bits per character, even, odd or no parity. For ßow control you may select one: none, software ßow control using the xon/xoff characters, hardware ßow control using the RTS/CTS RS232-C control pins, or both types of ßow control.
  • Page 92 5 - 8 Aironet Wireless Client...

  • Page 93: Using The Conþguration Ident Menu

    Chapter 6 - Setting Network Identifiers C H A P T E R 6 Setting Network Identifiers This chapter describes the procedures for setting the Aironet Wireless Client network identifiers. Here’s what you’ll find in this chapter: Using the Configuration Ident Menu...

  • Page 94: Establishing A Node Name (Name)

    >_ Establishing a Node Name (Name) The name option is used to establish a unique node name for the Aironet Wireless Client. The name is a text string of up to 20 characters that appears on all Console Port Menus. It is passed in association messages to other nodes on the radio network.

  • Page 95: Assigning An Ip Address (Inaddr)

    Assigning an IP Address (Inaddr) Use the inaddr option to establish an IP (Internet Protocol) address for the Aironet Wireless Client. An IP address must be assigned to the unit before it can be accessed by either telnet, HTTP, or SNMP.

  • Page 96: Setting Snmp Location And Contact Identiþers (Location, Contact)

    6 - 4 Aironet Wireless Client Setting SNMP Location and Contact Identifiers (Location, Contact) Use the location and contact options to specify the location of the SNMP workstation and the contact name of the individual responsible for managing it in the event of problems. See Chapter 7 “Configuring SNMP”.

  • Page 97: Displaying The Routing Table (Display)

    Setting Network Identifiers 6 - 5 If the destination address is on another subnet and matches the infra- structure portion of a net entry in the table (using the associated subnet mask), the packet will be forwarded to the MAC address corresponding to the next hop IP address from the table entry.

  • Page 98: Entering A Host Route (Host)

    This item may also be assigned by a BOOTP or DHCP server. If the value is left as 0.0.0.0, the Aironet Wireless Client will use the true destination address and assume that a gateway will respond to ARP requests for the remote destination.
  • Page 99 Chapter 7 - Configuring SNMP C H A P T E R 7 Configuring SNMP This chapter describes how to configure the Aironet Wireless Client for use with the Simple Network Management Protocol (SNMP). Here’s what you’ll find in this chapter: Overview Using the Configuration SNMP Menu...

  • Page 100: Overview

    SNMP Network Management Station (NMS) connected to the infrastructure. In doing so, you eliminate the need to physically con- nect a terminal to the Aironet Wireless Client unit in order to complete the configuration and manage the unit. This is especially helpful if the unit is in an inconvenient or remote location.

  • Page 101: Enabling The Snmp Agent (Enabled)

    Enter an option number or name, Ò=Ó main menu, <ESC> previous menu >_ NOTE: The IP address must be assigned before the Aironet Wireless Cli- ent can be accessed by an NMS running SNMP. See Chapter 6 “Setting Network Identifiers”.

  • Page 102: Setting Up Snmp Communities (Communities)

    7 - 4 Aironet Wireless Client Setting Up SNMP Communities (Communities) The communities option contains a menu that allows control access to the SNMP agent. When you select the communities option, the Configu- ration SNMP Communities Menu appears. Configuration Snmp Communities Menu...

  • Page 103: Adding A Community (Add)

    Configuring SNMP 7 - 5 An SNMP community consists of the following: Name: The default set of communities is “Public, Proxy, Private, Regional, and Core”. You can define up to 5 community names. When an NMS requests information from the unit’s agent, the com- munity name in the request must match one of the names on the SNMP communities list.

  • Page 104: Setting A Community Access Mode (Access)

    7 - 6 Aironet Wireless Client Setting a Community Access Mode (Access) Use the access option to set the community access mode. There are two types of access modes – “Read-Only” and “Read-Write”. Read-Only: Allows “gets” and “get-nexts” on any readable variable.

  • Page 105: Setting Or Removing Allowed Nms Node Ids (Nid)

    Enabling Remote NMS to Change Community Setup (Remote) The remote option controls whether the section of the custom MIB for the Aironet Wireless Client allowing access to the community name con- figuration is enabled or disabled. On: A remote NMS with write access will be able to change the con- figuration and access rights for the community names.

  • Page 106: Specifying Community Names For Trap Messages (Trapcomm)

    A link down trap is sent when the configuration is changed or encounters a severe error condition. A link up trap is sent for an Aironet Wireless Client as soon as the radio is configured. An authentication failure trap will be sent if an SNMP request is received with an unknown community name.

  • Page 107: Specifying The Type Of Log To Cause An Snmp Trap (Loglevel)

    Configuring SNMP 7 - 9 Specifying the Type of Log to Cause an SNMP Trap (Loglevel) The Aironet Wireless Client may be configured to generate an enterprise specific trap whenever a log of a given severity or higher is produced.
  • Page 108 7 - 10 Aironet Wireless Client...

  • Page 109: Chapter 8 - Viewing Statistics

    C H A P T E R 8 Viewing Statistics This chapter describes how to use the Statistics Menu to monitor the performance of the Aironet Wireless Client. Here’s what you’ll find in this chapter: Viewing the Statistics Menu Throughput Statistics...

  • Page 110: Viewing The Statistics Menu

    Viewing the Statistics Menu The Statistics Menu provides easy access to a variety of statistical infor- mation regarding the Aironet Wireless Client’s performance. You can use the data to monitor the unit and detect problems when they occur. To access this menu, select Statistics from the Main Menu.

  • Page 111: Throughput Statistics (Throughput)

    Viewing Statistics 8 - 3 Throughput Statistics (Throughput) The Throughput Statistics Display provides a detailed summary of the radio data packets passing through your unit. To access this display, select Statistics from the Main Menu then select Throughput from the Statistics Menu.

  • Page 112: Radio Error Statistics (Radio)

    8 - 4 Aironet Wireless Client Highest Rate: Displays the highest rate recorded since the statistics were last cleared. Packets: Displays the number of packets transmitted or received. Bytes: Displays the total number of data bytes in all the packets transmitted or received.

  • Page 113: Displaying Overall Status (Status)

    Viewing Statistics 8 - 5 Buffer Full Frames Lost: Number of frames lost due to a lack of buffer space in the unit. Duplicate Frames: Number of frames that were received more than once. This is usually due to a frame acknowledgment being lost. CRC Errors: Number of frames received with an invalid CRC.

  • Page 114: Recording A Statistic History (Watch)

    8 - 6 Aironet Wireless Client Recording a Statistic History (Watch) Use the watch option to record the values of a chosen statistic over time. Once you select a statistic and a time interval, the unit will start a timer.

  • Page 115: Displaying A Statistic History (History)

    Viewing Statistics 8 - 7 Displaying a Statistic History (History) Use the history option to display the history of the statistic that is cur- rently being recorded. è To Display a Statistic History: 1. Select the history option. Depending on your watch option selec- tions, a display screen similar to the one below will appear.

  • Page 116: Displaying Node Information (Node)

    8 - 8 Aironet Wireless Client Displaying Node Information (Node) The node command displays current Ethernet or Serial information about the client. Radio Node Statistics Address Signal Tx Pkt Tx Byte Tx Retry Rx Pkt Rx Byte Rate ------- ------...

  • Page 117: Displaying Arp Information (Arp)

    Viewing Statistics 8 - 9 Displaying ARP Information (ARP) The ARP command displays the ARP table of IP to MAC addresses. It also displays whether the node supports Ethernet Type II or IEEE 802.2 framing. The last column displays the time until the entry times out. INTERNET ADDRESS TABLE Internet Address Network Address...
  • Page 118 8 - 10 Aironet Wireless Client...

  • Page 119: Chapter 9 - Setting Up The Association Table

    C H A P T E R 9 Setting Up the Association Table This chapter describes the procedures for setting up the Association Table for the Aironet Wireless Client. Here’s what you’ll find in this chapter: Overview Using the Association Menu...

  • Page 120: Overview

    ASCII name. This information is entered into the Aironet Wireless Client’s association table along with the address of the parent. Each Aironet Wireless Client maintains entries in its table for all nodes associated to it and all nodes associated to any repeater serving it. There may be up to 2048 entries in the table.

  • Page 121: Using The Association Menu

    Setting Up the Association Table 9 - 3 Using the Association Menu The Association Menu contains options that allow you to view the table entries, add entries, and control the routing of packets on your radio net- work. To access this menu, select Association from the Main Menu. Association Menu Option Value...

  • Page 122: Association Monitor Menu (Monitor)

    >_ Displaying the Network Map (Map) This command causes the Aironet Wireless Client to poll all of the other Aironet Wireless Clients in the local infrastructure for information about the radio nodes associated to them. Nodes that are associated to parents are displayed one level from their parents on the display.

  • Page 123: Network Map (Trace)

    Setting Up the Association Table 9 - 5 NETWORK MAP Device Node Id IP Address Name ----------- ------------ --------------- ----- ----------------- 3500E 00409611cd0e 149.023.165.163 4.1G 3500E_11cd0e AP3500T 00409611d1e5 149.023.165.169 4.1G AP3500E_11d1e5 UC3500E 004096207206 149.023.165.176 4.1G UC3500E_207206 MC3500 00409611e1f6 149.023.165.178 4.1G MC3500_11e1f6 LM3500 00409620222a...

  • Page 124: Specifying How Node Addresses Are Displayed (Niddisp)

    Specifying How Node Addresses are Displayed (NIDdisp) Use the NIDdisp option to specify how the node addresses are displayed on the Association Display Screen. The Aironet Wireless Client has the ability to display node addresses as follows: If you specify “numeric”, the addresses are displayed entirely in numeric form (default) If you specify “name”, the Organizational Unique Identifier (OUI)

  • Page 125: Chapter 10 - Setting Up Event Logs

    C H A P T E R 1 0 Setting Up Event Logs This chapter describes how to use the Logs Menu to setup and view event logs on the Aironet Wireless Client. Here’s what you’ll find in this chapter: Overview...

  • Page 126: Overview

    10 - 2 Aironet Wireless Client Overview The Aironet Wireless Client produces logs that record the occurrence of significant events occurring within your unit and on the infrastructure. The type of events that are recorded as logs are: Information Logs: Records status changes that occur in the normal operation of the system.

  • Page 127: Error Logs

    TFTP is loading “file name” from “ip address” This log is produced when the BOOTP server gives the Aironet Wireless Client the name of a configuration file and then the name of a firmware file to load.

  • Page 128: Severe Error Logs

    The unit, configured as a repeater, lost communications with its parent node after trying to send a packet the maximum number of times. The unit will try to re-associate. The problem may be a parent Aironet Wire- less Client failure. All local associations will be dropped.
  • Page 129 Setting Up Event Logs 10 - 5 Lost our association, radio restarted A radio configuration parameter has been changed. All associations will be dropped and the radio will be restarted. Lost our association, new specified router The specified router parameter of this repeater has been changed. The unit will drop its current association and try to re-associate.

  • Page 130: Using The Logs Menu

    10 - 6 Aironet Wireless Client Using the Logs Menu The event logs are viewed using the Logs Menu. To access this menu, select Logs from the Main Menu. Logs Menu Option Value Description 1 - History - Log and alarm history...

  • Page 131: Clearing The History Buffer (Clear)

    Setting Up Event Logs 10 - 7 The display will be similar to the following: OLDEST 0:00:00 I Node 004096109e30 BR2000-E Floor_2_109e30 added locally 0:00:03 I Node 0040961064de AP2000-E F3_1064de added for 004096109e30 30:35:09 NEWEST, cleared at 0:00:00 b[ackward], f[orward], n[ewest], o[ldest], a[ll], C[lear], q[uit] : First Line: “OLDEST”...

  • Page 132: Specifying The Type Of Logs To Print (Printlevel)

    10 - 8 Aironet Wireless Client Specifying the Type of Logs to Print (Printlevel) Use the printlevel option to specify the type of event logs to appear on the Console screen. You will know immediately when an error or infor- mation event has occurred and then take the necessary action required.

  • Page 133: Specifying The Type Of Logs To Light Status Indicator (Ledlevel)

    See “Specifying the Type of Logs to Print (Printlevel)”. Setting Statistic Parameters (Statistics) This command allows you to control how alarms are generated based on any of the available statistics kept by the Aironet Wireless Client. Logs may be: Disabled for statistics Generated if the statistic changes at all Generated if the statistic changes at a greater than specified rate...
  • Page 134 10 - 10 Aironet Wireless Client 2. You will be prompted for the statistics category. Enter the number or the short form. The short form is used to store the command in the configuration. Radio Receive Transmit 1 rpa Packets...

  • Page 135: Forwarding Logs To A Unix System (Syslog)

    On the Unix host, the Syslogd deamon process will usually add the cur- rent time and IP address of the unit that sent the log. The Aironet Wire- less Client will pre-pend its own name to the log before it is sent.
  • Page 136 10 - 12 Aironet Wireless Client...

  • Page 137: Chapter 11 - Performing Diagnostics

    C H A P T E R 1 1 Performing Diagnostics This chapter describes how to use the Diagnostics Menu to maintain the Aironet Wireless Client. Here’s what you’ll find in this chapter: Using the Diagnostics Menu Starting a Telnet Session...

  • Page 138: Using The Diagnostics Menu

    Running a Linktest (Linktest) Use the linktest option to test the quality of the radio transmission between the Aironet Wireless Client and other nodes on the radio net- work. See “Running a Linktest” in Chapter 4. Restarting the Unit (Restart) Use the restart option to reboot the Aironet Wireless Client.

  • Page 139: Using The Network Menu

    If the connection is to be made to another Aironet unit which has not been assigned an IP address, start the connection using the MAC level infrastructure address of the unit. This connection uses a proprietary protocol which is not routable.

  • Page 140: Changing The Escape Sequence (Escape)

    Typing the escape sequence of characters as defined by the escape option in the Diagnostics Menu. See “Changing the Escape Sequence”. If the remote node is an Aironet node, choose the close option which is accessible on the Console Port Main Menu during a telnet session only.

  • Page 141: Physically Locating A Unit (Find)

    Use a dollar sign “$” followed by two hexadecimal numbers Physically Locating a Unit (Find) Use the find option to blink the amber indicators of the Aironet Wireless Client on and off. Find a unit you can telnet to if you are not sure of it’s exact location.

  • Page 142: Loading New Code Versions (Load)

    Loading New Code Versions (Load) The Aironet Wireless Client code is stored in a flash memory chip inside the unit. Use the load option to load new code versions of the Aironet Wireless Client’s firmware and save it to flash memory.

  • Page 143: Downloading Using Xmodem Protocol (Xmodem/Crc-Xmodem)

    Performing Diagnostics 11 - 7 Downloading Using Xmodem Protocol (Xmodem/Crc-xmodem) Use the Xmodem or CRC-xmodem options to load the new firmware ver- sion through the Console Port. Depending on the communications software programs available, choose: Xmodem: Terminates packets with a “checksum” CRC-xmodem: Terminates packets with a Cyclic Redundancy Check (CRC).

  • Page 144: Downloading Or Uploading Using The File Transfer Protocol (Ftp)

    One Aironet Wireless Client console to another allowing units to send or receive firmware running locally. A PC or host system to the Aironet Wireless Client and send a new firmware version. NOTE: Before you download or upload new code versions, make sure you...
  • Page 145 flash memory and then executed. è To Download Firmware using FTP: 1. Load the file onto the PC, host, or Aironet Wireless Client you will retrieve from. 2. Select the dest option and type in the IP address of the host PC or Aironet Wireless Client.

  • Page 146: Uploading A New Firmware Version (Put)

    Aironet Wireless Client 4. Select the password option and type the password associated with the username. If downloading from another Aironet Wireless Client, the login password value must match the console write privilege password on the remote Aironet Wireless Client.
  • Page 147 Aironet Wireless Client you are sending to. Press ENTER. 2. Select the username option and type the username for the remote PC, host, or Aironet Wireless Client you are sending to. Press ENTER. If uploading to another Aironet Wireless Client, the username option must have a value even though the value is not used by the remote Aironet Wireless Client.
  • Page 148 Distributing Firmware or Configuration (Distribute) Use the distribute option to send the firmware or configuration from one Aironet Wireless Client to all other Aironet Wireless Clients on the infrastructure. By using the distribute option the time needed to perform firmware upgrades or make global changes to the configuration is greatly decreased.
  • Page 149 Performing Diagnostics 11 - 13 If the distribute is done without a password, the load will be ignored by remote units with a configured password. If a remote unit does not have a password and firmware is being distributed, it only accepts the load based on the version number and code checksum.

  • Page 150: Downloading Using The Internet Boot Protocol (Bootp/Dhcp)

    Client is powered on. The process for downloading firmware files using the Bootp/DHCP parameter is: 1. On power up, the Aironet Wireless Client will issue boot protocol requests to see if there are any Bootp or DHCP servers on the infra- structure that have been configured with the unit infrastructure...
  • Page 151 Performing Diagnostics 11 - 15 NOTE: The current configuration is not set back to the defaults before the file is processed. Therefore, the file contents do not have to be a complete configuration but may contain just the items you wish to change. 7.
  • Page 152 11 - 16 Aironet Wireless Client...

  • Page 153: Lan Interfaces Supported

    Appendix A - Aironet Wireless Client Specifications LAN Interfaces Supported Cable Specifications Connector Twisted Pair Ethernet IEEE 802.3 10BaseT RJ-45 connector Radio Characteristics Item Aironet Wireless Client Frequency 2.400 to 2.497 GHz* Modulation Frequency Hopping Spread Spectrum Antenna Diversity system using (2) dipole antennas (2 dBi gain). Optional antennas available.

  • Page 154: Physical Speciþcations

    Aironet Wireless Client Physical Specifications Item Description Size 20 x 15 x 5 cm (7.8 x 5.9 x 1.9 inches) Status Indicators Top Panel – Radio Traffic activity, Ethernet or Serial Traffic activity, Status Back Panel (Ethernet Only) – Ethernet Rx and Tx activity, Polarity, Port...

  • Page 155: Console Port Pin-Out

    DB-25 Pin Most terminals and communication programs will only require Txd, Rxd and Gnd to communicate with the Aironet Wireless Client. Some may also require DCD before the connection on-line can be made. If you use hardware flow control, connect all lines.
  • Page 156 Aironet Wireless Client...

  • Page 157: Appendix B - Console Menu Tree

    Appendix B - Console Menu Tree The Console system consists of multiple sub-menus that branch off the Main Menu, much like a tree. This Appendix provides you with a detailed listing of all menu, sub-menus and options contained in the Console Port. Main Menu Configuration General configuration...
  • Page 158 Aironet Wireless Client Ethernet Ethernet configuration Active Connection active Ethernet Only Size Maximum frame size Add a client address Remote Remove a client address Display Display the client address Serial Serial configuration Timeout Idle forwarding time in characters Delimiters Packet delimiting characters...
  • Page 159 Linemode Console expects complete lines Remote Control remote access Telnet Allow telnet connections Http Manage HTTP connections Frame Use HTML frames Display Display a remote host list Add a remote host Remove Remove a remote host Snmp Set snmp values Enabled Enable the SNMP agent Communities...
  • Page 160 Aironet Wireless Client Logs Alarm and log control History Log and alarm history Clear Clear the history buffer Printlevel Type of logs to print Loglevel Type of logs to save Ledlevel Type of logs to light status led Statistics Set alarms on statistics...
  • Page 162 Aironet Wireless Client...

  • Page 163: Appendix C - Snmp Variables

    Base) MIB-I and MIB-II for TCP/IP based internets as defined in Internet’s Request For Changes (RFC) 1156 and 1213. Since the Aironet Wireless Client does not perform any IP routing or forwarding, certain (groups of) managed objects are not meaningful. For SNMP requests pertaining to such managed objects, the node simply returns a “no such...
  • Page 164 Aironet Wireless Client The Interfaces Group MIBII.interfaces (1.3.6.1.2.1.2.x) Object ID Oject Name Object Type Access ifNumber integer read ifTable Sequence of if entry ifEntry Sequence entry 2.1.1 ifIndex integer read 2.1.2 ifDescr string read 2.1.3 ifType integer read 2.1.4 ifMtu...
  • Page 165 The IP Group MIBII.ip (1.3.6.1.2.1.4.x) Object Id Object Name Object Type Access ipForwarding integer read ipDefaultTTL integer write ipInReceives counter read ipInHdrErrors counter read ipInAddrErrors counter read ipForwDatagrams counter read ipInUnknownProtos counter read ipInDiscards counter read ipInDelivers counter read ipOutRequests counter read ipOutDiscards...
  • Page 166 Aironet Wireless Client The ICMP Group MIBII.icmp (1.3.6.1.2.1.5.x) Object Id Object Name Object Type Access icmpInMsgs counter read icmpInErrors counter read icmpInDestUnreachs counter read icmpInTimeExcds counter read icmpInParmProbs counter read icmpInSrcQuenchs counter read icmpInRedirects counter read icmpInEchos counter read icmpInEchoReps...
  • Page 167 The Transmission group MIBII.transmission.dot3 (1.3.6.1.2.1.10.7.x) Object Id Object Name Object Type Access dot3Table Sequence of entry dot3 dot3Entry Sequence entry 1.1.1.1 dot3Index integer read 1.1.3.1 dot3MacSubLayerStatus integer write dot3StatsTable Sequence of entry dot3Stats dot3StatsEntry Sequence entry 2.1.1.1 dot3StatsIndex integer read 2.1.2.1 dot3StatsAlignmentErrors counter...
  • Page 168 Aironet Wireless Client The SNMP Group MIBII.snmp (1.3.6.1.2.1.11.x) Object Id Object Name Object Type Access snmpInPkts counter read snmpOutPkts counter read snmpInBadVersions counter read snmpInBadCommunityNames counter read snmpInBadCommunityUses counter read snmpInASNParseErrs counter read snmpInBadTypes counter read snmpInTooBigs counter read snmpInNoSuchNames...
  • Page 169 3.2 The Custom MIB The Configure Ethernet Group ACCESSPOINT.configuration.cfgEthernet (1.3.6.1.4.1.551.2.2.1.1.x) Object ID Object Name Object Type Access cfgEthEnable integer write cfgEthSize integer write The Configure ARLAN Group ACCESSPOINT.configuration.cfgArlan (1.3.6.1.4.1.551.2.2.1.2.x) Object Id Object Name Object Type Access cfgArlRoot integer write cfgArlParent string write cfgArlParentTime...
  • Page 170 Aironet Wireless Client The Configure Console Group ACCESSPOINT.configuration.cfgConsole (1.3.6.1.4.1.551.2.2.1.4.x) Object Id Object Name Object Type Access cfgConsPrivilege integer write cfgConsReadPwd string write cfgConsWritePwd string write cfgConsType integer write cfgConsBaud integer write cfgConsBits integer write cfgConsParity integer write cfgConsTelnet integer write...
  • Page 171 The Configure Logs Group ACCESSPOINT.configuration.cfgLogs (1.3.6.1.4.1.551.2.2.1.6.x) Object Id Object Name Object Type Access cfgLogPrint integer write cfgLogSave integer write cfgLogLed integer write cfgLogClear integer write cfgLogStatusLock integer write cfgLogSyslog ipaddress write The Configure Ident Group ACCESSPOINT.configuration.cfgIdent (1.3.6.1.4.1.551.2.2.1.9.x) Object Id Object Name Object Type Access cfgIdIpadr...
