EasyPro SC18 Assembly Instructions

Thank you for your purchase of the EasyPro SC18 ground cabinet. Ideal for housing aeration com-
pressors, this steel cabinet is designed to mount to an 18" x 11
base 2" above grade to ensure adequate ventilation. Keep grass, shrubbery or other obstructions
from blocking the air vents on the cabinet.

Mounting SC18 cabinet to base:

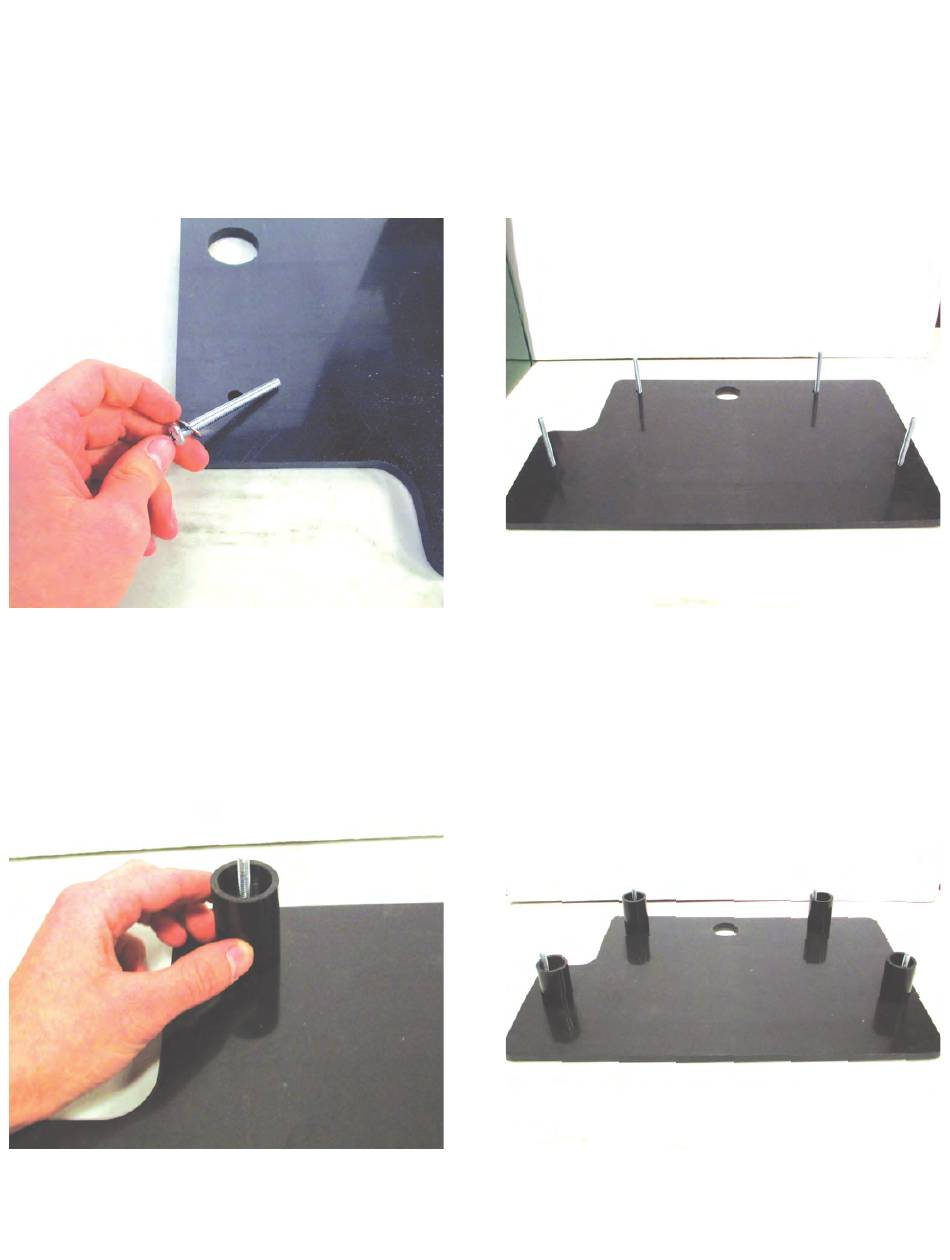

1. Determine location to install cabinet. En-
sure that ground is flat, level and clear of
possible obstructions.
3. Place the spacer blocks over top of
each bolt.

Ground Mount Cabinet Assembly

/ " base. The cabinet must sit on the
3
8
2. Install the four bolts and washers from the
bottom of the base.
4. Orient the cabinet with the base so that
the tubing outlet holes align with the notch
in the base.
