EasyPro SC18 Assembly Instructions

Thank you for your purchase of the EasyPro SC18 post mount cabinet. Ideal for housing aeration
compressors, this steel cabinet is designed to mount to a 4" x 4" post. Mount cabinet at least 12"
above grade to ensure adequate ventilation. Keep grass, shrubbery or other obstructions from
blocking the air vents on the cabinet.

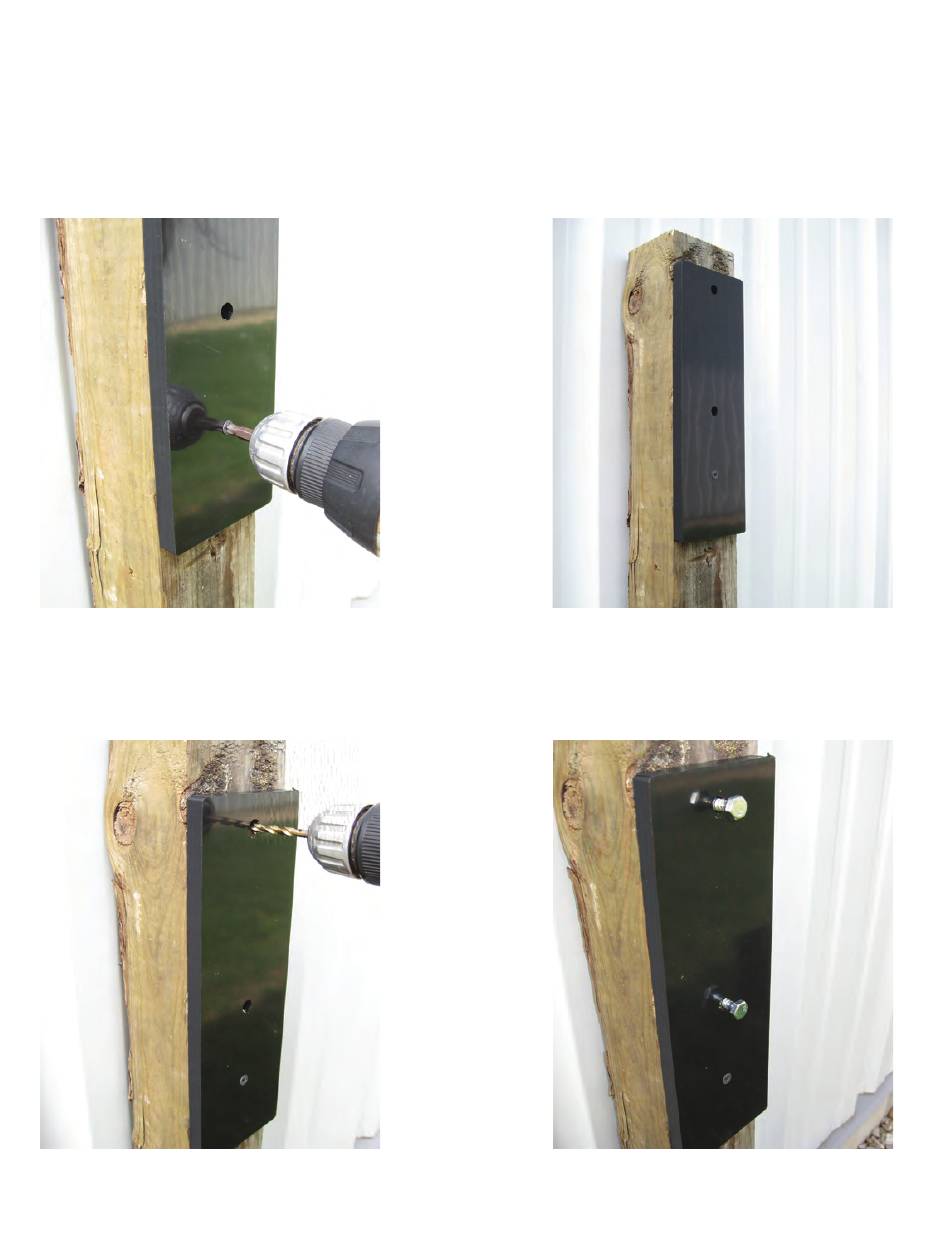

Mounting SC18 cabinet to post:

1. Ensure that post is plumb and properly
secured or installed to handle weight of
cabinet and its contents.
3. Drill / " pilot hole for supplied hex head lag
3
16
screws in post using holes in the mounting
bracket as a guide. Be sure to center the
pilot hole in openings on mounting bracket.

Post Mount Cabinet Assembly

2. Secure mounting bracket to post using
screw provided. Orient the mounting
bracket as shown with two larger holes
higher than the smallest hole.
4. Insert and thread supplied hex head lag
screws into drilled holes using a
wrench or socket. Do not tighten bolts all
the way. Leave them approximately
/ "
7
16
/ " out.
3
4
