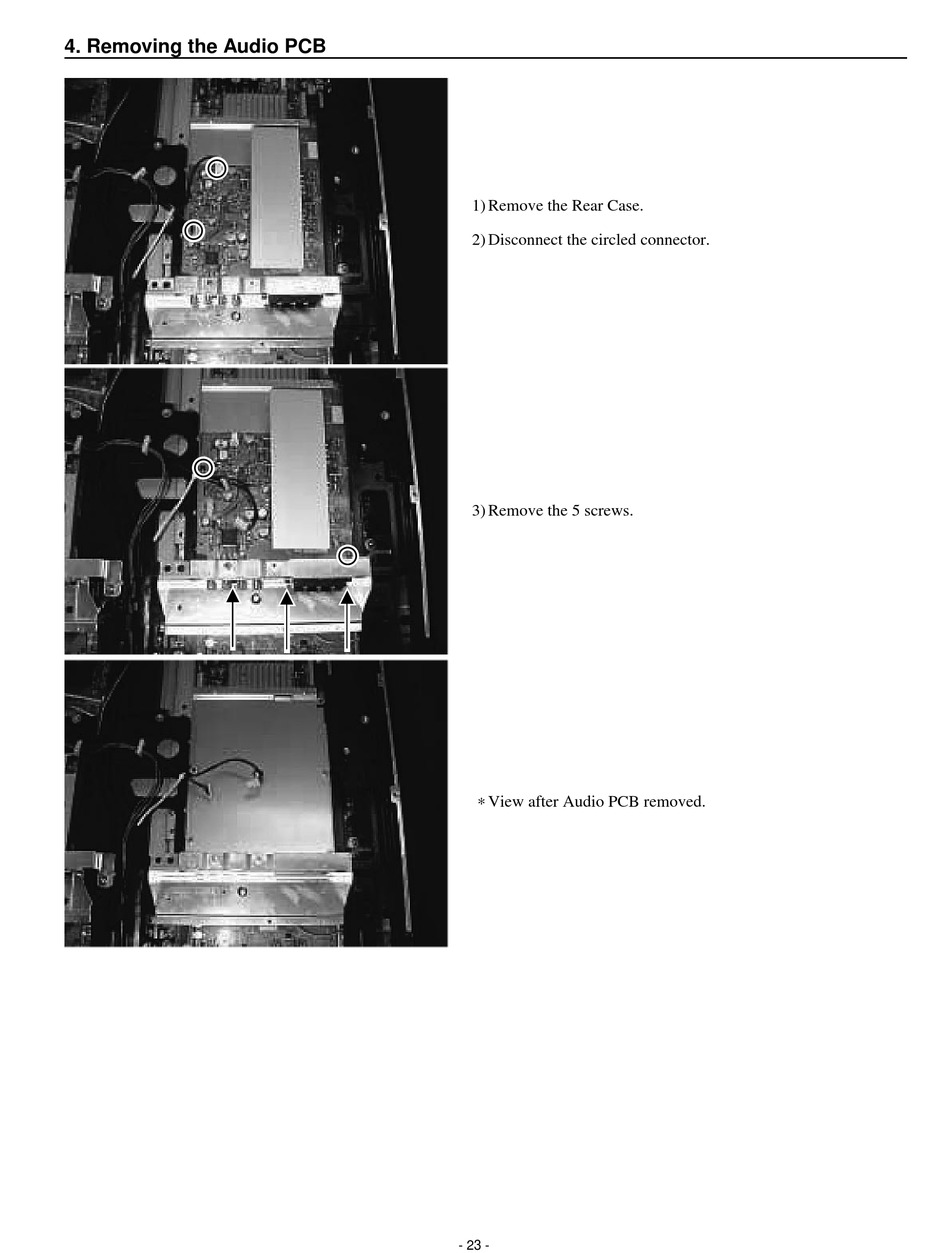

4. Removing the Audio PCB
1) Remove the Rear Case.
2) Disconnect the circled connector.
3) Remove the 5 screws.
∗ View after Audio PCB removed.
- 23 -
