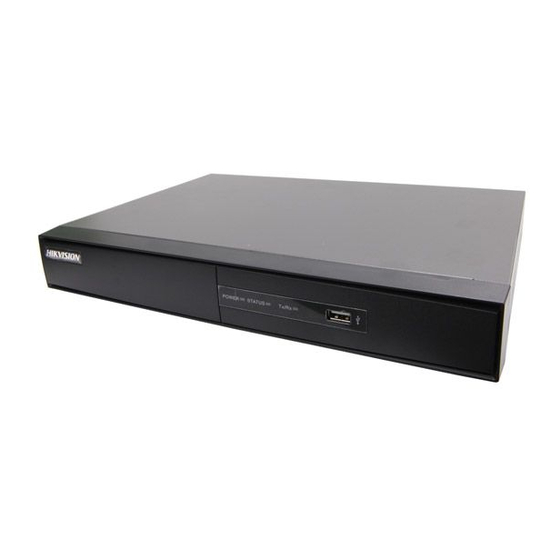

HIKVISION HD Series Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Digital Video Recorder
Quick Start Guide
UD.6L0202B2004A01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HIKVISION HD Series

Summary of Contents for HIKVISION HD Series

  • Page 1 Digital Video Recorder Quick Start Guide UD.6L0202B2004A01...
  • Page 2 (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.
  • Page 3 Quick Start Guide of Digital Video Recorder Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 Quick Start Guide of Digital Video Recorder Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected. Cautions: Injury or equipment damage may occur if any of the cautions are neglected.
  • Page 5 Quick Start Guide of Digital Video Recorder Preventive and Cautionary Tips Before connecting and operating your device, please be advised of the following tips: • Ensure unit is installed in a well-ventilated, dust-free environment. • Unit is designed for indoor use only. •...

  • Page 6: Table Of Contents

    Quick Start Guide of Digital Video Recorder TABLE OF CONTENTS DVR Installation .............................. 6 Hard Disk Installation ............................. 6 Front Panels ..............................8 Rear Panels ..............................15 Peripheral Connections ..........................18 Wiring of Alarm Input ........................... 18 Wiring of Alarm Output ........................18 Alarm Connection ............................

  • Page 7: Dvr Installation

    Quick Start Guide of Digital Video Recorder Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer. This manual is applicable to the models listed in the following table. Series Model Type 7200HFHI-SL...
  • Page 8 Quick Start Guide of Digital Video Recorder 2. Connect one end of the data cable to the motherboard of DVR and the other end to the HDD. 3. Connect the power cable to the HDD. 4. Place the HDD on the bottom of the device and then fasten the screws on the bottom to fix the HDD. 5.

  • Page 9: Front Panels

    Quick Start Guide of Digital Video Recorder Front Panels Front Panel of DS-7204HFHI-SE & DS-7200HFHI-SL Front Panel of DS-7208HFHI-SE Description of Front Panel Name Function Description Power indicator turns yellow when the power switch on the real POWER panel is turned on. Status indicator blinks red when data is being read from or written to STATUS HDD.
  • Page 10 Quick Start Guide of Digital Video Recorder Name Function Description Switch between the numeric or letter input and functions of the SHIFT composite keys. (Input letter or numbers when the light is out; Realize functions when the light is red.) Enter numeral “1”;...
  • Page 11 Quick Start Guide of Digital Video Recorder Name Function Description The ENTER button is used to confirm selection in any of the menu modes. It can also be used to tick checkbox fields. ENTER In Playback mode, it can be used to play or pause the video. In single-frame Playback mode, pressing the button will advance the video by a single frame.
  • Page 12 Quick Start Guide of Digital Video Recorder Name Function Description Switch between the numeric or letter input and functions of the SHIFT composite keys. (Input letter or numbers when the light is out; Realize functions when the light is red.) Enter numeral “1”;...
  • Page 13 Quick Start Guide of Digital Video Recorder Name Function Description In PTZ control mode, it can control the movement of the PTZ camera. The ENTER button is used to confirm selection in any of the menu modes. It can also be used to tick checkbox fields. ENTER In Playback mode, it can be used to play or pause the video.
  • Page 14 Quick Start Guide of Digital Video Recorder Name Function Description Input numbers and characters in Edit mode. Switch between different channels in Playback mode. The light of the button is blue when the corresponding channel is recording; it is red when the channel is in network transmission status;...
  • Page 15 Quick Start Guide of Digital Video Recorder Name Function Description Edit text fields. When editing text fields, it will also function as a Backspace button to delete the character in front of the cursor. On checkbox fields, pressing the button will tick the checkbox. EDIT/IRIS+ In PTZ Control mode, the button adjusts the iris of the camera.

  • Page 16: Rear Panels

    Quick Start Guide of Digital Video Recorder Rear Panels DS-7204HFHI-SL DS-7208HFHI-SL DS-7204HFHI-SE DS-7204HFHI-ST DS-7208HFHI-SE and DS-7208HFHI-ST Item Description VIDEO IN HD-SDI interface for video input. AUDIO IN RCA connector AUDIO OUT RCA connector DB15 connector for VGA output. Display local video output and menu. HDMI HDMI video output connector.
  • Page 17 Quick Start Guide of Digital Video Recorder DS-7300HFHI-SL DS-7300HFHI-ST DS-8100HFHI-SL DS-8100HFHI-ST Item Description VIDEO IN HD-SDI interface for video input. VIDEO OUT BNC connector for video output. AUDIO IN RCA connector USB Port Universal Serial Bus (USB) port for additional devices. HDMI HDMI video output connector.
  • Page 18 Quick Start Guide of Digital Video Recorder Item Description pins of PTZ receiver respectively. D+, D- pin connects to Ta, Tb pin of controller. For cascading devices, the first DVR’s D+, D- pin should be connected with the D+, D- pin of the next DVR. Connector for alarm input.

  • Page 19: Peripheral Connections

    Quick Start Guide of Digital Video Recorder Peripheral Connections Wiring of Alarm Input The alarm input is an open/closed relay. To connect the alarm input to the device, use the following diagram. If the alarm input is not an open/close relay, please connect an external relay between the alarm input and the device.

  • Page 20: Rs-485 And Controller Connection

    Quick Start Guide of Digital Video Recorder 3. Connect pluggable block back into terminal block. RS-485 and Controller Connection For DS-7200HFHI-SL, DS-7200HFHI-SE & DS-7200HFHI-ST To connect PTZ to the DVR: 1. Disconnect pluggable block from the RS-485 terminal block. 2. Press and hold the orange part of the pluggable block; insert signal cables into slots and release the orange part.

  • Page 21: Termination Switch Operation

    Quick Start Guide of Digital Video Recorder 2. Press and hold the orange part of the pluggable block; insert signal cables into slots and release the orange part. Ensure signal cables are in tight. 3. Connect Ta on controller to D+ on terminal block and Tb on controller to D- on terminal block. Fasten stop screws.

  • Page 22: Hdd Storage Calculation Chart

    Quick Start Guide of Digital Video Recorder HDD Storage Calculation Chart The following chart shows an estimation of storage space used based on recording at one channel for an hour at a fixed bit rate. Bit Rate Storage Used 128K 160K 192K 224K...

  • Page 23: Menu Operation

    Quick Start Guide of Digital Video Recorder Menu Operation Menu Structure The menu structure of the DVR is as follows: Menu structure varies according to different series. Startup and Shutdown Proper startup and shutdown procedures are crucial to expand the service time of the DVR. To start the DVR: Check the power supply is plugged into an electrical outlet.

  • Page 24: Setting The Admin Password

    Quick Start Guide of Digital Video Recorder After the device starting up, the wizard will guide you through the basic settings, including edting password, date and time settings, network settings, HDD initializing, and recording. Setting the Admin Password Purpose: For the first-time access, you need to activate the device by setting an admin password. No operation is allowed before activation.

  • Page 25: Login And Logout

    Quick Start Guide of Digital Video Recorder Login and Logout User Login Purpose: If the device has logged out, you must login the device before operating the menu and other functions. Steps: Select the User Name in the dropdown list. Input Password.

  • Page 26: Using The Setup Wizard

    Quick Start Guide of Digital Video Recorder Click Logout. Using the Setup Wizard The Setup Wizard can walk you through some important settings of the device. By default, the Setup Wizard starts once the device has loaded. Operating the Setup Wizard: 1.

  • Page 27: Adding Ip Cameras

    Quick Start Guide of Digital Video Recorder 2. Select the General tab. 3. In the General Settings interface, you can configure the following settings: Working mode (applicable for DS-8100HFHI-ST&SL only), NIC Type, IPv4 Address, IPv4 Gateway, MTU and DNS Server. If the DHCP server is available, you can check the checkbox of DHCP to automatically obtain an IP address and other network settings from that server.
  • Page 28 Quick Start Guide of Digital Video Recorder Make sure the camera to add has already been actiavted by setting the admin password, and the admin password of the camera is the same with the DVR’s. (For the encoders with multiple channels only) check the checkbox of Channel Port in the pop-up window, as shown in the following figure, and click OK to add multiple channels.

  • Page 29: Live View

    Quick Start Guide of Digital Video Recorder Explanation of the icons Icon Explanation Icon Explanation Edit basic parameters of the camera Add the detected IP camera. The camera is disconnected; you can click the icon to get the exception Delete the IP camera information of camera.

  • Page 30: Record Settings

    Quick Start Guide of Digital Video Recorder Click the Configuration button on the control panel, and you can enter the PTZ Settings interface. In PTZ control mode, the PTZ panel will be displayed when a mouse is connected with the device. If no mouse is connected, the icon appears in the lower-left corner of the window, indicating that this camera is in PTZ control mode.

  • Page 31: All-Day Recording

    Quick Start Guide of Digital Video Recorder Click the icon to enable the record, and the icon turns to . And click icon to disable the record, then the icon turns to All-day Recording Perform the following steps to set the all-day recording. On the live view window, right lick the window and move the cursor to the Start Recording option, and select Normal Record or Motion Detection Record on your demand.
  • Page 32 Quick Start Guide of Digital Video Recorder  OPTION 2: 1. Enter the Playback menu. Right click a channel in live view mode and select Playback from the menu. To the DS-7300HFHI-ST&SL and DS-8100HFHI-ST&SL series DVR, pressing numerical buttons on the front panel will switch playback to related channels during playback process.

  • Page 33: Backup

    Quick Start Guide of Digital Video Recorder Just check the channel or channels if you want to switch playback to another channel or execute simultaneous playback of multiple channels. Backup Recorded files can be backed up to various devices, such as USB flash drives, USB HDDs or USB DVD writers. To export recorded files: 1.
  • Page 34 Quick Start Guide of Digital Video Recorder...

  • Page 35: Accessing By Web Browser

    Quick Start Guide of Digital Video Recorder Accessing by Web Browser You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, please contact with your dealer or the nearest service center.
  • Page 36 Quick Start Guide of Digital Video Recorder Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. You may have to close the web browser to finish the installation of the plug-in. 0300011050420...
  • Page 37 Quick Start Guide of Digital Video Recorder...
