Milwaukee Tool

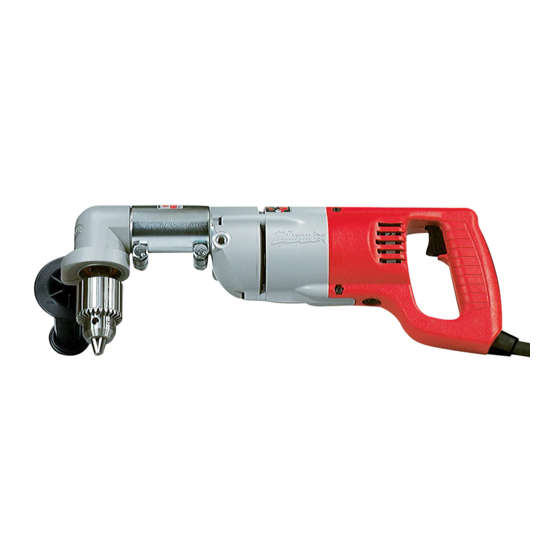

Heavy-Duty, Reversing 1/2" D-Handle Drill
Model Number: 3107 (kit)
WARNING!
1. Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the presence of flam-
mable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
3. Keep bystanders, children, and visitors away while operating a power tool. Distractions
can cause you to lose control. Protect others in the work area from debris such as chips and
sparks. Provide barriers or shields as needed.
4. Grounded tools must be plugged into an outlet properly installed and grounded in
accordance with all codes and ordinances. Never remove the grounding prong or modify
the plug in any way. Do not use any adapter plugs. Check with a qualified electrician if
you are in doubt as to whether the outlet is properly grounded. If the tools should electri-
cally malfunction or break down, grounding provides a low resistance path to carry electricity
away from the user.
5. Double Insulated tools are equipped with a polarized plug (one blade is wider than the
other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a
polarized outlet. Do not change the plug in any way. Double insulation ~O eliminates the
need for the three wire grounded power cord and grounded power supply system.
Safety Instructions
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire and/or personal injury.
GENERAL SAFETY RULES
WORK AREA
ELECTRICAL SAFETY
Advertisement
Table of Contents
Related Manuals for Milwaukee 3107
Summary of Contents for Milwaukee 3107
- Page 1 Milwaukee Tool Heavy-Duty, Reversing 1/2” D-Handle Drill Model Number: 3107 (kit) Safety Instructions READ AND UNDERSTAND ALL INSTRUCTIONS WARNING! Failure to follow all instructions listed below may result in electric shock, fire and/or personal injury. GENERAL SAFETY RULES WORK AREA 1.
- Page 2 6. Avoid body contact with grounded surfaces such as pipes, radiators, ranges and refrig- erators. There is an increased risk of electric shock if your body is grounded. 7. Don't expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Page 3 2. Keep hands away from all cutting edges and moving parts. 3. Maintain labels and nameplates. These carry important information. If unreadable or miss- ing, contact a MILWAUKEE Service facility for a free replacement. 4. Warning! Some dust created by power sanding, sawing, grinding, drilling and other costruc-...
- Page 4 1-1/2” 6” 1-1/2” 1-1/2” 4-5/8” 1/2” 5” 1/2” hi 0-900 1-1/2” 4-1/2” 1-1/2” 1-1/2” 2-9/16” 1/2” 3-1/2” 1/2” 1107-1 3107-1 0-500 1-1/2” 5” 1-1/2” 1-1/2” 3-5/8” 1/2” 3-3/4” 1/2” lo 0-400 1-1/2” 6” 1-1/2” 4-5/8” 1/2” 5” 1/2” hi 0-900 1-1/2”...
- Page 5 If damaged, return it immediately to your WARNING! local rental center to have it repaired by a MILWAUKEE service facility before use. If the plug will not fit the outlet, have a proper outlet installed by a qualified electrician.
- Page 6 EXTENSION CORDS Grounded tools require a three wire extension cord. Double insulated tools can use either a two or three wire extension cord. As the distance from the supply outlet increases, you must use a heavier gauge extension cord. Using extension cords with inadequately sized wire causes a seri- ous drop in voltage, resulting in loss of power and possible tool damage.
- Page 7 FUNCTIONAL DESCRIPTION 1. Handle 2. Trigger 3. Nameplate 4. Extension 5. Slide Handle 6. Keyed Chuck 7. Slide Handle Socket 8. Forward/reverse Switch 9. Quik-Lok® Cord (Model No. 1007-1 and 1107-1) 10. Ring Clamp 11. Right angle drive unit...
