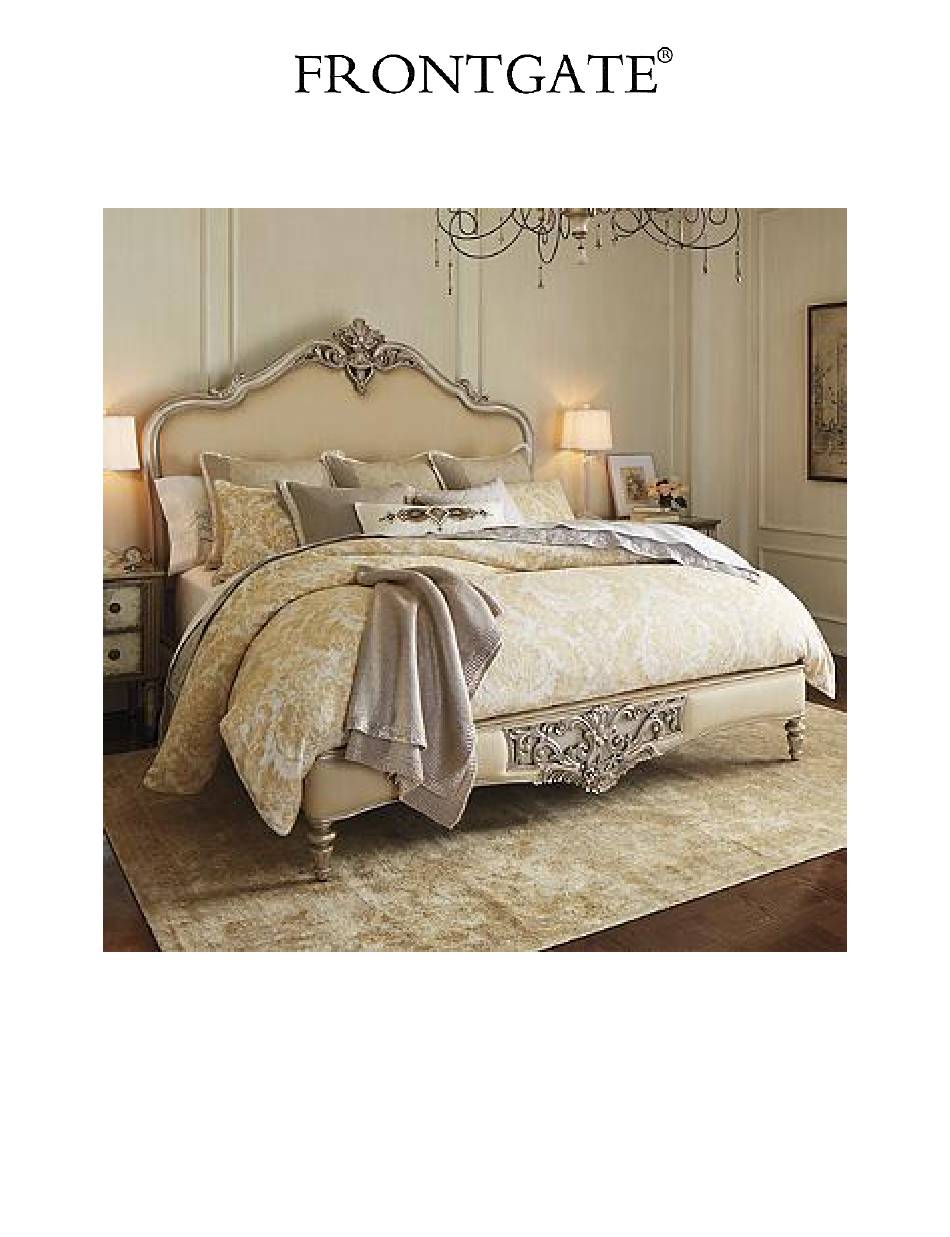

- Page 1 Assembly Instructions Marchand Upholstered Carved Bed Page | 1...
-
Page 2: Parts List
Thank you for purchasing this quality product. Be sure to check all packing materials carefully for any small parts that may have come loose inside the carton during shipment. Identify, count all parts, and compare with the Parts List below. *** Caution! Please read all instructions carefully before starting the assembly process. - Page 3 HARDWARE LIST BOLT THREAD M8 X 3.5” : 4 PCS HEXAGONAL BOLT M8 x 5” : 4 PCS SPRING WASHER M8 : 8 PCS NUT M8 : 8 PCS BED WASHER : 8 PCS PLAIN WASHER : 12 PCS TOOLS : WRENCH 1 PC Page | 3...
- Page 4 STEP 1 : Connect side rails to headboard using hexagonal bolt M8 x 5” (4 pcs)+ Plain washer (4 Pcs)+ Nut M8 (4 pcs) STEP 2 : Connect side rails to footboard using thread bolt M8 x 3, 5” (4 pcs)+ Plain washer (4 Pcs)+ Nut M8 (4 pcs) Page | 4...
- Page 5 Step 3 : Attach the center support into the center slat Step 4 : Put the center slat on the headboard and footboard Step 5 : Put the 9 Pcs slat on the bed, see below for details Slat : 9pcs Page | 5...
- Page 6 Please contact one of our Product Specialists for assembly assistance or questions at 1-800-537-8484 or email to ps@frontgate.com. Specialists are available weekdays 8:00 am to 8:00 pm EST or Saturday 9:30 am to 6:00 pm EST...
