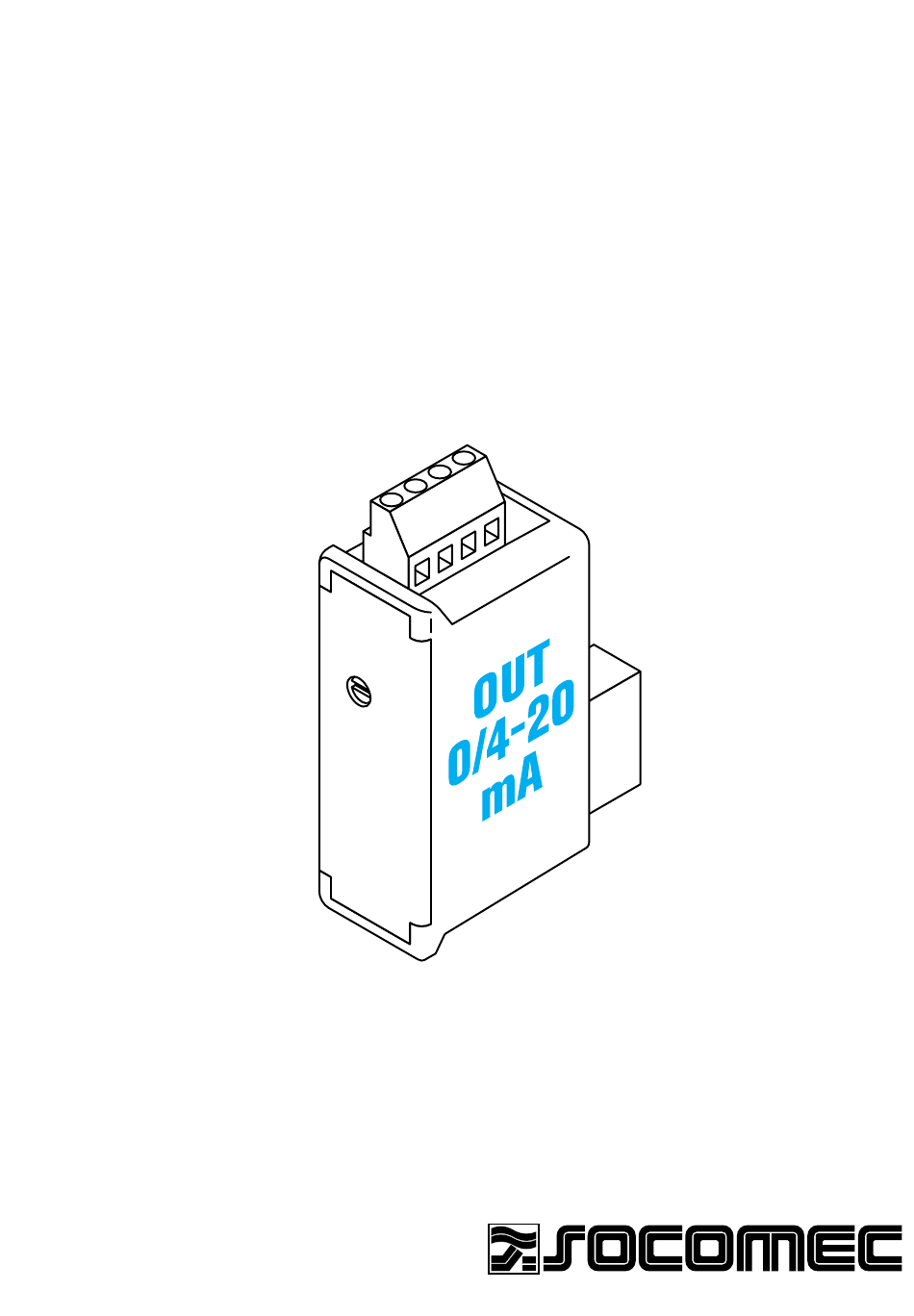

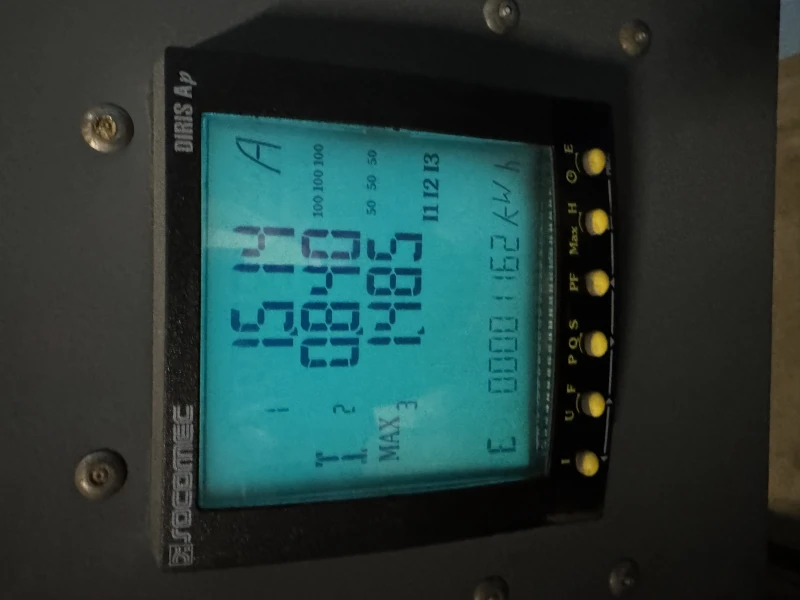

- Page 1 DIRIS Ap Out 0/4 – 20 mA Industrial Switching & Protection Systems...
- Page 2 SOCOMEC - Réf. : 875 518 B-GB...
- Page 3 PRELIMINARY OPERATIONS _________________ p. 4 GENERAL INFORMATION ____________________ p. 4 INSTALLATION ______________________________ p. 4 PROGRAMMING ____________________________ p. 6 TECHNICAL CHARACTERISTICS _____________ p. 9 SOCOMEC - Réf. : 875 518 B-GB SOCOMEC - Réf. : 875 518 B...
- Page 4 4 analog outputs installed on one Diris Ap. INSTALLATION The module is fitted onto the back of the DIRIS Ap in one of the 4 positions provided. CONNECTION The DIRIS Ap must be switched off SOCOMEC - Réf. : 875 518 B-GB...
- Page 5 Fix the module in one of the four positions. OUT2 OUT1 When using the four outputs, the two modules must be installed in the two left-hand positions as shown. OUT2 OUT4 OUT1 OUT3 SOCOMEC - Réf. : 875 518 B-GB...
- Page 6 Press again for: F, ΣS, ΣQ, ΣP, V3, V2, V1, U31, U23, Press once U12, In, I3, I2, I1. Confirm size. Press once Press to programme the value at 0 or 4 mA (LV). SOCOMEC - Réf. : 875 518 B-GB...
- Page 7 NB: for ∑P, ∑Q, ∑S and ∑PF the lower threshold (LV) corresponds to the negative value (example : -1000 kW). To confirm value . Press once Press to programme the value at 20 mA (HV). SOCOMEC - Réf. : 875 518 B-GB...
- Page 8 NB: for ΣP, ΣQ, ΣS and ΣPF the upper threshold (HV) may correspond to the positive value (example : + 1000 kW). To confirm value. Press once Press to programme analog output 2 type (OUt 2 20 MA TYPE). SOCOMEC - Réf. : 875 518 B-GB...
- Page 9 (Net) or press for 3 seconds on PROG to quit pro- gramming. TECHNICAL CHARACTERISTICS ANALOG OUTPUTS Load resistance 0 to 600 Ohms Response time 1 sec Galvanic insulation 2.5 kV Accuracy (full scale) 0.5 % SOCOMEC - Réf. : 875 518 B-GB...
- Page 10 R.C. Strasbourg 5484500 149 B SOCOMEC BP 10 - Rue de Westhouse 95, rue Pierre grange This document is not contractual. SOCOMEC reserves the F-67235 Benfeld cedex F-94132 Fontenay-sous-Bois Cedex right to modify features without prior notice in view of con- Tel.
