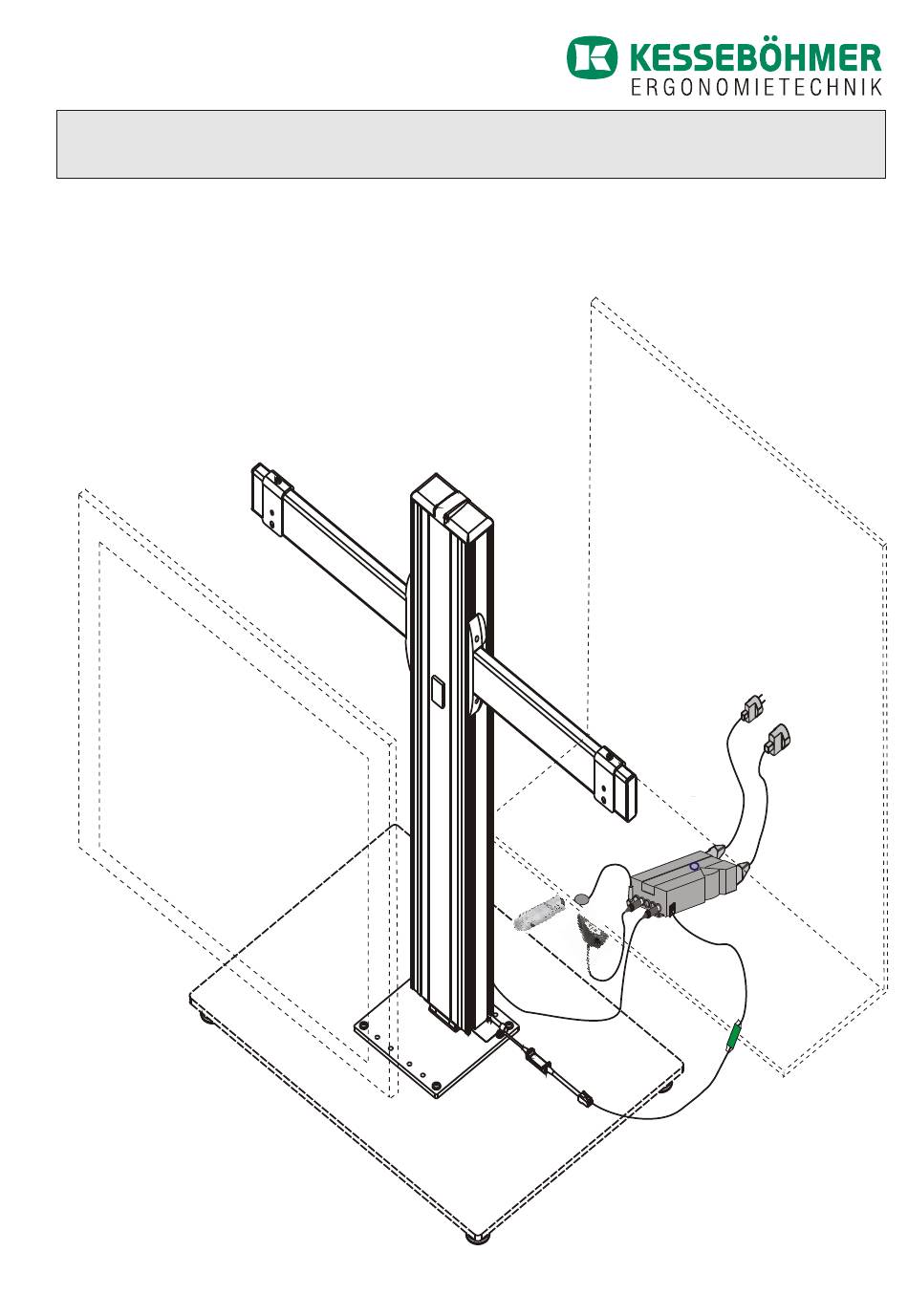

- Page 1 Montageanleitung · Assembly Instructions ScreenMotion Basic 680 / 720 / 870 889012120 0000 Seite 1 von 27 15.06.2009...
- Page 2 Foreword Dear customer, In choosing a ScreenMotion Basic model, you have decided to acquire a technically advanced and powerful motor-driven guide column. Your ScreenMotion Basic has been manufactured inhouse with the utmost care and precision and has passed numerous quality and safety checks to ensure trouble-free and safe operation. You can significantly contribute to your long-term satisfaction with your ScreenMotion Basic model.
- Page 3 Important notice for Start-up operation - The socket for connection with the mains must be installed by a licensed electrician in order to avoid any hazard to persons or objects. - Make sure that the socket is accessible at all times. - The assembly site should be dry, dust-free and not in direct sunlight.
- Page 4 Versions SME for installation in furniture A minimum all-round distance of 25 mm between built-in screen and furniture or other structural objects must be maintained. After initial operation adjust the screen support by means of the fastening screws (1) and ensure that it runs parallel to the furniture.
- Page 5 Free-standing SME with ground plate Should the ground plate 700x500 mm, which is available as an accessory, not be used, a plate of the same size having a minimum weight of 22 kg must be mounted. Attention: Set screws must be adjusted on a plane surface. Item no for the ground plate: 889010903 Danger of collision In the bottommost 25 mm...
- Page 6 Mounting of support arm Fasten fleece tape over the guide column. Accessories Glue piece of felt onto the column. fleece tape piece of felt Insert support arms into the grooves. Affix the support arms by means of the M6x16 M6x16 4 M6x16 screws and the SW4 allen key to the desired height.
- Page 7 Affix screen support adjust M5x10 M6x12 adjust Screw together screen support and place/hang on the arms. Adjust screen supports with M5x10 and screw driver. Tightly screw down M6x12 at the supporting arms. Attention: Optional mounting to ground plate M6x25 Mount base plate with 4 M6x25 screws to the ground plate as shown in the illustration.
-
Page 8: Connecting The Control Unit
Connecting the control unit 889012120 0000 Page 21 of 27... - Page 9 Jack for guide column ScreenMotion SME Basic 680 / 720 / 870 Jack without function Jack for tabletop handset TMU 10 Jack for IR receiver SME Jack for safety sensor Jack for outlet (socket) with IEC connector Jack for mains plug Control unit SME IR Remote control (up/down) Handset TMU 10 (up/down)
-
Page 10: Insert Battery
Connection assembly A: Connect the column. C: Connect the handset TMU 10. D: Connect the IR receiver. E: Connect the safety sensor. F: Connect the TV set to the live outlet (socket). There after plug the (conpling) connector into the control unit (panel). - Page 11 Standard drive technology - please use infrared remote control Press and hold the “Up” key to extend the SME. In order to retract the SME, press and hold the “Down” key. The fitting can be moved from the bottom position (home position) to the topmost lifting position.
-
Page 12: Auto- Memory- Function
Auto- Memory- Function This function allows an automatic movement from the top and bottom position of your TV set. By pressing the arrow keys “Down” and “Up” twice the bottom height and the topmost adjusted lifting position can be reached. Up Down The Auto Memory Function may only be used in combination with an elevation protection sensor. -
Page 13: Troubleshooting
Troubleshooting 1. Remote control does not work; General check - Red LED on the infrared remote control does not light up while a key is pressed? Check if battery has been inserted correctly, otherwise you may have to replace the battery! If the LED does not light up after battery has been replaced, the remote control is defective. - Page 14 5. Return movement The fitting stops and moves some mm in the opposite direction. This happens when the elevation protection is activated. Possible reasons: o Cable is too short o Screen sways o Object is in the way Function of safety sensor •...
