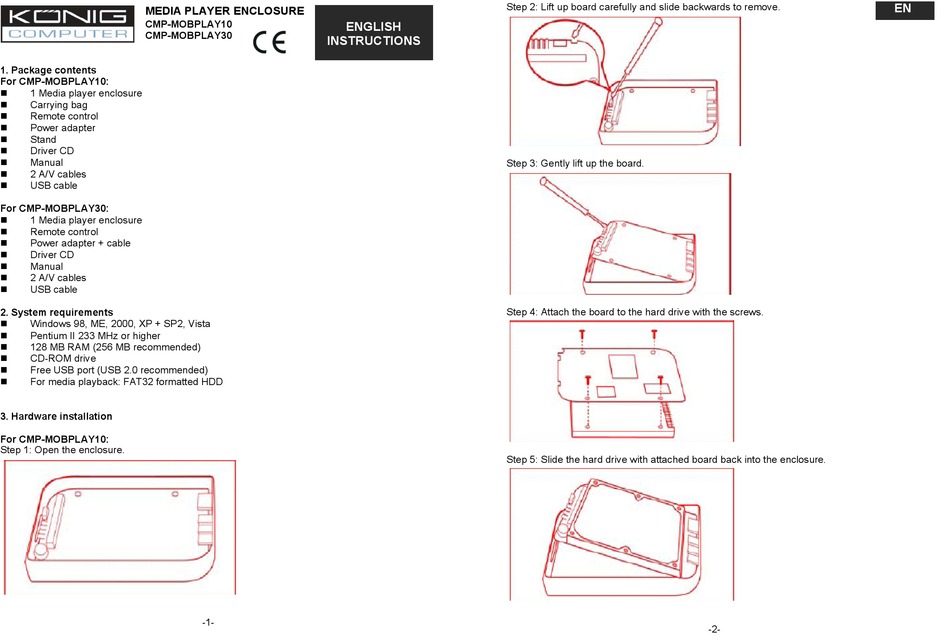

MEDIA PLAYER ENCLOSURE
CMP-MOBPLAY10
CMP-MOBPLAY30
1. Package contents
For CMP-MOBPLAY10:
1 Media player enclosure
Carrying bag
Remote control
Power adapter
Stand
Driver CD
Manual
2 A/V cables
USB cable
For CMP-MOBPLAY30:
1 Media player enclosure
Remote control
Power adapter + cable
Driver CD
Manual
2 A/V cables
USB cable
2. System requirements
Windows 98, ME, 2000, XP + SP2, Vista
Pentium II 233 MHz or higher
128 MB RAM (256 MB recommended)
CD-ROM drive
Free USB port (USB 2.0 recommended)
For media playback: FAT32 formatted HDD
3. Hardware installation
For CMP-MOBPLAY10:
Step 1: Open the enclosure.
ENGLISH
INSTRUCTIONS
-1-
Step 2: Lift up board carefully and slide backwards to remove.
Step 3: Gently lift up the board.
Step 4: Attach the board to the hard drive with the screws.
Step 5: Slide the hard drive with attached board back into the enclosure.
-2-
EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the CMP-MOBPLAY10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Konig CMP-MOBPLAY10

  • Page 1 Step 2: Lift up board carefully and slide backwards to remove. MEDIA PLAYER ENCLOSURE CMP-MOBPLAY10 ENGLISH CMP-MOBPLAY30 INSTRUCTIONS 1. Package contents For CMP-MOBPLAY10:  1 Media player enclosure  Carrying bag  Remote control  Power adapter  Stand ...
  • Page 2 Close up the enclosure with two screws on each side of the back plate. 4. Connections For CMP-MOBPLAY30: For CMP-MOBPLAY10: Step 1: Open the enclosure by unscrewing the back panel and pulling out the board. The enclosure has the following connections and buttons:...
  • Page 3 5. Remote control functions For CMP-MOBPLAY30: The remote control has the following functions for CMP-MOBPLAY10: Button Function Button Function Takes you to play or execute the current selection. PLAY Takes you to play or execute the current selection. Direction button to move cursor on the screen.
  • Page 4 6. Set up and use the player 6.5 Other setup functions When you start the media player and connect it to the TV, then you can adjust the TV settings In the PREFERENCE page, you can also set OSD LANG (On Screen Display language) and in the set up main page.
  • Page 5 Safety precautions: To reduce risk of electric shock, this product should ONLY be opened by an authorized technician if service is required. Disconnect the product from mains and other equipment if a problem should occur. Warranty: No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.
