Oven Door Parts - Whirlpool RS696PXGB10 Parts Manual

Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 4455618 Door Liner
2 Hinge, Door
8300571 R.Side
8300572 L.Side
4449743 Screw
3 4449259 Glass, Inner

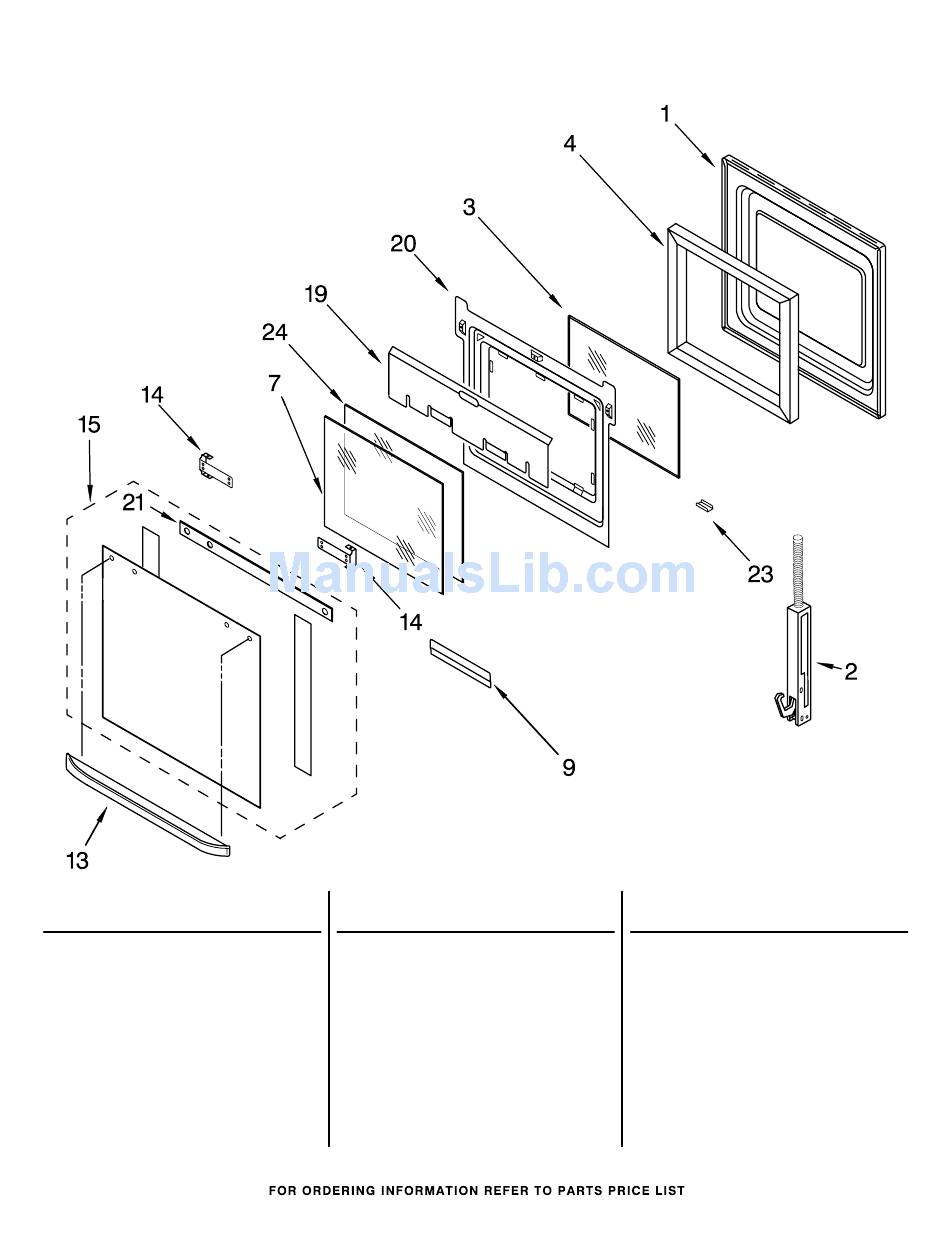

OVEN DOOR PARTS

For Models:RS696PXGB10, RS696PXGQ10
(Black)
Illus. Part
No. No. DESCRIPTION
4 4451722 Insulation, Door
7 8300974 Glass, Inner
9 4451668 Retainer, Glass
4449809 Screw
13 Door Handle
4448854 Black Model
4448855 White Model
14 4450813 Bracket, Handle
4451040 Screw
15 Assy, Door Glass
4452065 Black Model
4452066 White Model
6
(Designer White)
Illus.
No.
19 4450362 Shield, Heat
4449809 Screw
20 8300778 Retainer, Glass
4449809 Screw
21 8300820 Seal, Door Top
23
4450863 Black Model
4450864 White Model
3400832 Screw
24 4449263 Glass, Inner
Part
No. DESCRIPTION
Retainer, Clip
8185985
