Summary of Contents for AquaMAX Promax 30 Supaflush

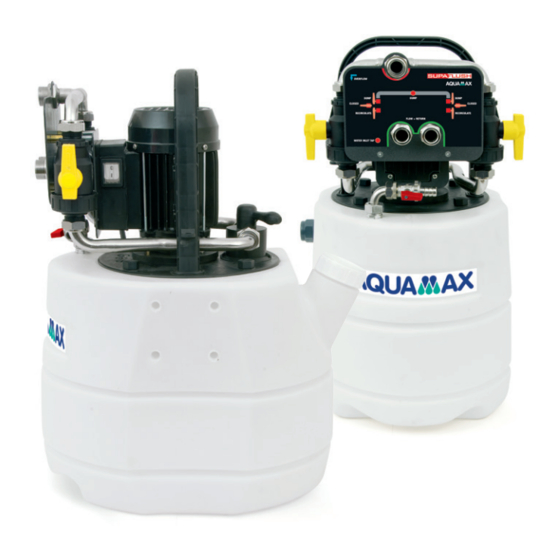

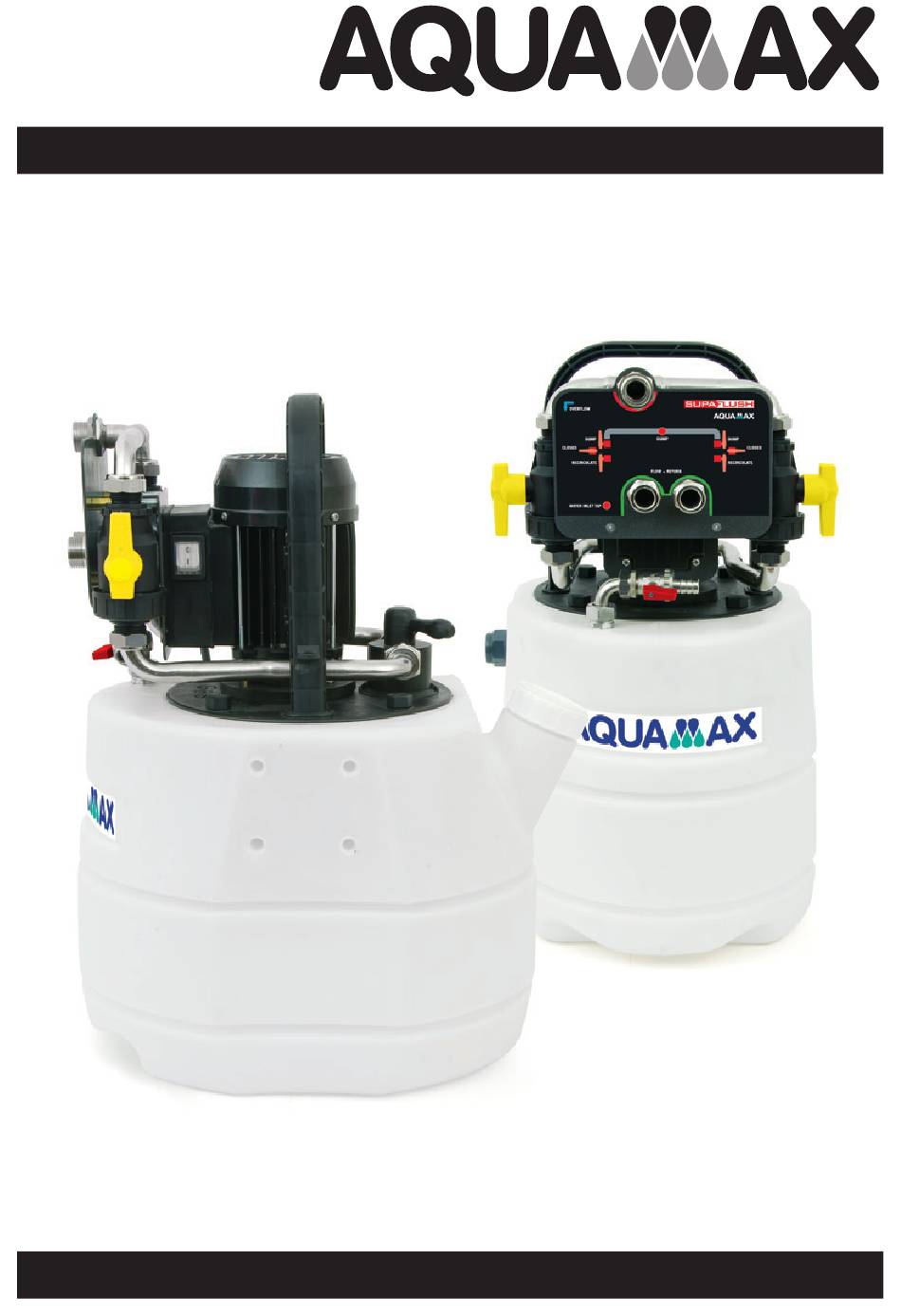

- Page 1 SUPAFLUSH User Manual & Instructions...
- Page 2 DIAGRAMMATIC PARTS LIST...
- Page 3 DIAGRAMMATIC PARTS LIST 1 Metal chassis Brass 3/4” niples with o-ring 2 Spacers 10 Protecting metal plate 3 Dump-T-tube with 3/4” swivels 11 Screws for protecting metal 4 Right connecting tube with swivels plate 5 Left connecting tube with swivels 12 Fixing nut for dump-T-tube 6 3 ways valve 13 3/4”...
- Page 4 PREPARATION Initially start the heating system to ascertain the problem ares. Once estabilished switch the heatig system off. Open all restrictive radiator & zone valves. Turn off the cold feed to the expansion tank and drain the tank sufflienty to loop together the feed &...
- Page 5 All debris will now be flushed through the filter cleaning the coil and draining off via the drain valve. When all the debris is removed then reverse the cleaning procedure, ensuring that the dump valve is closed and the magnet reinserted into its position. Ensure that all dirty water dumped in the procedure is replaced with clean.
- Page 6 THE INITIAL FLUSH AND OPERATION NOTE: - If the pump was used to drain the expansion tank/system, first remove the dirty water prior to replenishing the tank approx 1/3rd with cold clean water via the inlet tap as previously mentioned. With the system drained and the tank approx 1/3 rd full off clean water the system is now ready for the initial flush.
- Page 7 DUMP VALVES Both flow and return pipes are fitted with single - 3 position valves. IE:- Dump - Closed - Recirculate Each position for each valve lever is clearly indicated on the protection plate: DUMP VERTICAL UPWARD CLOSED HORIZONTAL RECIRCULATE VERTICAL DOWNWARD This system allows dirty water to be expelled when flowing in either direction.
- Page 8 SUPAFLUSH PUMP Via Barca, sn - 60025 Loreto (An) Italy Tel. 071/780064 Fax 071/780264 www.aquamax.it - info@aquamax.it...
