Summary of Contents for Excelltel PH202
-
Page 2: Table Of Contents
7) Restore the holding call .................. 11 8) Multi-party Conference ................... 11 9) Function Key（for PH202) ................11 10) Alarm Clock Setting（for PH202) ..............12 11) Call Forwarding(for PH202) ................. 12 12) Boss/Secretary(for PH202) ................12 13) DND Key(for PH202) ..................12 14) Paging ...................... -
Page 3: Chap 1 Specification
Chap 1 Specification 1．Wiring Length : Please use twisted pair (TP) upon CAT5. (The length of connecting 1 key phone should be < 250m ; Connecting 2 key phones should be <150m ; Connecting 4 key phones should be <50m . 2．Working Current : less than 100mA 3．Environment humidity: 10%~95%, noncondensing 4．Weight : 0.8kg... -
Page 4: Chap 2 Panel Illustration

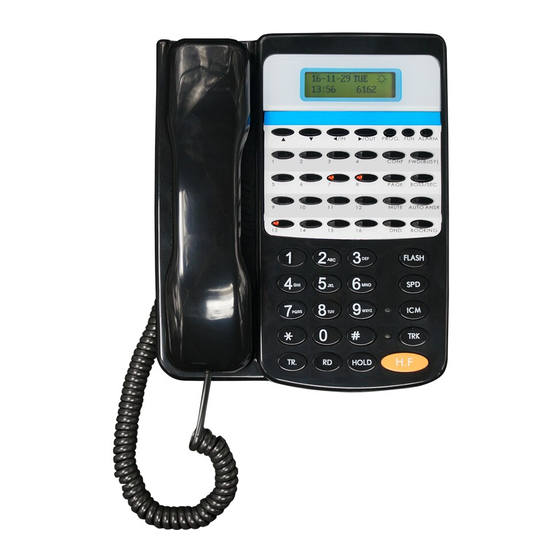

2.1. Shortcut key Definition for PH202 (PH202 Outlook) DSS: Direct Station Selection keys, PH202 with 16 DSS keys, on default, DSS1 -12 corresponding to CO line 1-12, DSS 13-16 corresponding to Ext port 1-4. On hook status, press DSS key, to call corresponding extension or access corresponding CO line. - Page 5 CONF: During the call with CO line, press this key to hold this call as conference status FWD(BUSY): when extension is busy, forward the incoming call to another extension, press this key, input extension number, prompt “operation succeed”, meanwhile the indicator is on. Press again this key, input #, to cancel this setting. PAGE: press this key + (0, broadcast by extension / 8, call all extension) BOSS/SEC: auto forward the incoming call to another extension MUTE: press this key, the microphone of key phone is closed, the light of...
- Page 6 2.2. Shortcut key Definition for PH201-D (PH201-D Outlook) 1. PROGRAM ---Enter using setup, system program setup, DSS key setup, and auto-dial number setup status. 2. FWD/DND(red light) ----FWD: Forward the call to different EXT; DND(Do-not-disturb)function can be used to restrict call when you are busy. 3.
- Page 7 4. BROAD ---- For external broadcasting system and key phone system, including paging and monitoring function. 5. REDIAL ---- For CO line redial. 6. RECALL/ FLASH ---- For incoming calls recalling; or flash operation during conversation. 7. AUTO ANS / MUTE (red light) ----Enable the auto answer mode; press to mute the microphone in talking mode.
- Page 8 2.3 LCD Display...
-
Page 9: Chap 3 Installation
Chap 3 Installation Attention!!!: When customer need to lengthen(extend) the cable or make a 4 wire cable by himself, he should be attention to the correct wire sequence of cable: the two wires on middle(wire 2,3) are for voice transmission. wire 1,4 are for power supply. - Page 10 I f c u s t o m e r u s e 4 w i r e s t e l e p h o n e c o r d t o m a k e t h e c a b l e , p r o b a b l y w i l l c a u s e n o i s e p r o b l e m d u r i n g c a l l c o n v e r s a t i o n .
-
Page 11: Chap 4 Using Guide
Chap 4 Using Guide 1) Intercom Call ① o ff h o o k + E xt . N o + t a l k i n g ② d i a l D S S k e y d i r e c t l y ③... -
Page 12: Speed Dial
D u r i n g t h e c o n ve r s a t i o n wi t h C O l i n e , a f t e r p r e s s t h e key ,system will enter in conference status. 9) Function Key（for PH202) + programming code Function key means your dial *# . -
Page 13: Alarm Clock Setting（For Ph202)
+01 ( time setting code ) +123030(time) 10) Alarm Clock Setting（for PH202) + time 11) Call Forwarding(for PH202) When Ext is busy or no answer : + Ext.number Cancel : Noted : Press this key, and dial the Extension number , it will display “ operation OK”,and the LED will be on . -
Page 14: Paging
1. Set Call Forward: +1 + Ext. Number(or corresponding DSS key) (red light slow flash) Cancel Call Forward: +1 + # (red light off) 2. Set busy/no answer forward: + 2 + Ext. Number(or corresponding DSS key) (red light quick flash) Cancel busy/no answer forward: + 2 + # (red light off) 3. -
Page 15: Auto Answer（For Ph202)
15) Auto Answer（for PH202) Auto Answer : the LED will be on Cancel : the LED will be off 16) Mute Key (for PH202) Mute : the LED will be on Cancel: the LED will be off 17) Call Booking（for PH202) -
Page 16: Chap 5 Using Setting
Chap 5 Using Setting Press one time, then system will enter USING SETTING status. LCD shows as follow ： User Set Language to select the items .Like “Language”, 1）You can press the key “Backlight Setting”, “Ext Ring”, “CO.Ring”, “Door phone Ring”, “Alarm Ring”, “System Query “... - Page 17 ◆ Step 3：Press one time. Show as below : Reset Keyphone Input 16 and press , then you will hear beep and it means save successfully . The Option of User Setting and its suboption as below: 1）Language Option: Chinese / English / Italiano /TURKISH 2）Backlight Setting Option : Auto / On / Off 3）Ext Ring...
-
Page 18: Chap 6 Dss Setting
Chap 6 DSS Setting Take an example for how to set DSS12 to Ext. Port 008 ◆ Step 1 : Press three times and enter DSS status . Show as below 001 TRU 01 Remark : 001, it means the number of the DSS button (001 means it is the first DSS button) . -
Page 19: Chap 7 Speed Dialing
Chap 7 Speed Dialing Pressing 4 times , and show as below . Speed Dial Pressing to select the group number of speed dialing . It is range from 01 to 32 . Or it can dial the two digit group number . After selecting the group number , then press to input the number you want. -
Page 20: Chap 8 How To Set Multiple Dss To Connect With Key Phone
Chap 8 How to set multiple DSS to connect with key phone 1） Setting a DSS to No.2 DSS . Programming as below ① Connect key phone with PBX ② Always-press the second button of No.DSS ③ At the same time, remove the cable between No.1 DSS and key phone then connect again .
