INSTRUCTION SHEET: HOW TO REPLACE SWIVEL PLATE SET
ON 77‐SERIES SWIVEL SLIDING BENCHES

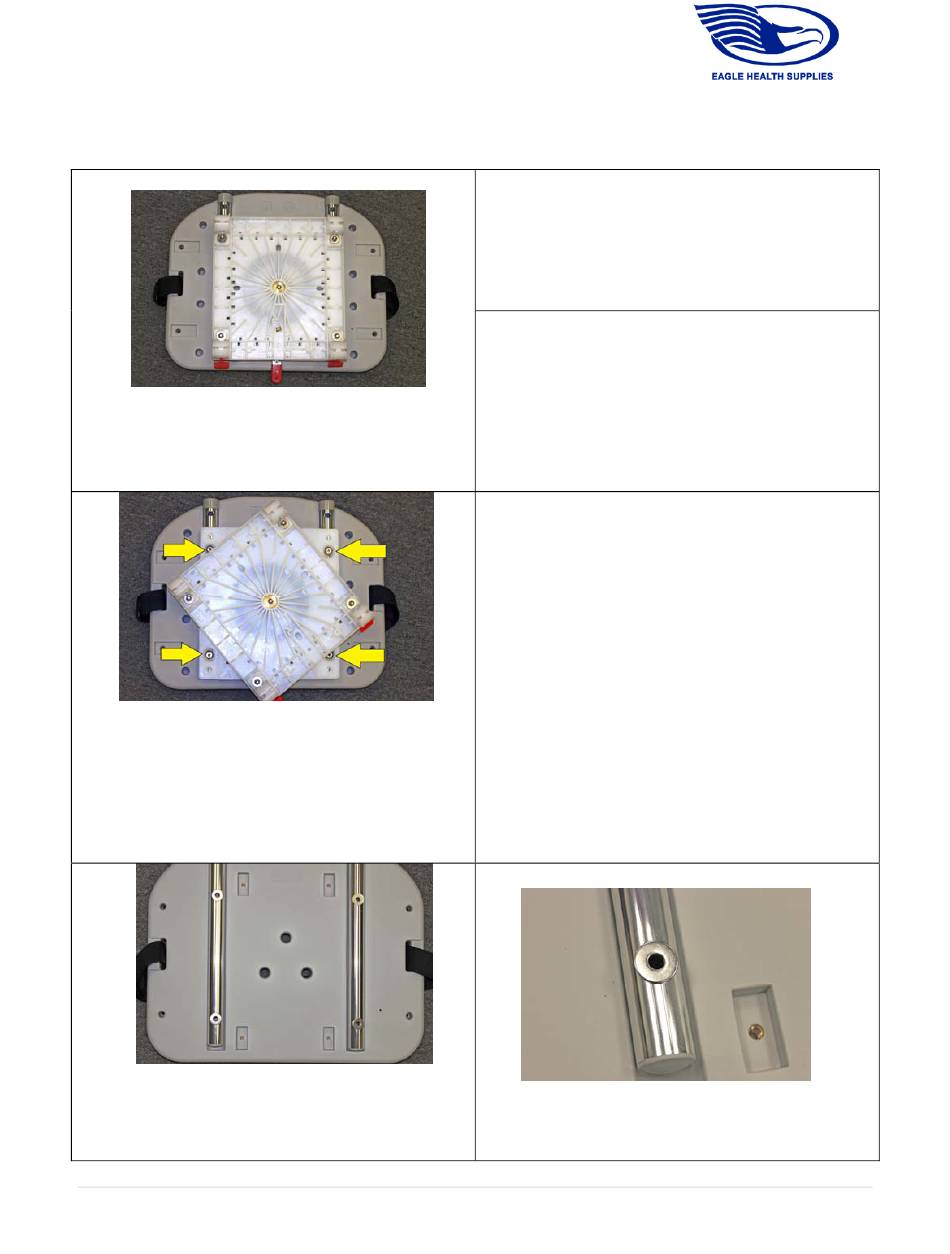

1) Flip the seat (with swivel plate) upside‐
down so the underside of the swivel plate
is facing upwards.
4) Press the red swivel‐release lever to
unlock the swivel plate, and rotate the
swivel plate 45 degrees, exposing the
screws which attach the swivel plate to the
seat.
6) Remove the old swivel plate from the seat.
Please leave the two metal tubes and four
flat washers with the seat.
2) The side of the seat with the middle, red
swivel‐release lever is the front of the seat.
Rotate the whole seat set so the red
swivel‐release lever is facing you.
3) Use tape to secure the two red tabs of the
sliding rings to the white sliding rings so
the red tabs are positioned furthest away
from the gray seat.
5) Unscrew the four screws attaching the
swivel plate to the seat (see arrows in
photo left), and remove the four screws
and four cup washers. Please keep the
screws and cup washers to re‐attach the
replacement swivel plate to the seat.
7) Make sure the four flat washers are placed
on the four screw holes of the metal tubes.
1 |
P a g e
Advertisement
Table of Contents
Related Manuals for Eagle Health Supplies 77 Series
Summary of Contents for Eagle Health Supplies 77 Series
- Page 1 INSTRUCTION SHEET: HOW TO REPLACE SWIVEL PLATE SET ON 77‐SERIES SWIVEL SLIDING BENCHES 2) The side of the seat with the middle, red swivel‐release lever is the front of the seat. Rotate the whole seat set so the red swivel‐release lever is facing you. 3) Use tape to secure the two red tabs of the sliding rings to the white sliding rings so 1) Flip the seat (with swivel plate) upside‐ the red tabs are positioned furthest away down so the underside of the swivel plate from the gray seat. is facing upwards. 5) Unscrew the four screws attaching the swivel plate to the seat (see arrows in photo left), and remove the four screws and four cup washers. Please keep the screws and cup washers to re‐attach the 4) Press the red swivel‐release lever to replacement swivel plate to the seat. unlock the swivel plate, and rotate the swivel plate 45 degrees, exposing the screws which attach the swivel plate to the seat. 6) Remove the old swivel plate from the seat. Please leave the two metal tubes and four 7) Make sure the four flat washers are placed flat washers with the seat. on the four screw holes of the metal tubes. 1 | ...
- Page 2 9) Use tape to secure the two red tabs of the sliding rings to the white sliding rings so the red tabs are positioned furthest away from the gray seat. 8) Place the replacement swivel plate on top of the seat/metal tubes with the sliding rings facing upwards. Make sure the middle, red swivel‐release lever is facing towards the front of the seat. 11) Line up the oblong screw holes of the swivel plate with the holes of the seat and metal tubes. (see arrows in photo left) 10) Press the red swivel‐release lever to unlock the swivel plate, and rotate bottom half of the swivel plate (the half that is currently facing upwards) 45 degrees, exposing the screw holes. 12) Re‐attach the swivel plate to the seat using four screws and the four cup washers. 13) Rotate the swivel plate 45 degrees back to Make sure to use the oblong screw holes the proper locked position. The and not the round screw holes nearest to replacement is now complete. the edges. 2 | P a g e ...
