Summary of Contents for Co2meter IAQ MAX
-
Page 2: Table Of Contents
Table of Contents Product Overview............3 Device Features.............3 Considerations...............3 Product Specifications/Content........4 Start Up Instructions............5 ...........6 CO2 Table Display............7 Settings Display............8 Charging...............9 Calibration..............9 Data Logging Setup............10 Data Log Download Procedure......10-12 Maintenance/Support..........13 Contact Us..............13... -
Page 3: Product Overview

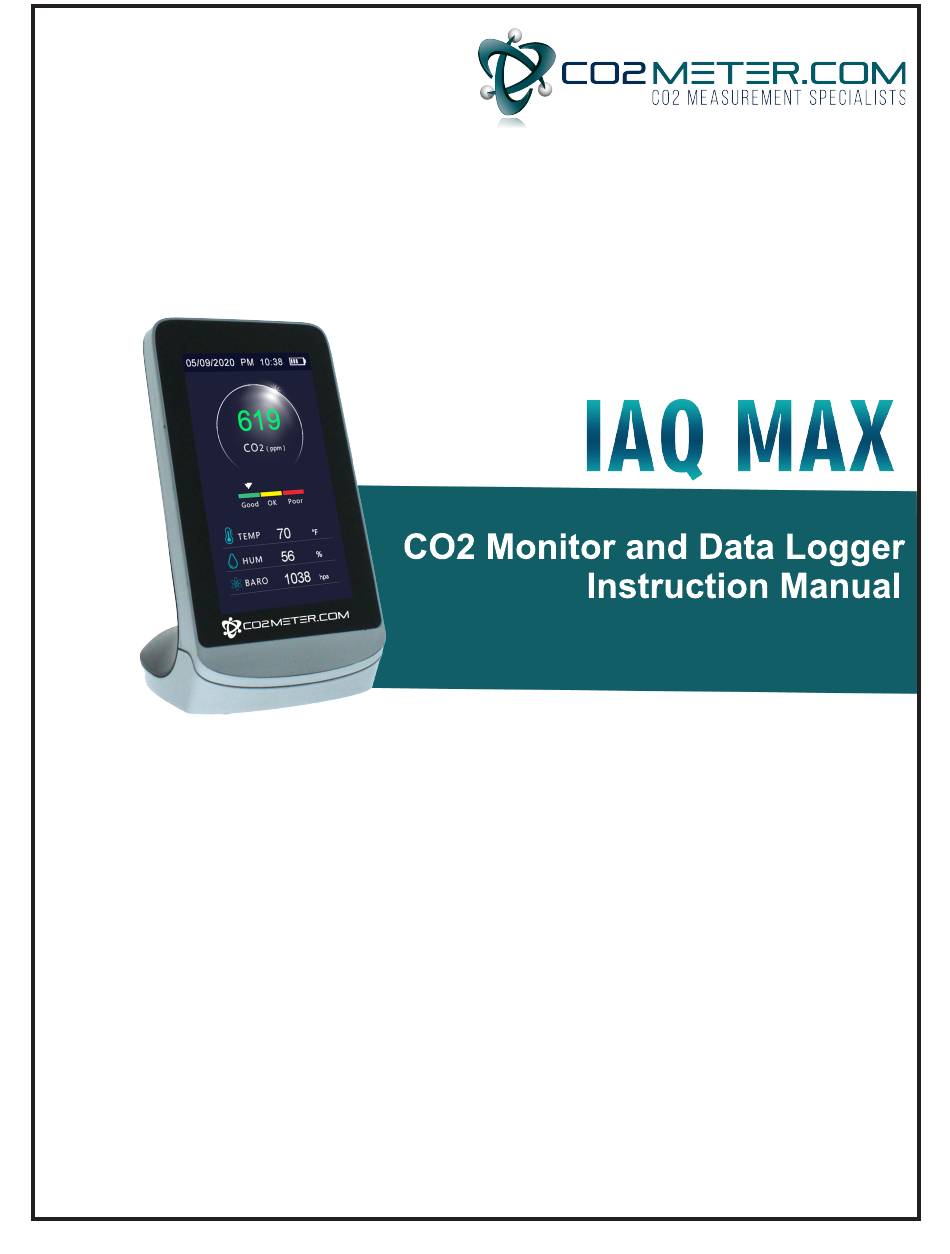

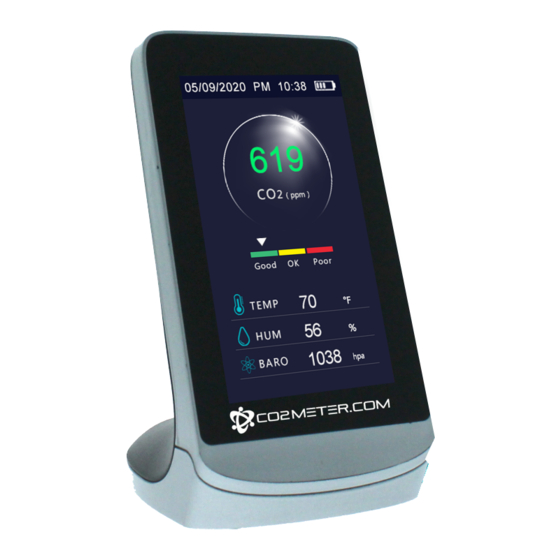

1. Product Overview IAQ MAX CO2 Monitor and Data Logger is designed to detect ambient Carbon Dioxide (CO2),Temperature (TEMP), Humidity (HUM) and Barometric Pressure (BARO) by enhanced sensing technologies and precise monitoring; all from a sleek, modern, digital LCD display. -
Page 4: Product Specifications/Content
Power source: Lithium battery with 3000 mAh capacity Battery Life: 5 hours 5V DC power charging via micro USB port Product Size: 5.7 x 3 x 3.8 in Product Weight: 0.46 lbs. 5. Product Content -IAQ MAX CO2 Monitor and Data Logger -USB Cable -Instruction Manual... -
Page 5: Instructions
Instructions When you hold down the center power button the air IAQ MAX quality monitor will boot up. The detector will proceed through its warm-up sequence for about 3 minutes to allow sensors to settle in fresh ambient air. This is necessary for accurate and precise results. - Page 6 7. Home Screen Display 1) Carbon Dioxide ( CO2) display area, and 3-color code indication showing the current CO2 level. 2) Temperature (TEMP) display area, showing the current temperature level. 3) Humidity (HUM) display area, showing the current humidity level. 4) Barometric Pressure (BARO) display area, showing the current air pressure level.
-
Page 7: Co2 Table Display
The table updates on a 10 minute interval. In order to download a comprehensive data set for further analysis, see section 13 - Data Log Download Procedure. Visit us at, CO2Meter.com/pages/ downloads to download the free Gaslab Data Logging Software Setup file to your Windows PC. -
Page 8: Settings Display
9. Settings Display SET UP MENU DATE- User set date TIME- User set time UNIT- Choose °F or °C for Temperature INVL- Data logging interval selection. 1 min, 5 min, 10 min, 30 min, 60 min CAL- (on/off) User has the ability to turn the auto calibration on/off TEMP –... -
Page 9: Charging
500mA, as this will provide a much slower charge. 11. Calibration IAQ MAX has two different CO2 calibration methods. Auto Calibration - calibrated using ambient air. Ensure the CAL is "on" in the setup menu. -
Page 10: Data Logging Setup
2. Plug in the IAQ-MAX to the PC with provided USB cable and ensure connection 3. Open the GasLab Data Logging Software and select the IAQ Max Product, or IAQ Series and MAX Model from the GasLab Software drop downs, under "Sensor Select" and Click CONNECT... - Page 11 13. Data Log Download Procedure Continued 4. Click on "Configure Sensor" 5. Click on "Download Datalog", Name and Save the File appropriately and Press "OK" when prompted...
- Page 12 13. Data Log Download Procedure Continued 6. Finally, View real-time data analysis 7. Locate and open your saved file for further analysis. This is an example below of the exported data set.
-
Page 13: Maintenance/Support
To ensure maximum benefit from this product, please observe the following guidelines: 1. Repair - Do attempt to repair or modify the device in any way. Please contact a CO2Meter specialist directly if the product needs servicing, including replacement or technical service. 2. Cleaning - Do...
