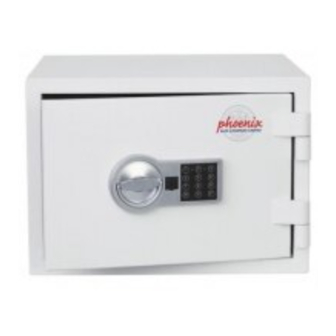

Phoenix SS1190E Citadel Instructions

1
4
7
ON

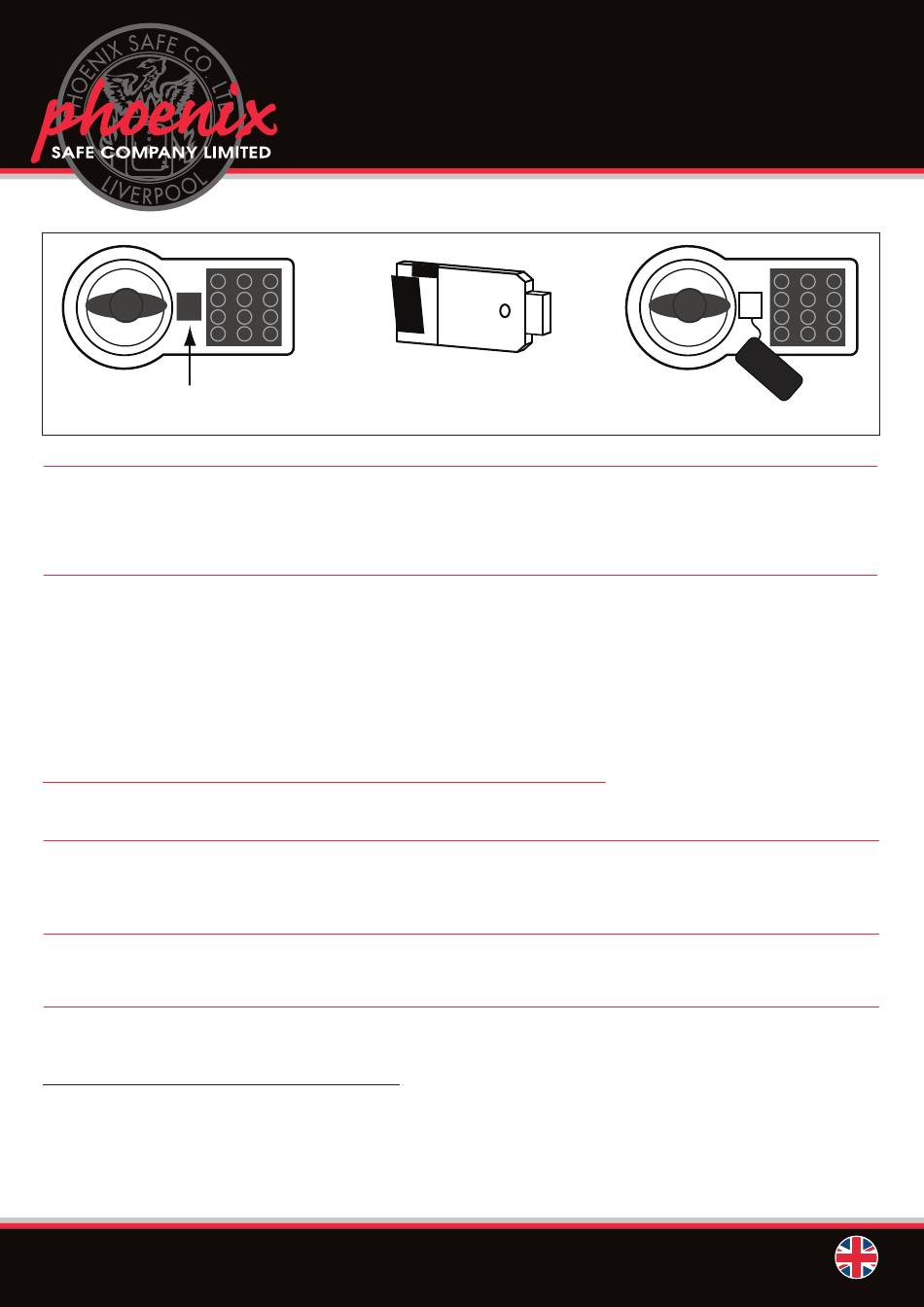

Figure 1. Appearance

1. Lock opening

a) To switch on the lock power supply, press button <<ON>>.
b) The lock is set on the factory default code of 1,2,3,4,5,6.
c) Enter the default code (1,2,3,4,5,6) the correct code is confirmed by the flashing green LED.

2. Change of Code Combination

The new code combination should be entered with the lock and safe door in the open postion.
a) Open the lock with the valid primary code (see 1.);
Press <<ON>>;
Press button <<P>>.
Enter valid code 1-2-3-4-5-6 or former user code (if the green LED is illuminated continuously, the operation is correct completed);
Enter new 6-digit code X-X-X-X-X-X (if after entering the green LED is illuminated continuously and acoustic signal sounds twice,
the operation is correct).
Repeat the procedure again: Enter the new 6-digit code X-X-X-X-X-X (if after entering the green LED is illuminated continuously and
acoustic signal sounds twice, the operation is correct ) and the new code is set.With the door in the open position test the new 6-digit
X-X-X-X-X-X again (if after entering the green LED flashes once, the operation is completed). The door can be opened.
It is recommended to record the new code combination and to safely store it outside the safe.

3. Lock blocking

If the code is entered incorrectly the red LED flashes 3 times. After 3 incorrect entries the lock goes into a two minute blocked status. The period
in which the lock is blocked is extended to 4,8 and a maximum of 16 digits every time an incorrect code is entered.

4. Locking

Turn the bar handle counter clockwise in "close"-position until stop reached. The lock is blocked (bar handle is in horizontal position).

5. Power Supply / Changing the batteries

Low voltage is indicated, if the red LED flashes 10 times after opening. Please change the battery immediately. Open the safe, lift out the battery
cover on the inner side of the door (figure 2.) insert the new 9v battery;
Code combination remains saved even if battery is discharged
If the battery is not charged and the lock is not receiving sufficient power to open, a new battery can be connected by an external supply clip.
The supply clip is located on the control panel under the logo sticker KABA * (Figure 3).
3
2
5 6
8
9
0 P
SS1190E Citadel Instructions
Figure 2.
1 3
2
4 5 6
8
7 9
0 P
ON
Figure 3. Battery outer connection
