Fitness Reality X-Class 310 Owner's Manual

Upright bike with goal setting workout programs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

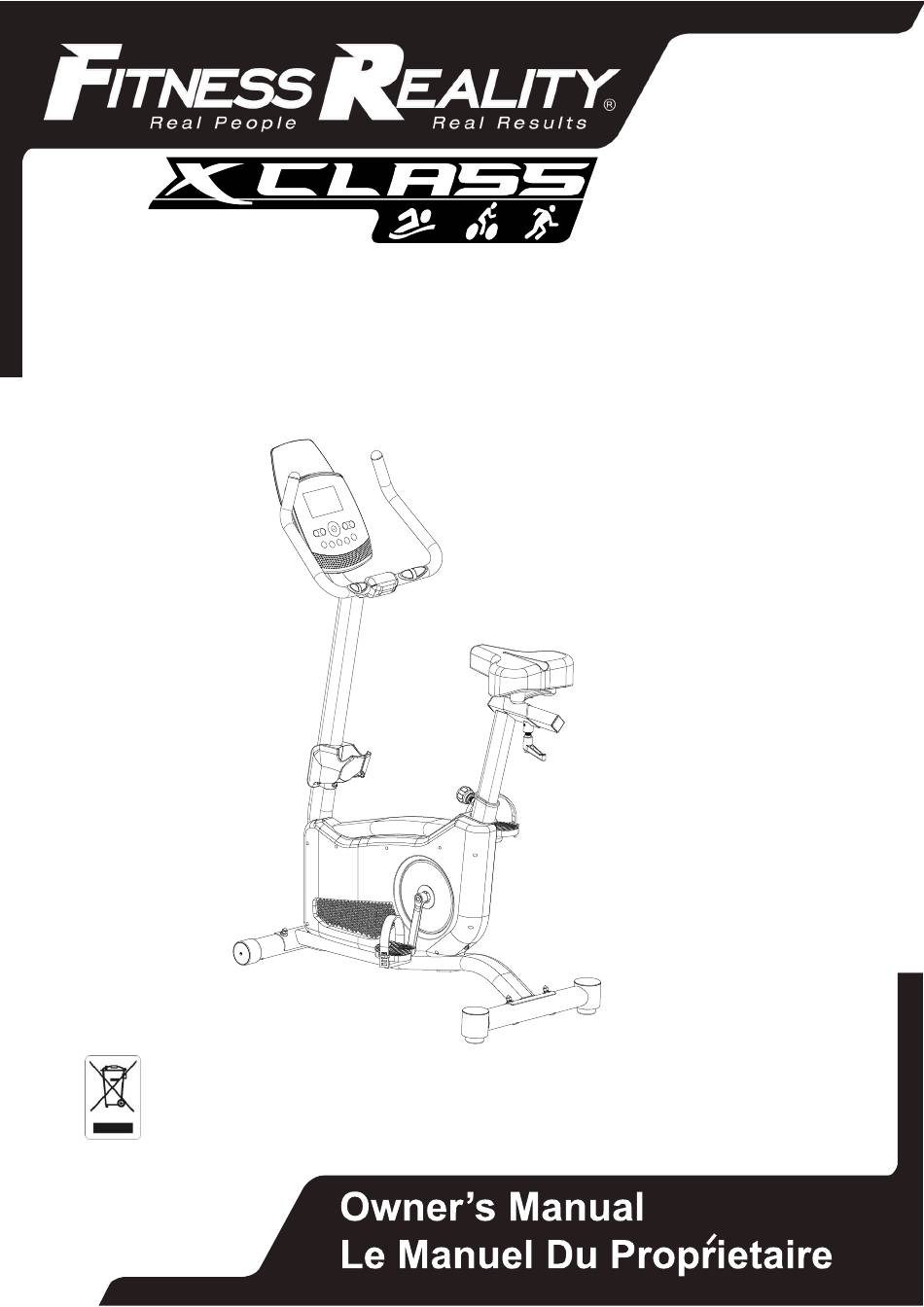

310 X-Class Smart Technology Upright
Bike with Goal Setting Workout Programs
IMPORTANT: Read instructions carefully before using this product.
Retain this owner's manual for future reference.
The specifications of this product may vary from this photo, subject to
change without notice.
2140.1-072117

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-Class 310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fitness Reality X-Class 310

Summary of Contents for Fitness Reality X-Class 310

  • Page 1 310 X-Class Smart Technology Upright Bike with Goal Setting Workout Programs IMPORTANT: Read instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo, subject to change without notice. 2140.1-072117...
  • Page 2 PLEASE DO NOT RETURN THIS PRODUCT TO THE STORE. STOP. Contact customer service if you have any questions regarding assembly or proper operation of the machine. Email us at: Service@paradigmhw.com Or call us at: 1-844-641-7920 Hours: 8:00 am to 5:00 pm (PST) Daily...

  • Page 3: Table Of Contents

    TABLE OF CONTENT SERVICE ------------------------------------------------------------------------ 2 LABEL PLACEMENT --------------------------------------------------------- 3 IMPORTANT SAFETY GUIDELINES ------------------------------------- 4 OVERVIEW DRAWING ---------------------------------------------------- PARTS LIST --------------------------------------------------------------------- 7 HARDWARE & TOOL LIST ----------------------------------------------- ASSEMBLY -------------------------------------------------------------------- COMPUTER CONSOLE --------------------------------------------------- ADJUSTMENTS --------------------------------------------------------------- 22 TROUBLESHOOTING ------------------------------------------------------- 23 TRANSPORTATION & STORAGE --------------------------------------- WARRANTY -------------------------------------------------------------------- PARTS REQUEST FORM---------------------------------------------------...

  • Page 4: Service

    SERVICE IMPORTANT: FOR NORTH AMERICA ONLY For damaged or defective product, questions, replacement parts or any other service support, please contact our customer service department by the below methods: For The Best Service, please Email: service@paradigmhw.com Response Time: 1-2 Business Days Emailing us with the information above will be the best method to receive a response during peak business hours Website:...

  • Page 5: Label Placement

    LABEL PLACEMENT...

  • Page 6: Important Safety Guidelines

    IMPORTANT SAFETY GUIDELINES Read all instructions before using the equipment. When using the equipment, basic precautions should always be followed. WARNING - To reduce the risk of injury to persons, read and under the following: Make sure your equipment is correctly assembled before you use it. Be sure all screws, nuts, and bolts are tightened prior to use.
  • Page 7 IMPORTANT SAFETY GUIDELINES Do not use this equipment if you have any of the following conditions or ailments: • Pregnancy • Extreme obesity • Middle ear infection • Hiatus hernia or Ventral hernia • Glaucoma, retinal detachment or conjunctivitis • Use of anticoagulants including Aspirin in high doses. •...

  • Page 8: Overview Drawing

    OVERVIEW DRAWING...

  • Page 9: Parts List

    PARTS LIST Description Description Main Frame Carriage Bolt M8*75 L25 Curve Washer Ф8*Ф20*2.0 Front Post Handlebar Cap Nut M8 S14 Seat Post Adjustable Pad M10*30 Seat Adjustment Bracket Power Supply Cable Front Stabilizer Adaptor Rear Stabilizer Thin Hex Nut 1/2" S15 Console Hex Nut M10*B5 Phillips Screw M5*10...
  • Page 10 PARTS LIST Description Description Self-Tapping Phillips Screw ST4.2*25 Lock Nut M8 Bearing Cup Φ17*1.0 Bushing Waved Washer Φ17*Φ21*0.3 Seat Post Protective Cover Bearing 6003-2Z Square End Cap Belt Pulley Hex Bolt M8*15 Stopper Ф18*18 Belt 440J Phillips Screw M6*15 Hex Socket Screw M6*8 Spring Washer Ф6 Self-Tapping Phillips Screw ST4.2*20 Foam Grip φ27*φ33*550...

  • Page 11: Hardware & Tool List

    HARDWARE & TOOL LIST...

  • Page 12: Assembly

    ASSEMBLY Tools: 6mm Allen Wrench 1PC Remove the Metal Tubes (B) from the Main Frame (1) by using 6mm Allen Wrench provided. Discard the metal tubes and any hardware that was attached at this point as they will not be used in the actual assembly.
  • Page 13 ASSEMBLY Tool: Fig. A Multi Hex Tool with Phillips Screwdriver Step 1 1a. Front Stabilizer Installation – Lift up the front of the Main Frame (1), and attach the Front Stabilizer (6) onto the front curve of the Main Frame (1) with two Carriage Bolts (30), two Curve Washers (31), two Spring Washers (14), and two Cap Nuts (32).
  • Page 14 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver Fig. B Step 2 2a. Installing the Pedal Straps: Install the Left Pedal Strap (25) onto the Left Pedal (24) and the Right Pedal Strap (27) onto the Right Pedal (26). See Fig. B. 2b.
  • Page 15 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver Step 3 3a. Installing the Seat Post: Attach the Knob (28) to the Seat Adjustment Bracket (5). Then slide the Seat Post (4) into the Main Frame (1) and secure it using the Round Knob (23). 3b.
  • Page 16 ASSEMBLY Tools: 6mm Allen Wrench 1PC Multi Hex Tool with Phillips Screwdriver Hardware Pack: (18) Self-Tapping Phillips Screw 3PCS (58) Self-Tapping Phillips Screw 2PCS MUST TIGHTEN IN SEQUENCE: A,B,C,D,E,F,G. Step 4 4a. Removing the Hardware: Remove seven Hex Bolts (89), seven Spring Washers (14), four Flat Washers (15) and three Curve Washers (22) from the Main Frame (1) using the 6mm Allen Wrench provided.
  • Page 17 ASSEMBLY Pre-Installed Hardware: (13) Hex Bolts 4PCS (14) Spring Washer 4PCS Tools: (15) Flat Washers 4PCS 6mm Allen Wrench Hardware Pack: Multi Hex Tool with Phillips Screwdriver (18) Self-Tapping Phillips Screw 4PCS Step 5 5a. Removing the Hardware: Remove four Hex Bolts (13), four Spring Washers (14) and four Flat Washers (15) from the Handlebar (3) using the 6mm Allen Wrench provided.
  • Page 18 ASSEMBLY Tool: Multi Hex Tool with Phillips Screwdriver Step 6 6a. Removing Hardware: Remove four Phillips Screws (9) from the back of the Console (8) using the Multi Hex Tool with Phillips Screwdriver provided. 6b. Connecting the Wires: Connect the Hand Pulse Extension Wire (10) and Console Extension Wire (11) from the Front Post (2) to the Upper Hand Pulse Wire (87) and Console Wire (88) from the Console (8).
  • Page 19 ASSEMBLY 7a. Plugging in the Machine – Check the specifications on the Adaptor (35) before plugging into an outlet. Connect the Adaptor (35) to the Power Supply Cable (34) on the rear of the Left Cover (56). Then plug the Adaptor (35) into a wall outlet.

  • Page 20: Computer Console

    COMPUTER CONSOLE Button Functions START： 1. Begin the desired exercise. 2. Resume exercise when paused. STOP： 1. While exercising, Press to pause. Press once more to terminate workout. 2. Hold for 3 seconds to reset the console. RETURN: 1. Return to the previous screen. UP ARROW：...
  • Page 21 COMPUTER CONSOLE GENERAL FUNCTIONS: Use the UP or DOWN buttons to navigate to the console options PROGRAMS or USERS then press OK to continue through each of the function's options. QUICK START: When the console first turns on you can enter a QUICK START work out by immediately pushing the START button at the main screen.
  • Page 22 COMPUTER CONSOLE CUSTOM: Customized Programs 1. Use the UP or DOWN buttons to navigate to the “PROGRAMS” selection, then press OK. 2. Use the UP or DOWN buttons to navigate to “CUSTOM”, then press OK to confirm the selection. 3. Press the UP or DOWN buttons to select between C1 or C2, then Press OK. Custom mode allows the user to create their very own Preset workout profile.
  • Page 23 COMPUTER CONSOLE Users: User Selection 1. Use the UP or DOWN buttons to navigate to the “USERS” selection, then press OK. 2. Use the UP or DOWN buttons to navigate to between User1 through User4 and press OK. 3. Use the UP or DOWN buttons to navigate to between the PROGRAM or EDIT USER functions and press OK.

  • Page 24: Adjustments

    ADJUSTMENTS The Seat Post (4) can be adjusted Up or Down. With one hand on the Seat Post (4) Turn the Round Knob (23) in a counter-clockwise position and PULL until the Seat Post (4) can be adjusted. Move the Seat Post (4) Up or down to a suitable position, then release the Round Knob (23).

  • Page 25: Troubleshooting

    TROUBLESHOOTING TROUBLE SHOOTING 1. PROBLEM: The Upright bike wobbles when in use. 1) SOLUTION: Turn the Adjustable Pads (33) on the Rear Stabilizer (7) as needed to level the upright bike. 2. PROBLEM: The display on the Console (8) does not turn on. 1) SOLUTION: Remove the Console (8) and verify that the wires from the Console (8) are properly connected to the wires of the Front Post (2).
  • Page 26 TROUBLESHOOTING Problem Potential Cause Correction 1. The motor is not activate Motor Problems Symptoms include an unusually loud noise coming from the Motor, which means the Gears are NOT meshing correctly. Try reversing the resistance and try again. If this fails then contact customer service.

  • Page 27: Transportation & Storage

    TRANSPORTATION & STORAGE Transporting the Bike Grasp the Handlebars (3) with both hands and tilt downwards until the wheels of the Front Stabilizer End Cap (86) make contact with the ground. Pull or Push the Bike to the desired storage area before gently lowering the Bike.

  • Page 28: Warranty

    WARRANTY MANUFACTURER’S LIMITED WARRANTY Paradigm Health & Wellness warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with Paradigm’s Owner’s Manual.

  • Page 29: Parts Request Form

    PARTS REQUEST FORM Paradigm Health & Wellness, Inc. EMAIL THIS FORM WITH YOUR RECEIPT OF PURCHASE TO Service@paradigmhw.com NAME:_____________________________________________________________________________________ ADDRESS:__________________________________________________________________________________ CITY:________________________ STATE:_____________ ZIP:_______________________________________ TELEPHONE: (Day)______________________________________________________________________ (Night)_____________________________________________________________________ SERIAL#:___________________________________________________________________________________ MODEL#:___________________________________________________________________________________ PURCHASE DATE:___________________________________________________________________________ PLACE OF PURCHASE:_______________________________________________________________________ PART # DESCRIPTION “YOUR ORDER WILL BE PROCESSED WITHIN 3 BUSINESS DAYS” This form can also be faxed to #: 626-810-2166...
