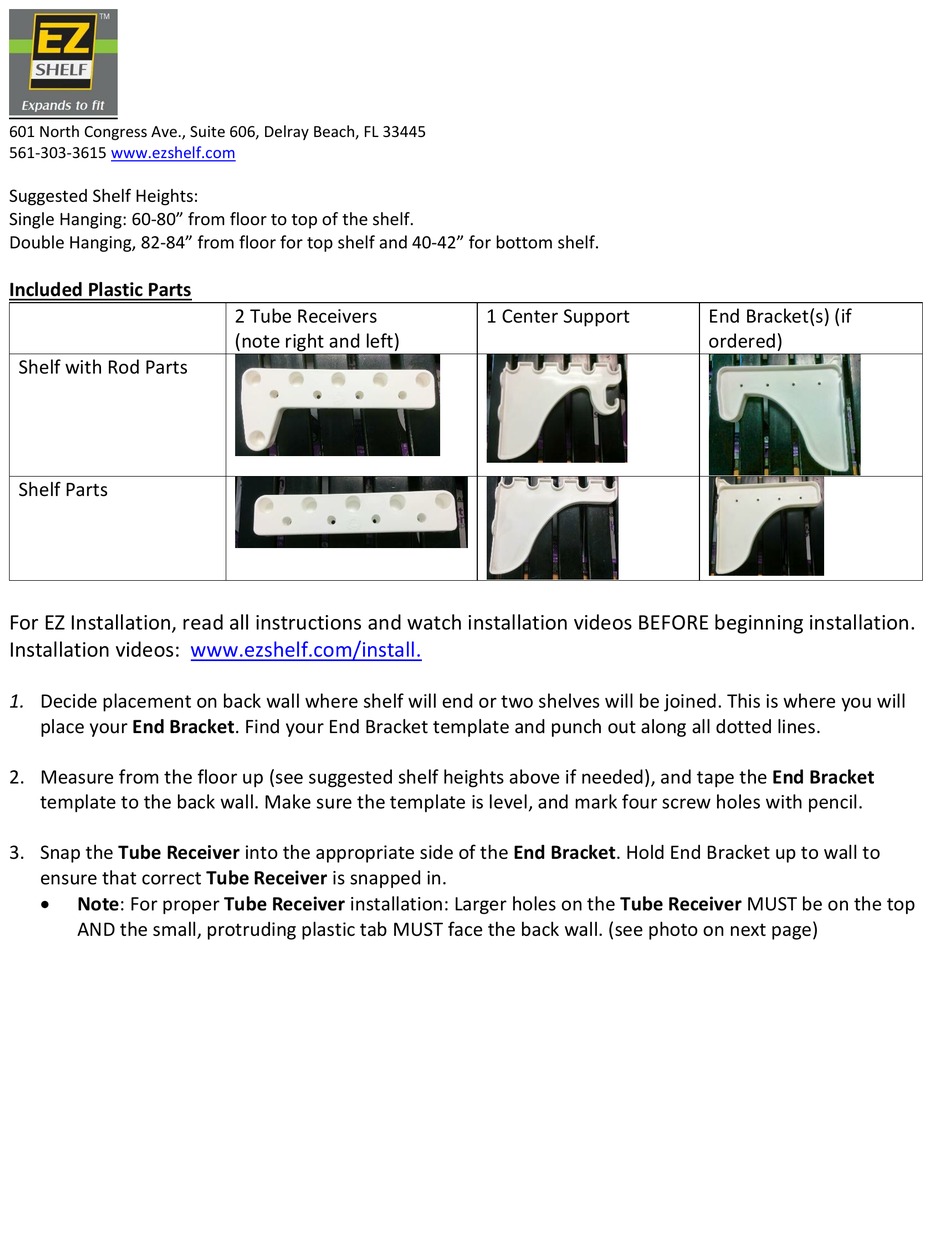

601 North Congress Ave., Suite 606, Delray Beach, FL 33445
561-303-3615
www.ezshelf.com

Suggested Shelf Heights:

Single Hanging: 60-80" from floor to top of the shelf.
Double Hanging, 82-84" from floor for top shelf and 40-42" for bottom shelf.

Included Plastic Parts

Shelf with Rod Parts
Shelf Parts
For EZ Installation, read all instructions and watch installation videos BEFORE beginning installation.
Installation videos:
1. Decide placement on back wall where shelf will end or two shelves will be joined. This is where you will
place your End Bracket. Find your End Bracket template and punch out along all dotted lines.
2. Measure from the floor up (see suggested shelf heights above if needed), and tape the End Bracket
template to the back wall. Make sure the template is level, and mark four screw holes with pencil.
3. Snap the Tube Receiver into the appropriate side of the End Bracket. Hold End Bracket up to wall to
ensure that correct Tube Receiver is snapped in.
Note: For proper Tube Receiver installation: Larger holes on the Tube Receiver MUST be on the top
AND the small, protruding plastic tab MUST face the back wall. (see photo on next page)
2 Tube Receivers
(note right and left)
www.ezshelf.com/install.
1 Center Support
End Bracket(s) (if
ordered)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Suggested Shelf and is the answer not in the manual?

Questions and answers

Related Manuals for EZ Shelf Suggested Shelf

Summary of Contents for EZ Shelf Suggested Shelf

  • Page 1 End Bracket. Find your End Bracket template and punch out along all dotted lines. 2. Measure from the floor up (see suggested shelf heights above if needed), and tape the End Bracket template to the back wall. Make sure the template is level, and mark four screw holes with pencil.
  • Page 2 6. Drywall- Screw in plastic anchors into drywall. If needed, drill a small “pilot” hole into the wall first. Use a screwdriver or electric drill (on LOW speed – do NOT over tighten). Note: EZ Shelf will hold 200 lbs.
  • Page 3 7. Hold End Bracket over the anchors or holes and secure to wall using correct screws. If using an electric screwdriver or drill, use on low setting to make sure you do not over-tighten screw through the plastic. 8. If you using another End Bracket, measure the same distance from the floor as the first End Bracket and tape the Template on the wall.
