Royal Aircraft S.E.5a FIGHTER Instruction Manual

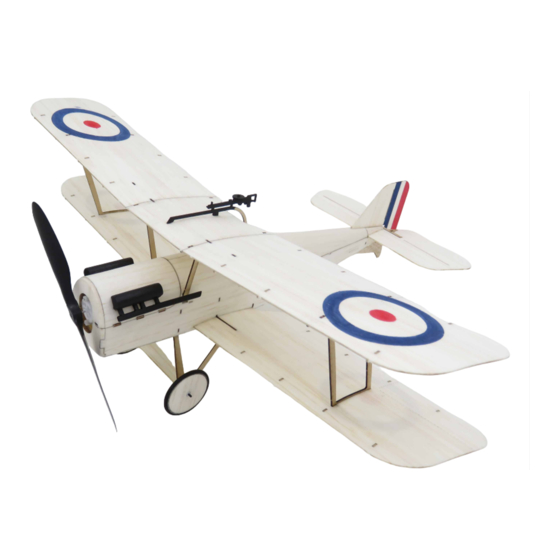

ROYAL AIRCRAFT FACTORY S.E.5a FIGHTER
BALSAWOOD MINI AIRPLANE INSTRUCTION MANUAL
Balsawood Pieces and Accessories
Brushless Motor Parts
A1
O1
A9
O2
A28
A11
O3
O4
A15
O5
O6
A16
B1
B2
C1
C3
C5
C6
C4
D3
D2
D1 D6
D5
D7
E1
E2
H1
H2
Tools Needed
A4
A6
A3
A2
A5
A10
A20
A12
A21
A13
A22
A14
A18
A17
A19
G7
G6
G5
G4
G3
G2
C2
G1
Painting Stickers
C7
D4
D8 D8 D9
Specification
Wingspan:378mm
E3
Length:330mm
Flying Weight:≈40g
E4
Suggested Prop:4530-5030
Brushed motor
Suggested Motor:DEPS7 brushed motor
Suggested ESC/Servo/RX:DSMⅡ 3in1 board
Suggested BATT:1S 100-200mah
F1
Brushless motor
Suggested Motor:1104 KV3700
F2
Suggested ESC:1S 5A
F3
Suggested Servo:2g servoX2
F4 F5
F7
F6
Suggested BATT:1S 200-250mah
F8
Suggested Radio≥3CH
The Position of CG
A8
A7
A26
A23
A27
A24
A25
G13 G14
G8 G10
G12
G11
25mm
C.G
Installation of Fuselage
1.Take out the A1、 A2、 A3、 A6、 A7、 A8、 A9、 A13、 A22、 A23、
C3、 C4、 C5、 C7、 D1 from the board, assemble the frame
parts as below picture, use glue to stick the junction.
C5
A23
A9
A13
A2
A7
A6
Note: This airplane has brush version and brushless
version for your choice, above is the installation of brush
version.Below is the installation way of brushless version.
(Red parts are the difference of this two versions.)
O3
O5
O4
2.Take out E1 from the board, assemble the cover over
the fuselage frame in pre-cut hole.(For the bend parts,
please paste it before moistening with the water.)
E1
E1
3.Take out C2、 D3、 E4 from the board, install the bottom cover
over the fuselage frame, use glue to stick the junction, assemble
A20 at the same time, put the magnet (G8) into the inside of
preformed hole .
C2
D3
E4
4.Take out C6、 D2 from the board, assemble the cabin
cover as below picture, and insert magnet (G8),
Note:Here magnet is attractable with A20.
C6
G8
D2
5.Stick tail cover F1 (Bend and stick before moistening
with the water.)
F1
D1
C3
C4
C7
A22
A3
A8
A1
G8
A20
