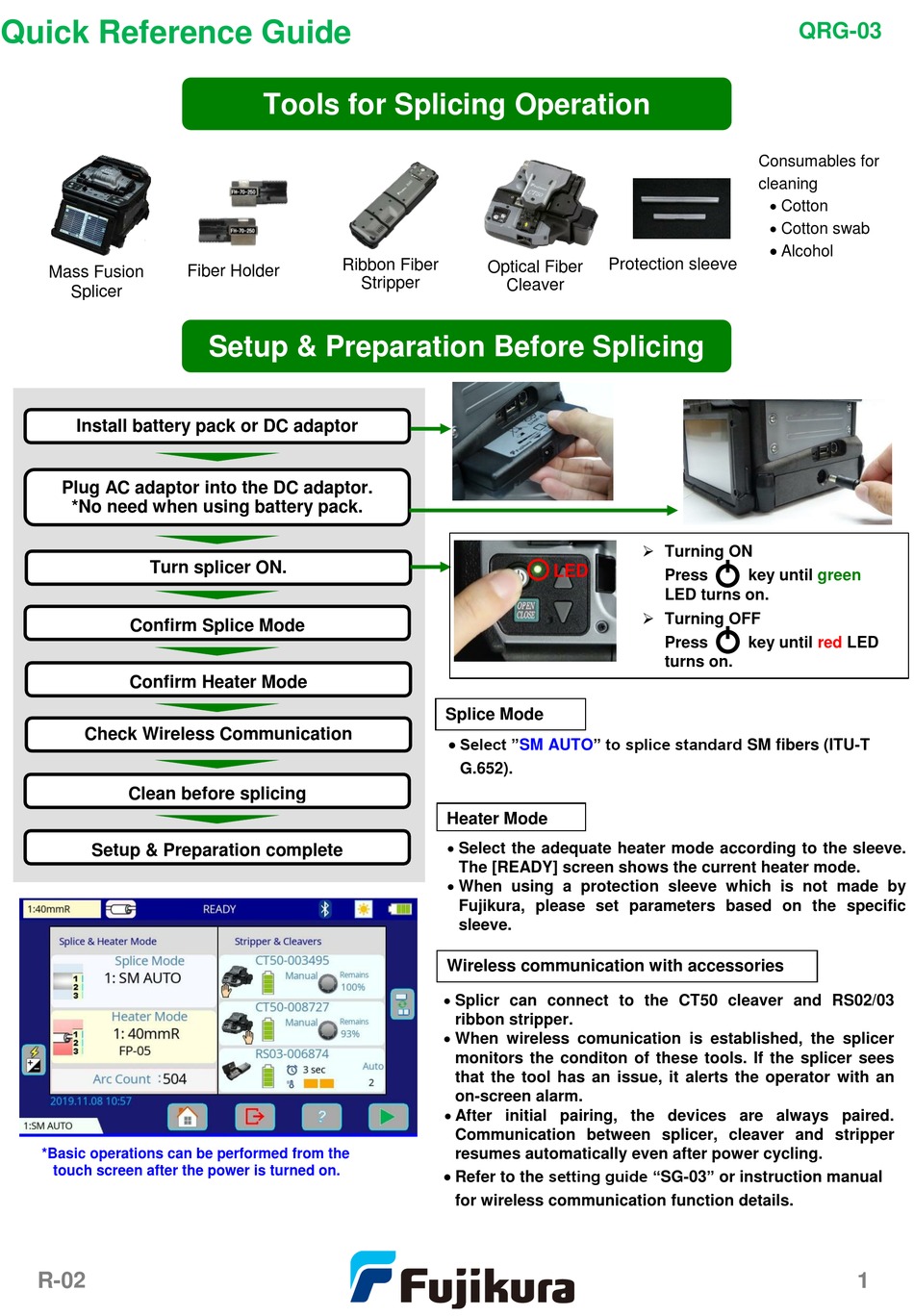

Fujikura QRG-03 Quick Reference Manual

Quick Reference Guide

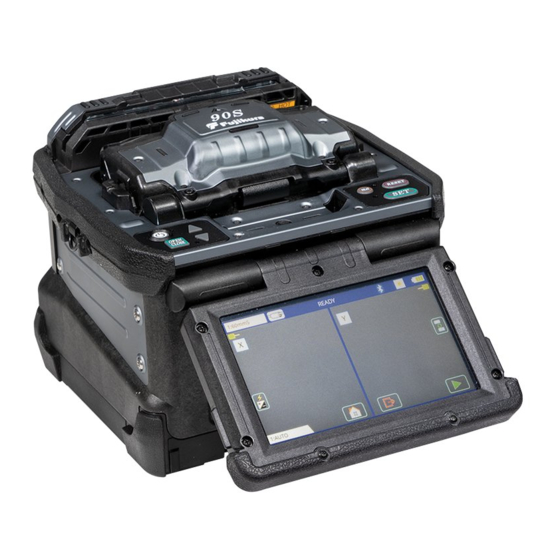

Mass Fusion
Splicer
Install battery pack or DC adaptor
Plug AC adaptor into the DC adaptor.
*No need when using battery pack.
Turn splicer ON.
Confirm Splice Mode
Confirm Heater Mode
Check Wireless Communication
Clean before splicing
Setup & Preparation complete
*Basic operations can be performed from the
touch screen after the power is turned on.
R-02

Tools for Splicing Operation

Ribbon Fiber
Fiber Holder
Setup & Preparation Before Splicing
Optical Fiber
Stripper
Cleaver
Splice Mode

Select "SM
G.652).
Heater Mode
 Select the adequate heater mode according to the sleeve.
The [READY] screen shows the current heater mode.
 When using a protection sleeve which is not made by
Fujikura, please set parameters based on the specific
sleeve.

Wireless communication with accessories
 Splicr can connect to the CT50 cleaver and RS02/03
ribbon stripper.
 When wireless comunication is established, the splicer
monitors the conditon of these tools. If the splicer sees
that the tool has an issue, it alerts the operator with an
on-screen alarm.
 After initial pairing, the devices are always paired.
Communication between splicer, cleaver and stripper
resumes automatically even after power cycling.

Refer to the setting guide "SG-03" or instruction manual
for wireless communication function details.
Protection sleeve
 Turning ON
LED
Press
LED turns on.
 Turning OFF
Press
turns on.
AUTO" to splice standard SM fibers (ITU-T
QRG-03
Consumables for
cleaning
 Cotton
 Cotton swab

Alcohol
key until green
key until red LED
1
