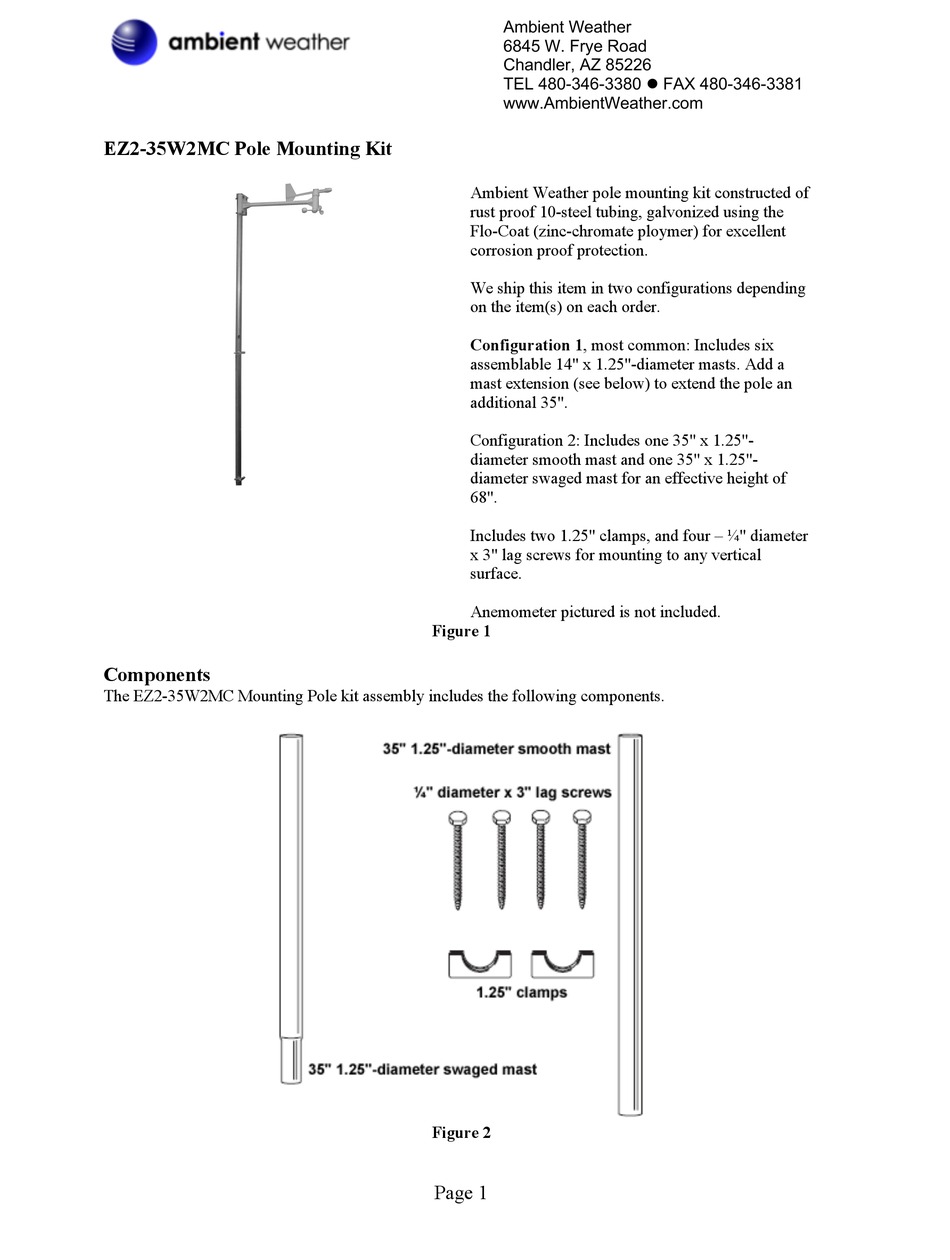

Ambient EZ2-35W2MC Quick Start Manual

EZ2-35W2MC Pole Mounting Kit

Components

The EZ2-35W2MC Mounting Pole kit assembly includes the following components.
Ambient Weather
6845 W. Frye Road
Chandler, AZ 85226
TEL 480-346-3380 l FAX 480-346-3381
www.AmbientWeather.com

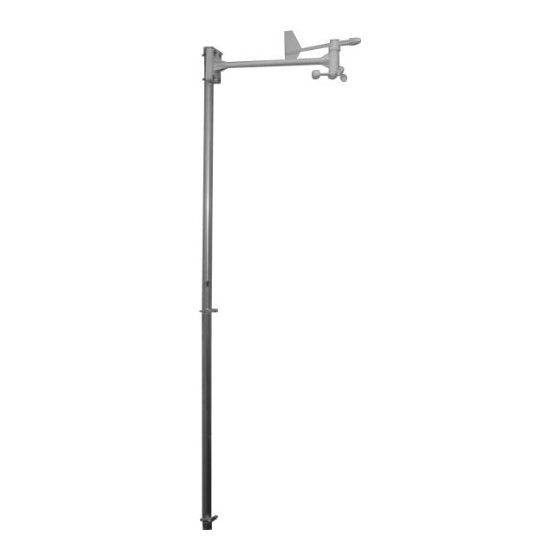

Ambient Weather pole mounting kit constructed of
rust proof 10-steel tubing, galvonized using the
Flo-Coat (zinc-chromate ploymer) for excellent
corrosion proof protection.
We ship this item in two configurations depending
on the item(s) on each order.
Configuration 1, most common: Includes six
assemblable 14" x 1.25"-diameter masts. Add a
mast extension (see below) to extend the pole an
additional 35".
Configuration 2: Includes one 35" x 1.25"-
diameter smooth mast and one 35" x 1.25"-
diameter swaged mast for an effective height of
68".
Includes two 1.25" clamps, and four – ¼" diameter
x 3" lag screws for mounting to any vertical
surface.
Anemometer pictured is not included.
Figure 1
Figure 2
Page 1
