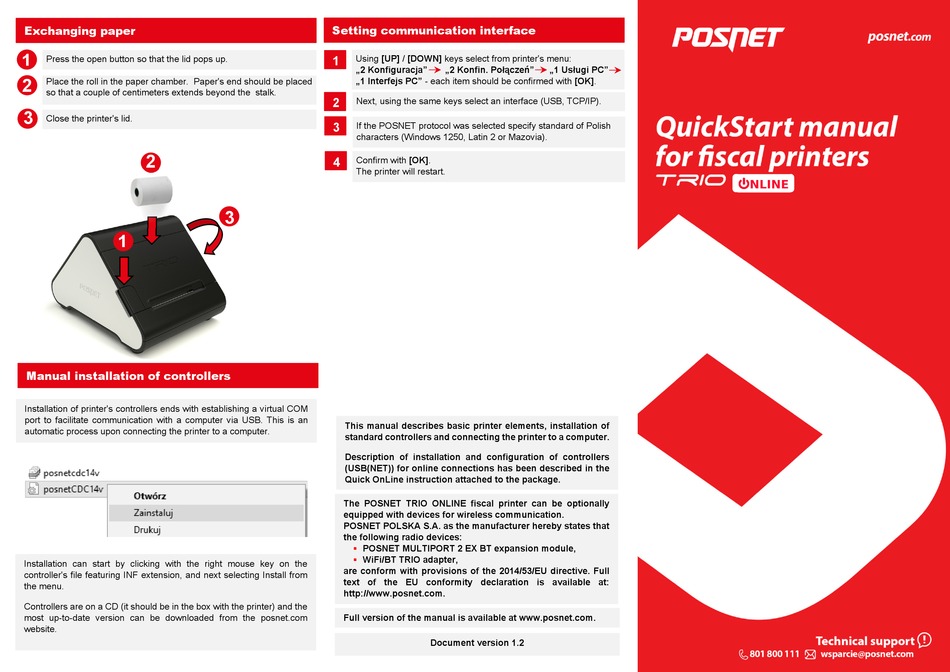

Posnet TRIO ONLINE Quick Start Manual

Exchanging paper

1
Press the open button so that the lid pops up.
Place the roll in the paper chamber. Paper's end should be placed
2
so that a couple of centimeters extends beyond the stalk.
3
Close the printer's lid.
2
1

Manual installation of controllers

Installation of printer's controllers ends with establishing a virtual COM
port to facilitate communication with a computer via USB. This is an
automatic process upon connecting the printer to a computer.
Installation can start by clicking with the right mouse key on the
controller's file featuring INF extension, and next selecting Install from
the menu.
Controllers are on a CD (it should be in the box with the printer) and the
most up-to-date version can be downloaded from the posnet.com
website.

Setting communication interface

Using [UP] / [DOWN] keys select from printer's menu:
1
„2 Konfiguracja"
„1 Interfejs PC" - each item should be confirmed with [OK].
Next, using the same keys select an interface (USB, TCP/IP).
2
3 If the POSNET protocol was selected specify standard of Polish
characters (Windows 1250, Latin 2 or Mazovia).
Confirm with [OK].
4
The printer will restart.
3
This manual describes basic printer elements, installation of
standard controllers and connecting the printer to a computer.
Description of installation and configuration of controllers
(USB(NET)) for online connections has been described in the
Quick OnLine instruction attached to the package.

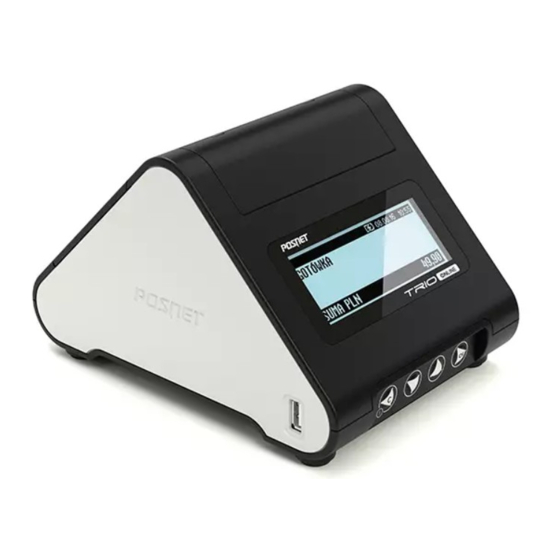

The POSNET TRIO ONLINE fiscal printer can be optionally
equipped with devices for wireless communication.
POSNET POLSKA S.A. as the manufacturer hereby states that
the following radio devices:
 POSNET MULTIPORT 2 EX BT expansion module,

WiFi/BT TRIO adapter,
are conform with provisions of the 2014/53/EU directive. Full
text of the EU conformity declaration is available at:
http://www.posnet.com.
Full version of the manual is available at www.posnet.com.
„2 Konfin. Połączeń" „1 Usługi PC"
Document version 1.2
