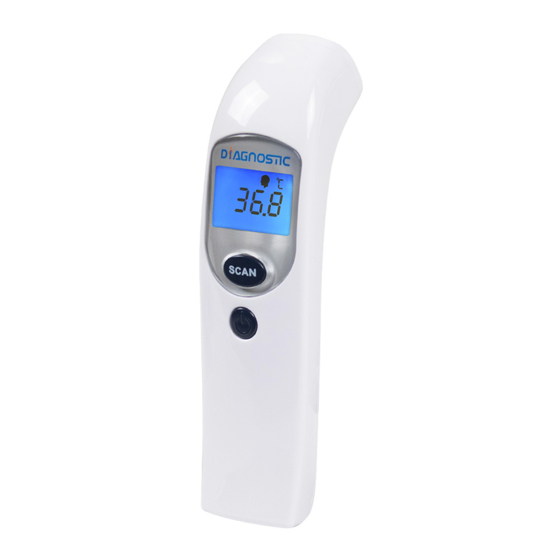

Non-contact infrared thermometer

Advertisement

Quick Links

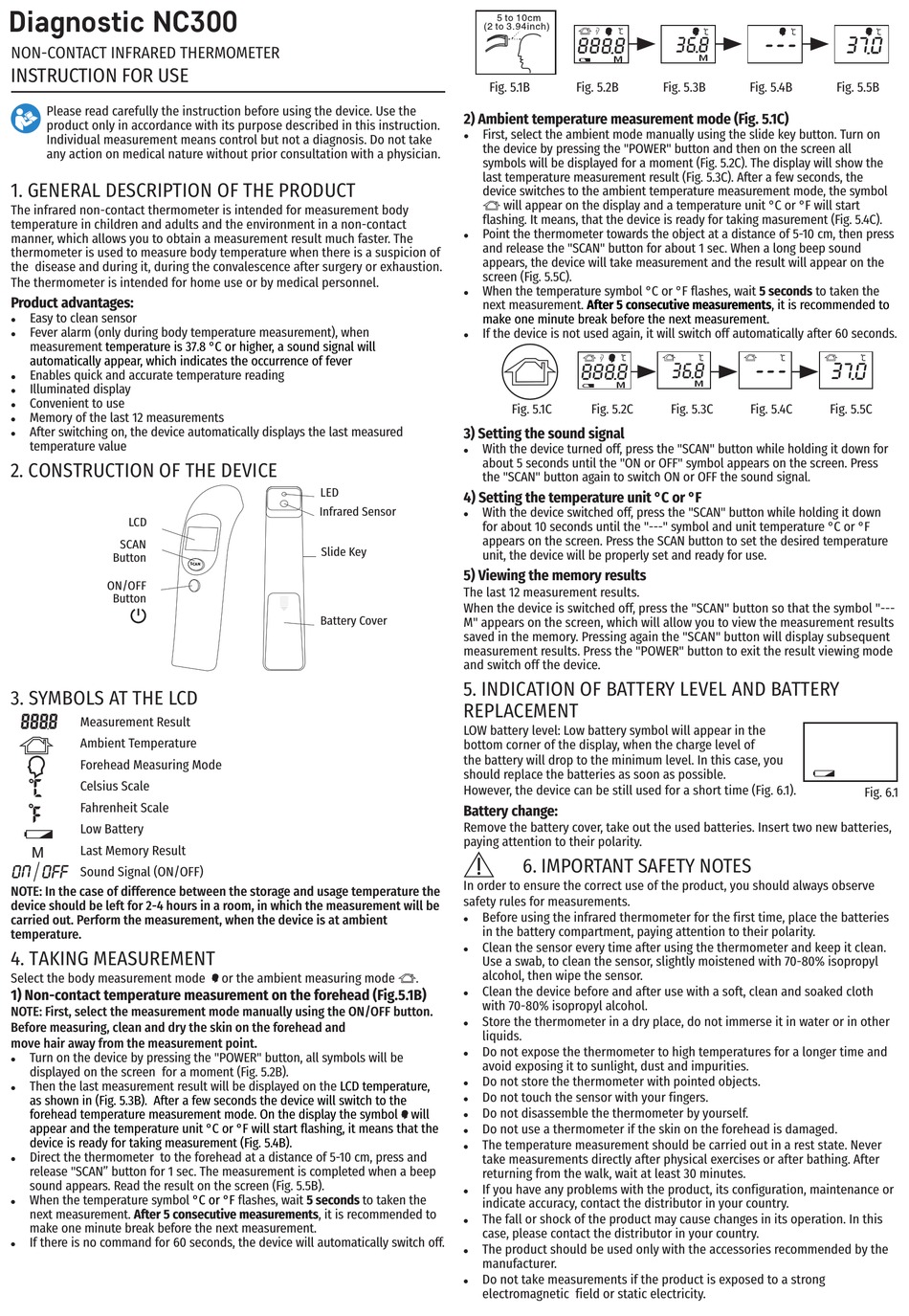

Diagnostic NC300
NON-CONTACT INFRARED THERMOMETER
INSTRUCTION FOR USE
Please read carefully the instruction before using the device. Use the
product only in accordance with its purpose described in this instruction.
Individual measurement means control but not a diagnosis. Do not take
any action on medical nature without prior consultation with a physician.

1. GENERAL DESCRIPTION OF THE PRODUCT

The infrared non-contact thermometer is intended for measurement body
temperature in children and adults and the environment in a non-contact
manner, which allows you to obtain a measurement result much faster. The
thermometer is used to measure body temperature when there is a suspicion of
the disease and during it, during the convalescence after surgery or exhaustion.
The thermometer is intended for home use or by medical personnel.
Product advantages:
Easy to clean sensor
l
Fever alarm (only during body temperature measurement), when
l
measurement
temperature is 37.8 °C or higher, a sound signal will
automatically appear, which indicates the occurrence of fever
Enables quick and accurate temperature reading
l
Illuminated display
l
Convenient to use
l
Memory of the last 12 measurements
l
After switching on, the device automatically displays the last measured
l
temperature value

2. CONSTRUCTION OF THE DEVICE

LCD
SCAN
Button
ON/OFF
Button
3. SYMBOLS AT THE LCD
Measurement Result
Ambient Temperature
Forehead Measuring Mode
Celsius Scale
Fahrenheit Scale
Low Battery
Last Memory Result
Sound Signal (ON/OFF)
NOTE: In the case of difference between the storage and usage temperature the
device should be left for 2-4 hours in a room, in which the measurement will be
carried out. Perform the measurement, when the device is at ambient
temperature.

4. TAKING MEASUREMENT

Select the body measurement mode   or the ambient measuring mode
1) Non-contact temperature measurement on the forehead (Fig.5.1B)
NOTE: First, select the measurement mode manually using the ON/OFF button.
Before measuring, clean and dry the skin on the forehead and
move hair away from the measurement point.
Turn on the device by pressing the "POWER" button, all symbols will be
l
displayed on the screen for a moment (Fig. 5.2B).
Then the last measurement result will be displayed on the
l
as shown in (Fig. 5.3B). After a few seconds the device will switch to the
forehead temperature measurement mode. On the display the symbol will
appear and the temperature unit °C or °F will start flashing, it means that the
device is ready for taking measurement (Fig. 5.4B).
Direct the thermometer to the forehead at a distance of 5-10 cm, press and
l
release "SCAN" button for 1 sec. The measurement is completed when a beep
sound appears. Read the result on the screen (Fig. 5.5B).
When the temperature symbol
l
next measurement. After 5 consecutive measurements, it is recommended to
make one minute break before the next measurement.
If there is no command for 60 seconds, the device will automatically switch off.
l
LED
Infrared Sensor
Slide Key
SCAN
Battery Cover
LCD temperature,
°C or °F
flashes, wait 5 seconds to taken the
Fig. 5.1B
2) Ambient temperature measurement mode (Fig. 5.1C)
First, select the ambient mode manually using the slide key button. Turn on
l
the device by pressing the "POWER" button and then on the screen all
symbols will be displayed for a moment (Fig. 5.2C). The display will show the
last temperature measurement result (Fig. 5.3C). After a few seconds, the
device switches to the ambient temperature measurement mode, the symbol

will appear on the display and a temperature unit °C or °F will start
flashing. It means, that the device is ready for taking masurement (Fig. 5.4C).
Point the thermometer towards the object at a distance of 5-10 cm, then press
l
and release the "SCAN" button for about 1 sec. When a long beep sound
appears, the device will take measurement and the result will appear on the
screen (Fig. 5.5C).
When the temperature symbol °C or °F flashes, wait 5 seconds to taken the
l
next measurement.
make one minute break before the next measurement.
If the device is not used again, it will switch off automatically after 60 seconds.
l
Fig. 5.1C
3) Setting the sound signal
With the device turned off, press the "SCAN" button while holding it down for
l
about 5 seconds until the "ON or OFF" symbol appears on the screen. Press
the "SCAN" button again to switch ON or OFF the sound signal.
4) Setting the temperature unit °C or °F
With the device switched off, press the "SCAN" button while holding it down
l
for about 10 seconds until the "---" symbol and unit temperature °C or °F
appears on the screen. Press the SCAN button to set the desired temperature
unit, the device will be properly set and ready for use.
5) Viewing the memory results
The last 12 measurement results.
When the device is switched off, press the "SCAN" button so that the symbol "---
M" appears on the screen, which will allow you to view the measurement results
saved in the memory. Pressing again the "SCAN" button will display subsequent
measurement results. Press the "POWER" button to exit the result viewing mode
and switch off the device.
5. INDICATION OF BATTERY LEVEL AND BATTERY
REPLACEMENT
LOW battery level: Low battery symbol will appear in the
bottom corner of the display, when the charge level of
the battery will drop to the minimum level. In this case, you
should replace the batteries as soon as possible.
However, the device can be still used for a short time (Fig. 6.1).
Battery change:
Remove the battery cover, take out the used batteries. Insert two new batteries,
paying attention to their polarity.

6. IMPORTANT SAFETY NOTES

In order to ensure the correct use of the product, you should always observe
safety rules for measurements.
Before using the infrared thermometer for the first time, place the batteries
l
in the battery compartment, paying attention to their polarity.
Clean the sensor every time after using the thermometer and keep it clean.
l
Use a swab, to clean the sensor, slightly moistened with 70-80% isopropyl
alcohol, then wipe the sensor.
.
Clean the device before and after use with a soft, clean and soaked cloth
l
with 70-80% isopropyl alcohol.
Store the thermometer in a dry place, do not immerse it in water or in other
l
liquids.
Do not expose the thermometer to high temperatures for a longer time and
l
avoid exposing it to sunlight, dust and impurities.
Do not store the thermometer with pointed objects.
l
Do not touch the sensor with your fingers.
l
Do not disassemble the thermometer by yourself.

l
Do not use a thermometer if the skin on the forehead is damaged.
l
The temperature measurement should be carried out in a rest state. Never
l
take measurements directly after physical exercises or after bathing. After
returning from the walk, wait at least 30 minutes.
If you have any problems with the product, its configuration, maintenance or
l
indicate accuracy, contact the distributor in your country.
The fall or shock of the product may cause changes in its operation. In this
l
case, please contact the distributor in your country.
The product should be used only with the accessories recommended by the
l
manufacturer.
Do not take measurements if the product is exposed to a strong
l
electromagnetic field or static electricity.
Fig. 5.2B
Fig. 5.3B
After 5 consecutive measurements, it is recommended to
Fig. 5.2C
Fig. 5.3C
Fig. 5.4B
Fig. 5.5B
Fig. 5.4C
Fig. 5.5C
Fig. 6.1
