Diagnosis Diagnostic T-01 Instruction Manual

DIGITAL THERMOMETER
INSTRUCTION MANUAL
Thank you for purchasing the Diagnostic T-01 thermometer.
The device is designed to be used for measuring the body
temperature of children and adults. Read the instruction manual
carefully before using this device.
WARNING
Read instructions thoroughly before using digital thermometer.

Choking Hazard: Thermometer cap and battery could be

swallowed. Do not allow children to use this device without
parental supervision.
Do not use thermometer in ear. Designed to be used for oral,

rectal, and armpit (axilla) readings only.
Do not place thermometer battery near extreme heat as it may

explode.
Note: Use of the probe cover may result in a 0.1° (0.2℉)

discrepancy from actual temperature.
It is recommended, .the performance of the digital

thermometer should accuracy every two years.
Remove battery from the device when not in operation for a

long time.
The use of temperature readings for self-diagnosis is

dangerous. Consult your doctor for the interpretation of results.
Self-diagnosis may lead to the worsening of existing conditions.
Do not attempt measurements when the thermometer is wet

as inaccurate readings may result.
Do not bite the thermometer. Doing so may lead to breakage

and/or injury.
Do not attempt to disassemble or repair the thermometer.

Doing so may result in inaccurate readings.
After each use, disinfect the thermometer especially in case

the device is used by more than one person.
Do not force the thermometer into the rectum. Stop insertion

and the measurement when pain is present. Failure to do so
may lead to injury.
Do not use thermometer orally after being used rectally.

For children who are two years old or younger, please do not

use the devices orally.
PLEASE READ CAREFULLY BEFORE USING
This digital thermometer provides a quick and highly accurate reading of an
individual's body temperature. To better understand its functions and to
provide years of dependable results, please read all instructions first.

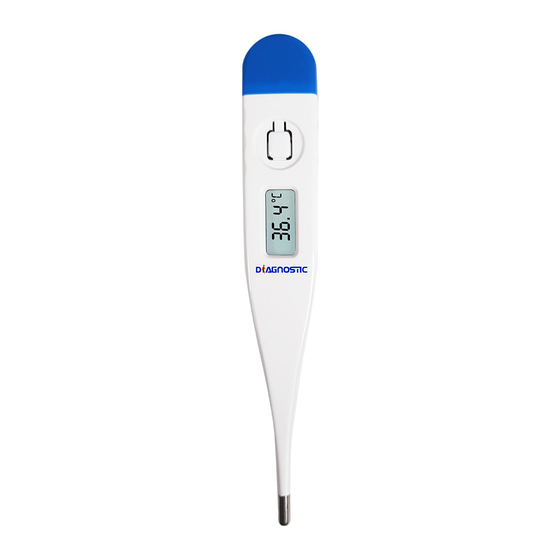

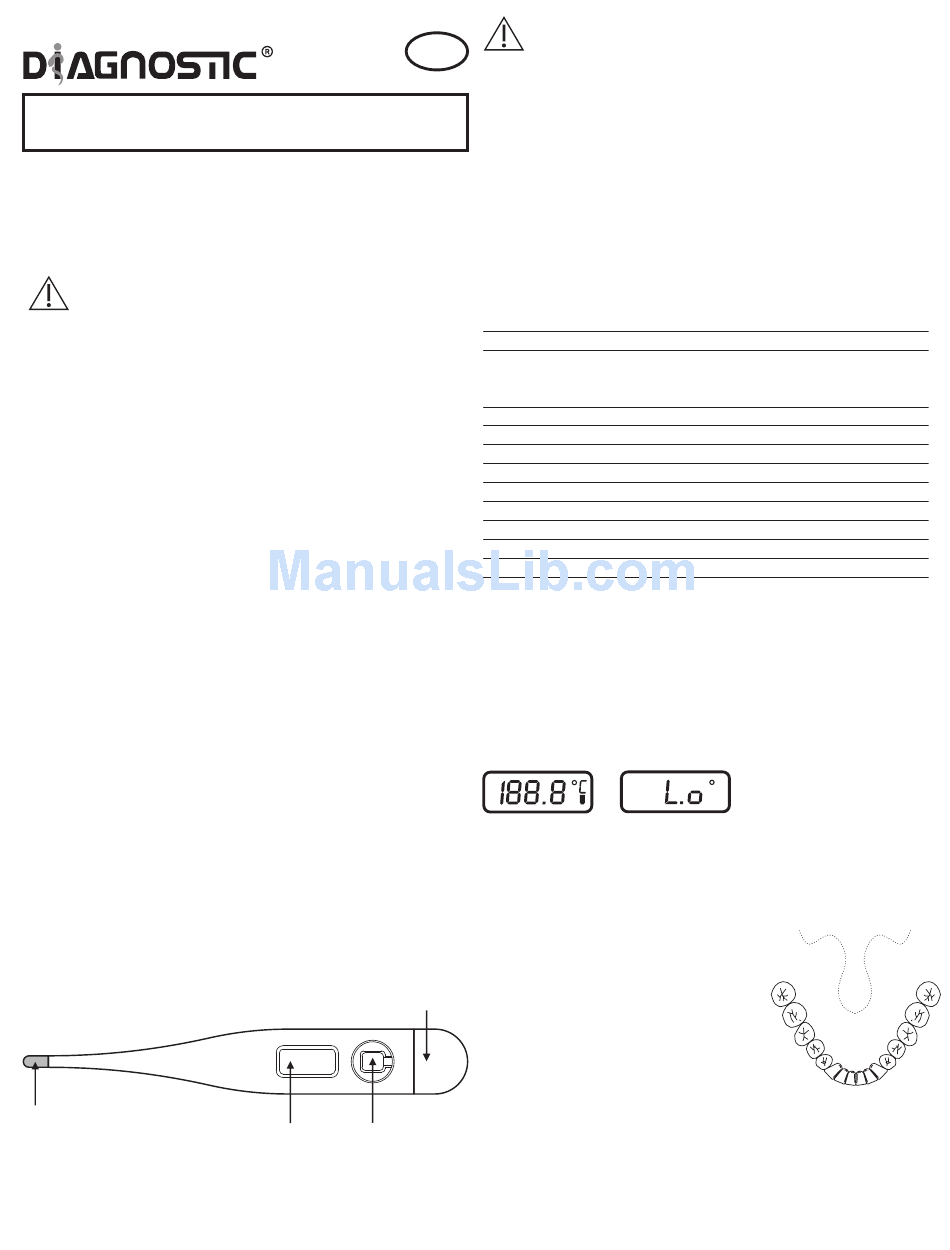

PRODUCT ILLUSTRATION
PROBE
CONTENTS
1 Thermometer, 1 Instruction Manual, 1 Storage Case
EN
T-01
C
Battery Cap
LCD ON/OFF
BUTTON
PRECAUTION
Efficiency of the device may be reduced if one or more of the
following factors occur:
Operation outside the manufacturer's stated temperature and

humidity range.
Storage outside the manufacturer's stated temperature and

humidity range.
Mechanical shock (e.g. dropping)

Patient temperature is below ambient temperature.

Portable and mobile RF communications can affect the device.

The device needs special pre-cautions regarding EMC according
to the EMC information provided in the accompany documents.
SPECIFICATION
Typ Digital thermometer
Range 32,0°C - 42,9°C
Accuracy ±0,1°C, 35,5°C - 42,0°C
±0,2°C - 35,5°C and over 42,0°C
at ambient temperature of 18°C - 28°C
Display LCD 3 i 1/2 digits
Memory Storing the last measured value
Battery One 1,5 V DC (LR41 or SR41, UCC 392)
Battery life approx. 200 hours
Dimension 12,4cm x 1,8cm x 0,9cm (L x W x H)
Weight Approx. 10 g incuding battery
Operating environment 5°C~40°C, 15%~95% R.H.
Storage and Transportation -20°C ~ 55°C, 15% ~ 95%, R.H.
Waterpoof level IP 22
Clasification Typ BF
MEASURING
1. Press the ON/OFF Button, a short beep signals the
thermometer ON. A tone will sound as the screen shows Fig.1
followed by last recorded temperature. After showing the self-
tested temperature, the thermometer is now ready for use.
Symbol Lo and a flashing °C (Fig.2) indicates the testing mode.
Fig.1 Fig.2
M
*Note: If the measured temperature is less than 32°C (90℉) the
LCD will show Lo, if the measured temperature is higher than 42.9°C
(109.9℉), the LCD will display Hi.
2. Position thermometer in desired location (mouth, rectum, or
armpit.)
a) Oral Use: Place the thermometer
under tongue. Close your mouth
and breathe evenly through the
nose to prevent the measurement
from being influenced by
inhaled/exhaled air. Normal
temperature between 35.7°C - 37.3
°C (96.3℉ - 99.1℉)
b) Rectal Use: Lubricate silver probe
tip with petroleum jelly for easy
insertion. Gently insert the sensor
of thermometer approximately 1cm (less than 1/2") into
rectum. Normal temperature between 36.2°C - 37.7 °C (96.2℉
- 99.9℉)
c) Armpit Use: Wipe armpit with a dry towel. Place probe in the
armpit and keep the arm pressed firmly at side. Normal
temperature between 35.2°C - 36.7 °C (95.4℉ - 98.1℉).
c
Fig.3
37,1°C 37,1°C
36,9°C 36,9°C
36,7°C
36,6°C
36,5°C
