Summary of Contents for Katana 220001

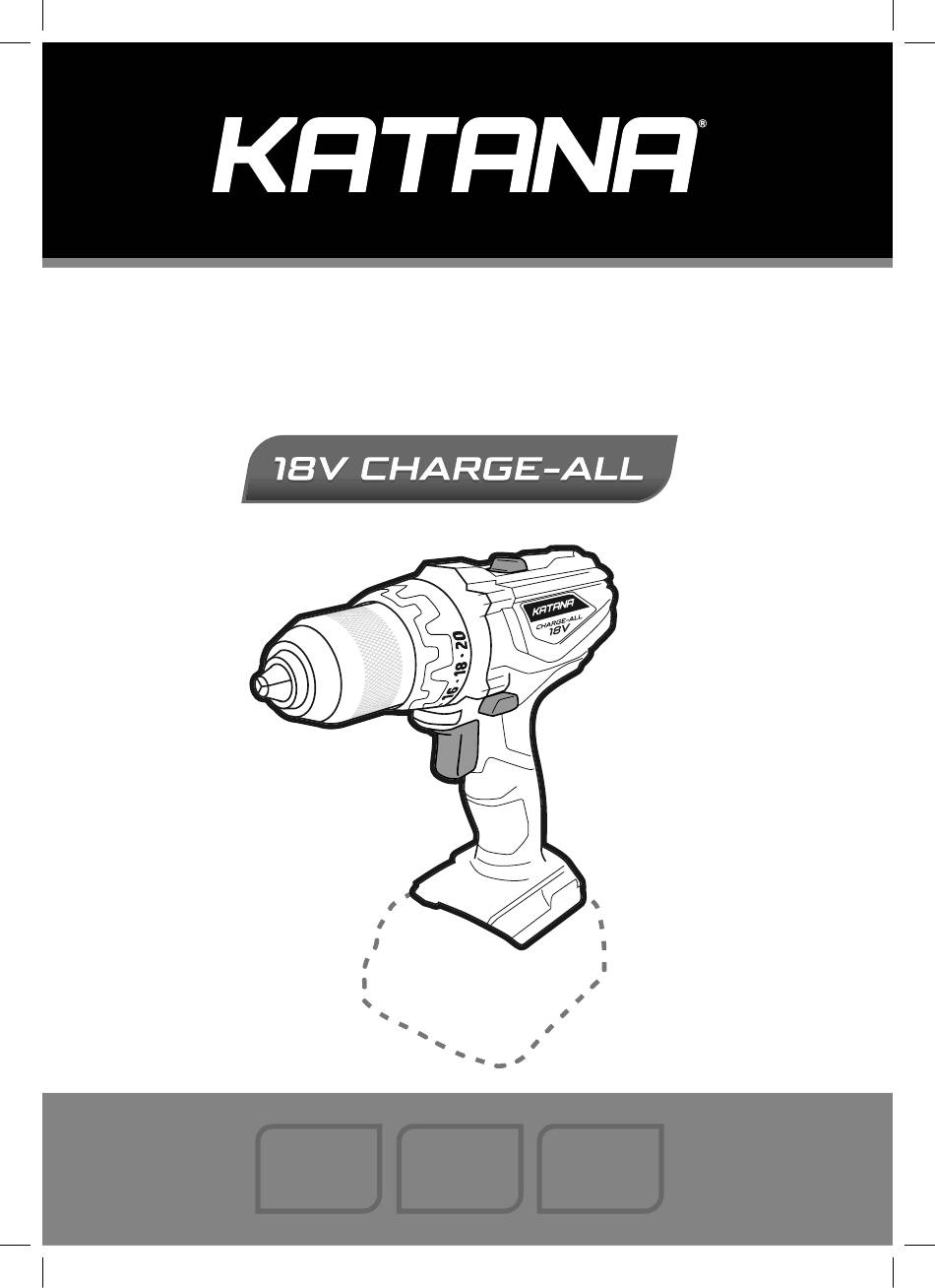

- Page 1 CORDLESS Hammer Drill INSTRUCTION MANUAL CORDLESS Hammer Drill INSTRUCTION MANUAL 5 YEAR WARRANTY LITHIUM ION TORQUE SETTINGS 220001...
-
Page 2: General Power Tool Safety Warnings
CORDLESS Hammer Drill INSTRUCTION MANUAL GENERAL POWER TOOL SAFETY WARNINGS 220001 switch or energising power tools that have the switch on WARNING Read all safety warnings and all invites accidents. instructions.Failure to follow the warnings and Remove any adjusting key or wrench before turning instructions may result in electric shock, fire the power tool on. -
Page 3: Tool Assembly
CORDLESS Hammer Drill INSTRUCTION MANUAL TOOL ASSEMBLY 220001 When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. -
Page 4: Know Your Product
CORDLESS Hammer Drill INSTRUCTION MANUAL KNOW YOUR PRODUCT 220001 2 - TORQUE/ACTION SETTING COLLAR 3 - GEAR SELECTOR 1 - KEYLESS CHUCK CHARGE-ALL 7 - LED LIGHT 4 - FORWARD/REVERSE BUTTON 6 - TRIGGER 5 - BELT CLIP BATTERY INSERTS HERE... - Page 5 CORDLESS Hammer Drill INSTRUCTION MANUAL HAMMER DRILL BASICS 220001 Grab & Twist USE ON WOOD, MASONRY OR STEEL HOW TO ADJUST TORQUE/ACTION SETTING COLLAR The drill is designed for use on Wood (up to Hold the torque/action setting collar (2) and rotate 25mm depth), Masonry (up to 13mm depth) or to the number desired.
- Page 6 CORDLESS Hammer Drill INSTRUCTION MANUAL HOW TO INSERT A DRILL BIT 220001 CHARGE-ALL CHARGE-A Grab & Twist clockwise 1. LOOSEN THE CHUCK 2. SET THE BIT Holding the drill, place your hand on the keyless Make sure the smooth of the drill bit (the shank) is chuck (1) and rotate in a clockwise direction.
-
Page 7: How To Use The Drill
CORDLESS Hammer Drill INSTRUCTION MANUAL HOW TO USE THE DRILL 220001 CHARGE-A 1. ENSURE SAFETY 2. MAKE SURE YOU HAVE THE RIGHT BIT Always wear safety glasses when working with the Always read the packaging & instructions for drill. Make sure to secure your hair and any baggy correct usage included with the drill bit to ensure it clothes. -
Page 8: Maintenance
* Standard 3 year warranty with an additional 2 year warranty available subject to online 5 YEAR registration via katanapowertools.com.au. Warranty on this Katana product is given by Kincrome Australia Pty Ltd of 3 Lakeview Drive, Caribbean Park, Scoresby, Victoria, Australia (Tel +61 3...
