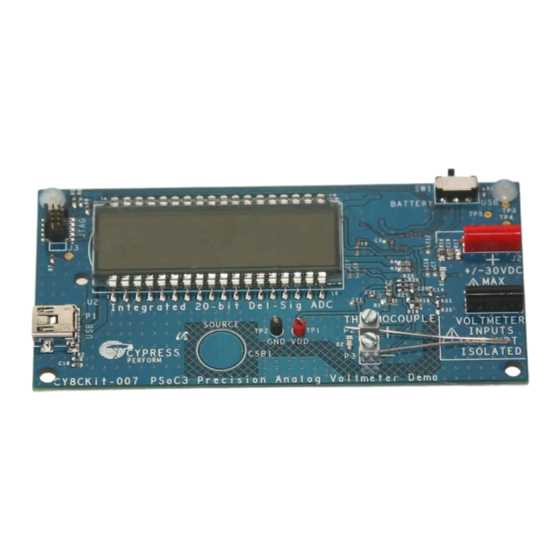

CY8CKIT-007 PSoC
1

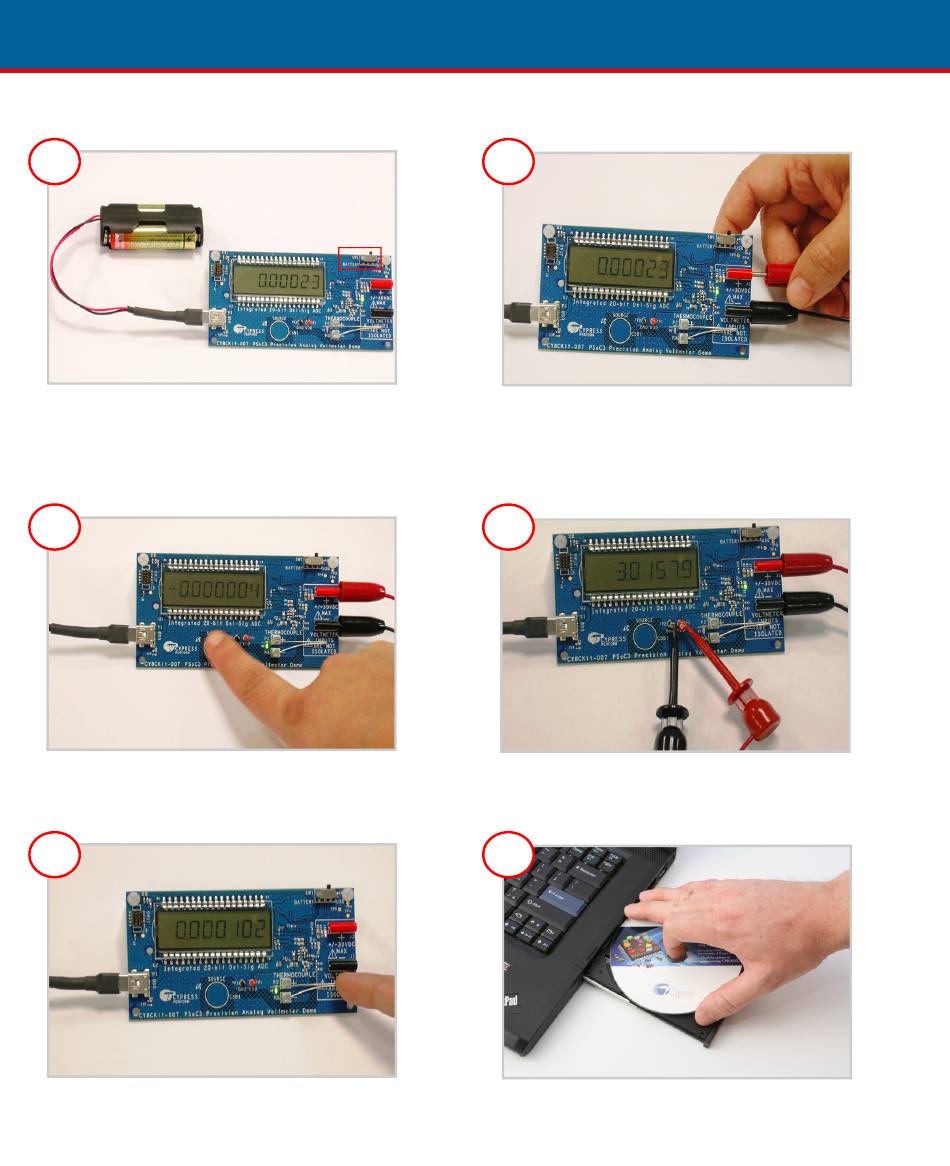

1. Power the Kit through USB Connector
from 2-AA battery pack.
2. Switch SW1 to the USB position (right).
3
Press the source button to toggle
between voltage inputs (Thermocouple
and test leads).
5
Touch thermocouple and monitor voltage
displayed on LCD.
®
3 PRECISION ANALOG VOLTMETER DEMO KIT
QUICK START GUIDE
2
Connect the test leads.
CAUTION The input range is limited to
-30V DC to +30V DC DO NOT use
AC voltage.
4
Use TP1 and TP2 test points to measure kit
power source.
6
Refer to the Kit Guide for project files.
