2.1 – Components and Cartridges

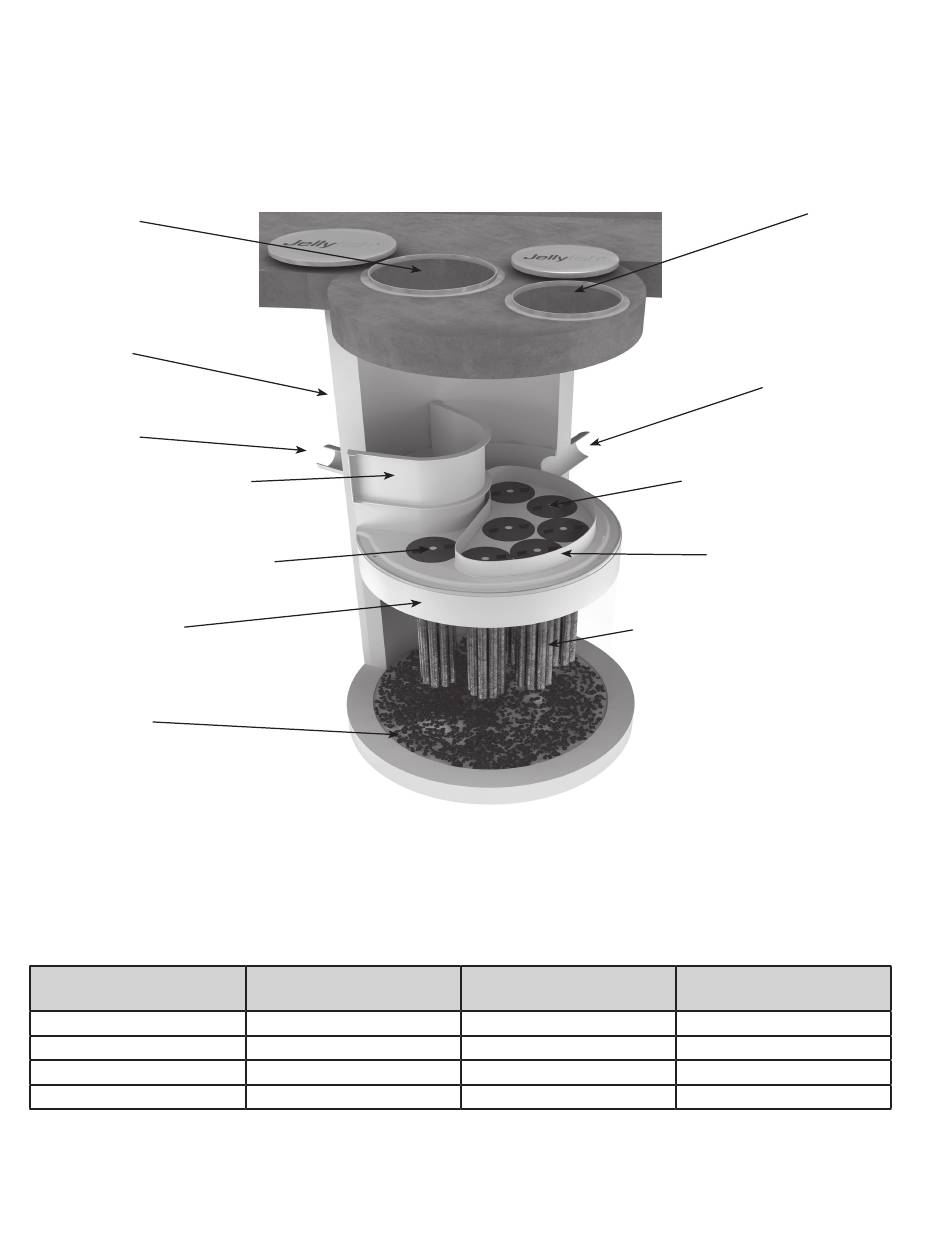

The Jellyfish Filter and components are depicted in Figure 2 below.
FIGURE 2
Equipment Access
Manhole Structure
Inlet Pipe
Maintenance Access Wall
(MAW)
Draindown Cartridge with Lid
(outside of backwash pool)
Cartridge Deck
Sediment
Tentacles are available in various lengths as depicted in Table 1 below.
Table 1 – Cartridge Lengths / Weights and Cartridge Lid Orifice Diameters
Cartridge Lengths
15 inches (381 mm)
27 inches (686 mm)
40 inches (1,016 mm)
54 inches (1,372 mm)
6 Jellyfish Filter Owner's Manual
®
Jellyfish Filter Components
Dry Weight
10 lbs (4.5 kg)
14.5 lbs (6.6 kg)
19.5 lbs (8.9 kg)
25 lbs (11.4 kg)
Membrane Filtration Tentacles
Note: Separator Skirt not shown
Hi-Flo Orifice
Diameter
35 mm
45 mm
55 mm
70 mm
Personnel Access
Outlet Pipe
Hi-Flo Cartridges with Lid
(inside backwash pool)
Backwash Pool Weir
Draindown Orifice
Diameter
20 mm
25 mm
30 mm
35 mm
