I.H.T IHTSDL707 User Manual

IHTSDL707
{WiFi)
S m a r t Lock Use r Man ual
Please read this manual carefully before use
Information & Saf e ty Warnings
Note: Please prepare a Phillips screw driver and 4 AA batteries before
installation.
1. Keep your fingers clean before using this product.
2. In original settings, it can be unlocked with any fingerprint, any card,
or password' 1234567890 ' ended with'#'.
3. Unlock: Press registered fingerprint on front handle sensor, or make
card close to lock pad, or enter password ended with"#".
4. If the power is insufficient, there will be an alarm prompt, and the lock
can be only unlocked around 50 times, please replace with 4 new
batteries in time. When batteries power running out, connecting a
power bank with Micro USB line though Emergency Power Port can
unlock, but the APP network function will be failure.
5. Please don 't use corrodent material to clean the surface.
6. When the password/fingerprint/card/APP can not unlock the door,
please use the key to unlock the door. Please keep the emergency key
with you or put it in outdoor safe place.
7. Waking up lock needs around 3 seconds or more, when long time no using.
8. The lock is suitable for 1.57 -3.94INCH thick doors.
° °
9. Work temperature range: -22 F - 131 F.
Features
1. The total capacity of system is 100, and the first three are administrator.
2. Touching button, durable.
3. Support 6-8 password and 20 virtual password.
4. Support low power warning.
5. Support volume adjustment and door bell.
Name Parameter
Fingerprint Sensor
semiconductor
DPI 500
Identify Time 0.3S
Unlock Way Fingerprint, Card, Password, Key and APP
System Capacity 100
Supply Voltage 6V
Low Voltage Warning 4.8V
Standby Current <=50uA
Installation
1. Installation Instructions
a. It is recommended to look for professionals to install, watch the video
carefully before installing.
b. Please note that the connection line can't be pressed or folded during
installation.
c. Before the installation, the lock must be selected correctly according
to the door opening direction, because the handle can't be adjusted.
d. While installing, the door must be in half open state until the
commissioning is completed.
e. After the installation is completed, when the fingerprint, card,
password(1234567890) and # , APP, key unlock, test whether the front
handle and back handle unlock/lock normally or not.
f. If it does not work properly, please check if there is improper installation
or the power cord is loose.

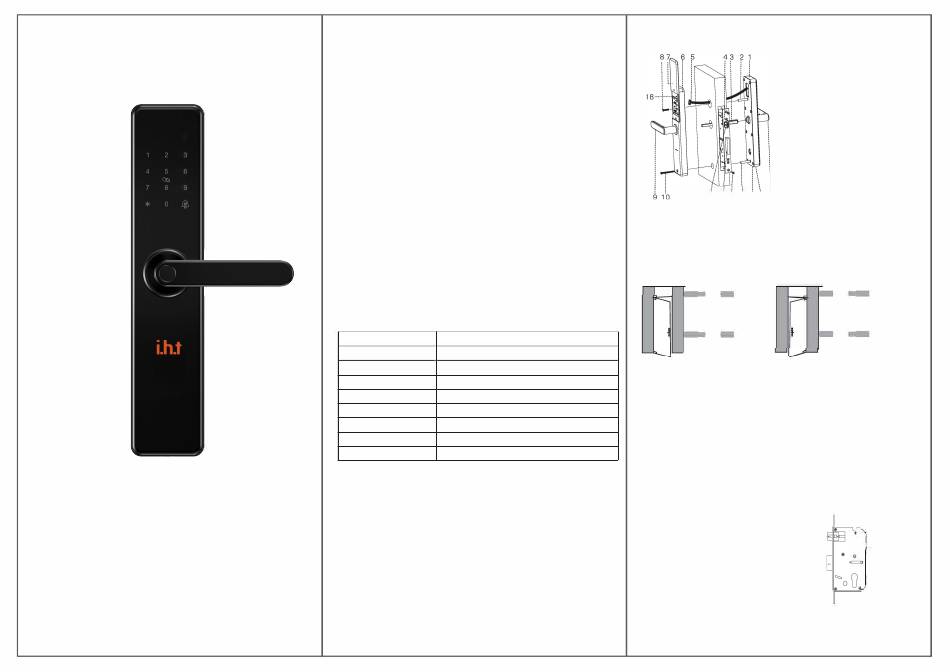

2. Installation Overview
1.Front Panel
2.Connection Column
3. Square Steel
4.Lock Body
5.Connection Line
6.Back Panel
?.Battery Cover
a.Connection Column Screws
9.Back Handle
1 a.Connection Column Screws
11. Latch-bolt
12.Dead-bolt
13.Lock Body Screws
14.Connection Column
15.Key Hole
1' 1 121314151617
16. Emergency Power Port
17 .Front Handle
18.'SET' Button
3. Confirm The Direction of The Door
This smart lock is suitable for Left Out/Left In/Right Out/Right In) 4 kinds of door
opening directions.
Indoor
Left Hand Door
Right Hand Door
�
�Leftln
Outdoor
Indoor
LeftOut
�
Outaoor
4. Open Hole
Please refer to the opening hole drawing, and drill right holes on the door.
5. Install Lock Body
5.1. Choose the installation direction of the latch-bolt of the lock body by
the door opening directions.
� Left ln/
�Left Out/
Right Out
� Right ln
�
5.2. Change the direction of lock body
a. Push the reversing block to the
other side.
b. Push the latch-bolt into the lock
Latch-bolt
and turn 180 degrees.
c. Put back the reversing block, and
Dead-bolt
the latch-boll will pop up
automatically.
5.3. Put the lock body into the door
frame and tighten 2 fixing screws.
Indoor
'I'---_
� Right In
Outdoor
Indoor
RightOut
�
Outdoor
� �- --Reversing
D
block
@--- - Square Steel
Hole
Lock Body
