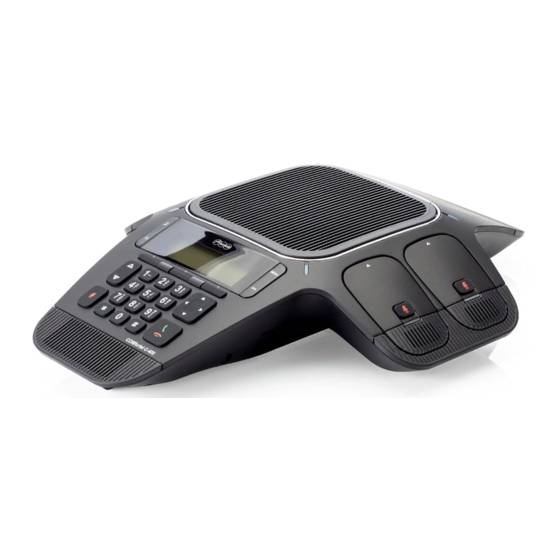

Auerswald COMfortel C-400 Provisioning Manual

Hide thumbs Also See for COMfortel C-400:
Table of Contents

Advertisement

Quick Links

Download this manual
COMfortel C-400
Konferenztelefon
Provisioning Guide
English
COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMfortel C-400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Auerswald COMfortel C-400

Summary of Contents for Auerswald COMfortel C-400

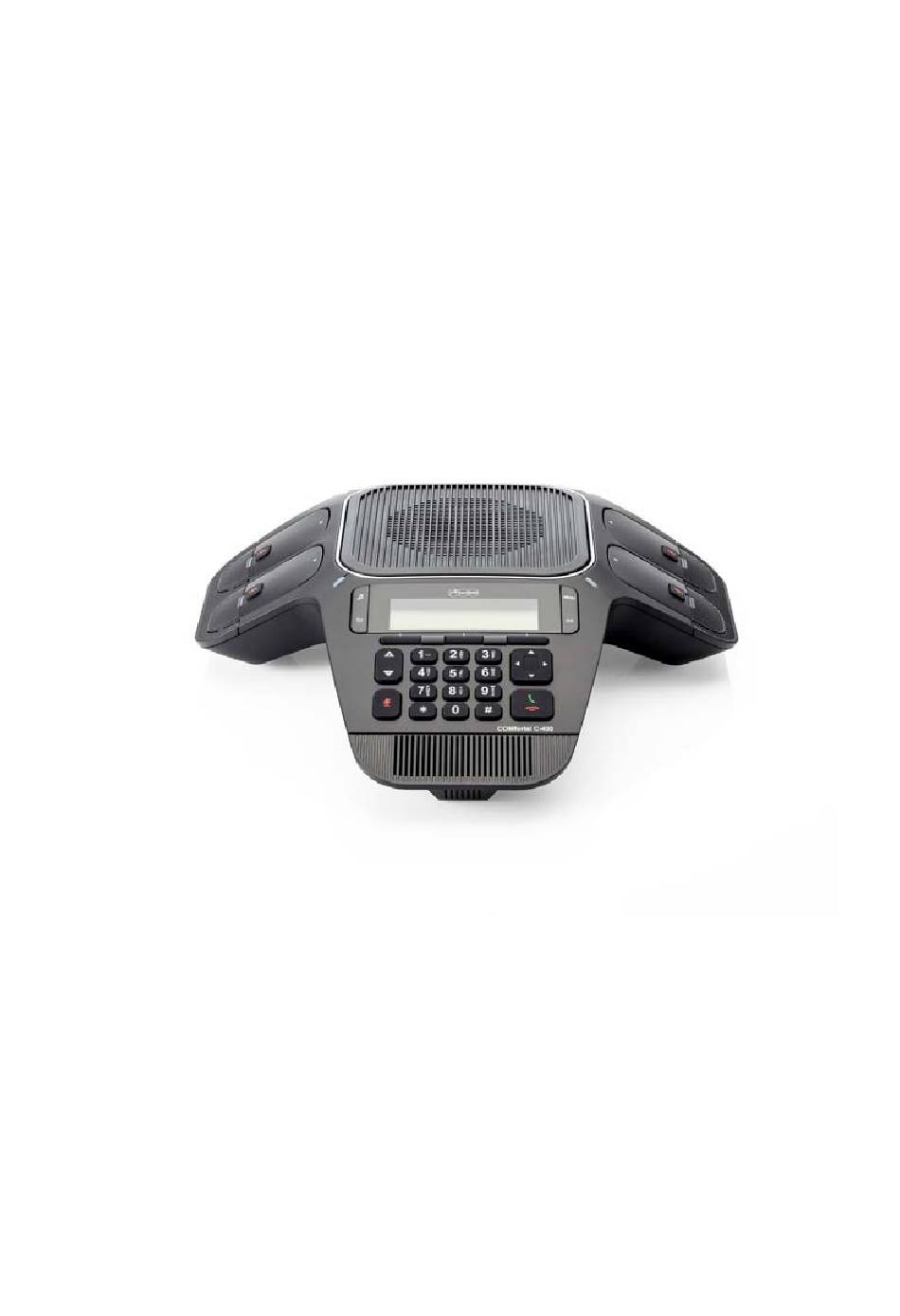

  • Page 1 COMfortel C-400 Konferenztelefon Provisioning Guide English COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 2: Table Of Contents

    MAC-specific Configuration File Settings ..........33 "provisioning" Module: Provisioning Settings ..........36 "time_date" Module: Time and Date Settings..........42 "log" Module: Log Settings ................47 "remoteDir" Module: Remote Directory Settings ........49 "web" Module: Web Settings ..............56 COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 3 "tone" Module: Tone Definition Settings ............70 "profile" Module: Password Settings ............74 General Configuration File Settings............74 MAC-specific Configuration File Settings ..........75 "page_zone" Module: Paging Zone Settings..........76 "softkey" Module: Custom Soft Key Settings..........78 COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 4: Provisioning Using Configuration Files

    Provisioning Using Configuration Files Provisioning using configuration files is the quickest way to configure multiple COMfortel C-400. You can place configuration files on a provisioning server, where the devices retrieve the files and update their configuration automatically. Configuration files have the extension .cfg and contain settings that will apply to the devices.

  • Page 5: The Provisioning Process

    During provisioning, the device reads the configuration file and validates each module and setting. The device considers a setting valid if it is: a valid data type  formatted as a valid setting  within a valid data range  COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 6: Resynchronization: Configuration File Checking

    The Remote check-sync settings are available only in the configuration file, not the WebUI. Repeatedly, at a defined interval from 60 to 65535 minutes (45 days).  COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 7: Device Restart

    When you update the device by importing a configuration file using the WebUI, the device restarts immediately after applying the new settings, regardless of whether the device is idle. COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 8: Configuration File Types

    You can configure a setting for most of your COMfortel C-400s in the general file, and then overwrite that setting for just a few COMfortel C-400s using the MAC-specific file. COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 9: Data Files

    After modifying the .xml file, you can use the configuration file "file" module to have the device import the new file. For a complete list of data file parameters, see “"file" Module: Imported File Settings” on page COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 10: Configuration File Tips And Security

    The device downloads the MAC-specific configuration file after the general configuration file. You must create a MAC-specific configuration file for each device in your system. The file name must contain the device MAC address, which is COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 11: Securing Configuration Files With Aes Encryption

    When renaming a MAC-specific configuration file, ensure the filename is all upper case. The MAC-specific configuration file contains settings intended exclusively for that COMfortel C-400. Such settings will include SIP account settings such as display name, user ID and authentication ID. Securing Configuration Files with AES Encryption You can encrypt your configuration files to prevent unauthorized users modifying the configuration files.
  • Page 12 You must ensure that configuration files are encrypted when enabling AES Encryption. Decrypting an unencrypted file will result in a garbage file that is not processed. This will also be logged as an error in the system log. COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 13: Configuration File Parameter Guide

    “"ringersetting" Module: Distinctive Ringer Settings” on page 66  “"file" Module: Imported File Settings” on page 67  “"tone" Module: Tone Definition Settings” on page 70   “"profile" Module: Password Settings” on page 74 COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 14: Sip_Account" Module: Sip Account Settings

    The SIP account settings follow the format: sip_account.x.[element], where x is an account number ranging from 1 to 3 for the device. All these settings are exported when you manually export the configuration from the device. COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 15: General Configuration File Settings

    Values: 1–10 Default: Setting: sip_account.x.maximum_call_number Description: Sets the maximum number of concurrent active calls allowed for that account. Values: 1–6 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 16 Values: 0 (disabled), 1 (enabled) Default: Setting: sip_account.x.dtmf_transport_method Description: Sets the transport method for DTMF signalling for account x. Values: auto, rfc2833, inband, Default: auto info COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 17 Sets the registration server port for account x. Values: 1–65535 Default: 5060 Setting: sip_account.x.primary_registration_expires Description: Sets the expiration time (in seconds) of the current registration for account x. Values: 30–7200 Default: 3600 COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 18 Sets the backup outbound proxy server port for account x. Values: 1–65535 Default: 5060 Setting: sip_account.x.codec_priority.1 Description: Sets the highest-priority codec for account x. Values: g711u, g711a, g729, Default: g711u g726, g722 COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 19 Sets the fifth highest-priority codec for account x. Values: none, g711u, g711a, Default: g722 g729, g726, g722 Setting: sip_account.x.voice_encryption_enable Description: Enables or disables SRTP voice encryption for account x. Values: 0 (disabled), 1 (enabled) Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 20 Sets the oRTP jitter buffer in milliseconds. Values: 30–500 Default: Setting: sip_account.x.local_sip_port Description: Sets the Local SIP port for account x. Values: 1–65535 Default: Account 1: 5060 Account 2: 5070 Account 3: 5080 COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 21 Sets the voicemail retrieval feature access code for account x. Values: Text string Default: Blank Setting: sip_account.x.access_code_dnd_on Description: Sets the do not disturb (DND) ON feature access code for account x. Values: Text string Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 22 Sets the Call Forward No Answer ON feature access code for account x. Values: Text string Default: Blank Setting: sip_account.x.access_code_cfna_off Description: Sets the Call Forward No Answer OFF feature access code for account x. Values: Text string Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 23 Sets the Anonymous Call Block OFF feature access code for account x. Values: Text string Default: Blank sip_account.x.access_code_outgoing_call_anonymous_on Setting: Description: Sets the Anonymous Outgoing Call ON feature access code for account x. Values: Text string Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 24 Default: Blank Setting: sip_account.x.mwi_enable Description: Enables or disables message waiting indicator subscription for account x. Enable if SUBSCRIBE and NOTIFY methods are used for MWI. Values: 0 (disabled), 1 (enabled) Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 25 Values: 0 (disabled), 1 (enabled) Default: Setting: sip_account.x.nat_traversal_stun_server_address Description: Sets the STUN server IP address. Values: Text string Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 26 Description: Enables or disables network conferencing for account x. Values: 0 (disabled), 1 (enabled) Default: Setting: sip_account.x.network_bridge_uri Description: Sets the URI for the network conferencing bridge on account x. Values: Text string (SIP URI) Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 27 Description: Enables or disables accepting only a trusted TLS certificate for account x. Values: 0 (disabled), 1 (enabled) Default: Setting: sip_account.use_first_trusted_certificate_for_all Description: Enables or disables accepting the first TLS certificate for all accounts. Values: 0 (disabled), 1 (enabled) Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 28 Note: PFK values do not apply to the device, which has no programmable feature keys. Values: broadsoft, asterisk Default: broadsoft Setting: sip_account.x.preferred_ptime Description: Enter the packetization interval time in milliseconds. Values: 10, 20, 30, 40, 50, 60 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 29: Mac-Specific Configuration File Settings

    Values: Text string Default: Blank Setting: sip_account.x.display_name Description: Sets the text portion of the caller ID that is displayed for outgoing calls using account x. Values: Text string Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 30 Description: Sets the MWI URI that will be used for MWI subscription. If this setting is left blank, the device uses the account x user ID for MWI subscription. Values: SIP URI text string Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 31: Network" Module: Network Settings

    Description: Enables or disables the WAN VLAN. Values: 0 (disabled), 1 (enabled) Default: Setting: network.vlan.wan.id Description: Sets the WAN VLAN ID. Values: 0–4095 Default: Setting: network.vlan.wan.priority Description: Sets the WAN port priority. Values: 0–7 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 32 Description: Sets the 802.1x EAPOL MD5 password. Values: Text string Default: Blank Setting: network.vendor_class_id Description: Sets the vendor ID for DHCP option 60. Values: Text string Default: Auerswald COMfortel C-400 COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 33: Mac-Specific Configuration File Settings

    Values: 0 (disabled), 1 (enabled) Default: Setting: network.nat.public_ip_addr Description: Sets the public IP address. Values: Text string (IPv4) Default: Setting: network.nat.public_sip_port Description: Sets the public SIP port. Values: 1–65535 Default: 5060 COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 34 Blank Setting: network.ip.subnet_mask Description: Sets the subnet mask for the network. Values: Text string (IPv4) Default: Blank Setting: network.ip.gateway_addr Description: Sets the Gateway IP address. Values: Text string (IPv4) Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 35 Description: Sets the primary DNS server IP address. Values: Text string (IPv4) Default: Blank Setting: network.ip.dns2 Description: Sets the secondary DNS server IP address. Values: Text string (IPv4) Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 36: Provisioning" Module: Provisioning Settings

    Description: Sets the authentication name for the server hosting the firmware file. Values: Text string Default: Blank Setting: provisioning.fw_server_access_password Description: Sets the authentication password for the server hosting the firmware file. Values: Text string Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 37 Description: Enables or disables using DHCP options for locating the configuration and firmware files. Values: 0 (disabled), 1 (enabled) Default: Setting: provisioning.dhcp_option_priority_1 Description: Sets the first priority DHCP option for the provisioning/firmware file check. Values: 66, 159, 160 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 38 Description: Enables or disables bootup check for configuration and firmware files. Values: 0 (disabled), 1 (enabled) Default: Setting: provisioning.schedule_mode Description: Sets the type of schedule check for configuration and firmware files. Values: disable, interval, weekdayDefault: disable COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 39 Description: Sets the hour when the device checks for new firmware and/or configuration files. Values: 0–23 Default: Setting: provisioning.weekdays_end_hr Description: Sets the hour when the device stops checking for new firmware and/or configuration files. Values: 0–23 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 40 0 (disabled), 1 (enabled) Default: Setting: provisioning.pnp_enable Description: Enables or disables the device checking for the provisioning URL using the Plug-and-Play Subscribe and Notify protocol. Values: 0 (disabled), 1 (enabled) Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 41 This parameter is not available on the WebUI. The passwords affected are: network.eapol.access_password  provisioning.fw_server_access_password  provisioning.server_access_password  profile.admin.access_password  profile.user.access_password  sip_account.x.authentication_access_password  remoteDir.ldap_access_password  remoteDir.broadsoft_access_password  Values: 0 (disabled), 1 (enabled) Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 42: Time_Date" Module: Time And Date Settings

    Description: Sets the URL for the NTP server. Values: Text string Default: europe.pool.ntp.org Setting: time_date.ntp_dhcp_option Description: Enables or disables DHCP option 42 to find the NTP server. Values: 0 (disabled), 1 (enabled) Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 43 Setting: time_date.daylight_saving_user_defined Description: Enables or disables manual daylight savings configuration. Values: 0 (disabled), 1 (enabled) Default: Setting: time_date.daylight_saving_start_month Description: Sets the month that daylight savings time starts. Values: January–December Default: March COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 44 Default: 02:00 Setting: time_date.daylight_saving_end_month Description: Sets the month that daylight savings time ends. Values: January–December Default: November Setting: time_date.daylight_saving_end_week Description: Sets the week that daylight savings time ends. Values: 1–5 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 45 Description: Enables or disables DHCP option 2/100/101 for determining time zone information. Values: 0 (disabled), 1 (enabled) Default: Setting: time_date.ntp_server_update_interval Description: Sets the delay between NTP server updates, in seconds. Values: 0–4294967295 Default: 1000 Setting: time_date.time_and_date COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 46 Configuration File Parameter Guide Description: Manually sets the date and time. Use the format <year>-<month>-<day>T<hour>:<minute>:<second> Values: <year>-<month>-<day>T Default: 2015-01-01T12:00:00 <hour>:<minute>:<secon d> COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 47: Log" Module: Log Settings

    0 (disabled), 1 (enabled) Default: Setting: log.syslog_server_address Description: Sets the syslog server IP address. Values: Text string (IPv4) Default: Blank Setting: log.syslog_server_port Description: Sets the syslog server port. Values: 1–65535 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 48 Description: Sets the log level. The higher the level, the larger the debug output. 5 – all 4 – debug 3 – info 2 – warning 1 – error 0 – critical Values: 0–5 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 49: Remotedir" Module: Remote Directory Settings

    Description: Sets the LDAP directory name. Values: Text string Default: Blank Setting: remoteDir.ldap_server_address Description: Sets the LDAP server IP address. Values: Text string Default: Blank Setting: remoteDir.ldap_port Description: Sets the LDAP server port. Values: 1–65535 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 50 Enter one or more attribute definitions, separated by commas (no spaces). Your directory may include attributes like "cn" (common name) or "ou" (organizational unit) or "dc" (domain component). For example, ou=accounting,dc=auerswald,dc=com Values: Text string Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 51 Text string Default: Firstname Setting: remoteDir.ldap_lastname_filter Description: Sets the LDAP last name attribute filter. Values: Text string Default: Lastname Setting: remoteDir.ldap_number_filter Description: Sets the LDAP number filter. Values: Text string Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 52 Values: Text string Default: Blank Setting: remoteDir.ldap_mobile_number_attributes Description: Sets the mobile number attributes. Values: Text string Default: Blank Setting: remoteDir.ldap_other_number_attributes Description: Sets the “other” number attributes. Values: Text string Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 53 0 (disabled), 1 (enabled) Default: Setting: remoteDir.broadsoft_display_name Description: Sets the Broadsoft Phonebook display name. Values: Text string Default: Blank Setting: remoteDir.broadsoft_server Description: Sets the Broadsoft Phonebook IP address. Values: Text string Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 54 Description: Sets the Broadsoft Phonebook directory type. Values: Group, GroupCommon, Default: Group Enterprise, EnterpriseCommon, Personal Setting: remoteDir.ldap_check_certificate Description: Enables or disables accepting only a trusted LDAP certificate. Values: 0 (disabled), 1 (enabled) Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 55 Configuration File Parameter Guide Setting: remoteDir.broadsoft_check_certificate Description: Enables or disables accepting only a trusted Broadsoft certificate. Values: 0 (disabled), 1 (enabled) Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 56: Web" Module: Web Settings

    Default: Setting: web.https_enable Description: Sets server to use the https protocol. Values: 0 (disabled), 1 (enabled) Default: Setting: web.https_port Description: Sets the https port when https is enabled. Values: 1–65535 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 57: User_Pref" Module: User Preference Settings

    Description: Sets the language that appears on the device screen. Values: en, fr, es Default: Setting: user_pref.idle_to_logo_timeout Description: Sets the delay (in seconds) before the logo replaces the idle screen. Values: 0 (disabled)–300 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 58 Description: Enables the device to play a busy tone when the far-end party ends call, or when a network error condition (keep-alive failure) occurs. Values: 0 (disabled), 1 (enabled) Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 59: Mac-Specific Configuration File Settings

    Description: Enables or disables the call waiting tone. Values: 0 (disabled), 1 (enabled) Default: Setting: user_pref.call_waiting.tone_interval Description: Sets the interval for the call waiting tone in seconds. Values: 10–60 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 60 Description: Sets the absent timeout (the interval after going off hook with no action taken) in seconds. After the absent timeout, the phone returns to idle mode. Values: 10–60 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 61 Description: Sets the speakerphone volume. This setting also applies to PC speakerphone mode. Values: 1–9 Default: Setting: user_pref.key_beep_enable Description: Enables or disables key beeps on the device. Values: 0 (disabled), 1 (enabled) Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 62: Call_Settings" Module: Call Settings

    Description: Enables or disables Do Not Disturb for account x. Values: 0 (disabled), 1 (enabled) Default: Setting: call_settings.account.x.dnd_incoming_calls Description: Sets whether incoming calls are shown or rejected when DND is on for account x. Values: show, reject Default: reject COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 63 Description: Enables or disables Call Forward No Answer for account x. Values: 0 (disabled), 1 (enabled) Default: Setting: call_settings.account.x.cfna_target Description: Sets the Call Forward No Answer target number for account x. Values: Text string Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 64 Description: Sets the Call Forward No Answer delay (in number of rings) for account x. Values: 1–10 Default: Setting: call_settings.missed_call_alert_enable Description: Enables or disables missed call alerts. Values: 0 (disabled), 1 (enabled) Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 65: Speed_Dial" Module: Speed Dial Settings

    Text string (SIP URI) Default: Blank Setting: speed_dial.x.account Description: Sets the SIP account used for dialing when dial pad key x is pressed and held. Values: 0–3 Default: (0 is the default account) COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 66: Ringersetting" Module: Distinctive Ringer Settings

    The matching of the "info" parameter and ringer_text setting is case sensitive. Values: Text string in the format Default: Blank ringerx (e.g., ringer1) Setting: ringersetting.x.ringer_type Description: Select the desired ring tone for ringer setting x. Values: 1–10 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 67: File" Module: Imported File Settings

    None of these settings are exported when you manually export the configuration from the device. General Configuration File Settings Setting: file.https_user.certificate Description: URI of HTTPS server certificate to be imported; for example, <protocol>://<user>:<password>@<host>:<port>/<url-path> Values: Text string Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 68: Mac-Specific Configuration File Settings

    Text string Default: Blank Setting: file.contact.directory.append Description: URL of contact directory to be imported. Entries in the imported file will be added to existing directory entries. Values: Text string Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 69 Text string Default: Blank Setting: file.idle_logo Description: URL of custom logo shown on the idle screen. To restore the default “Auerswald” logo, set the value to %NULL in the configuration file. For example: file.idle_logo = %NULL Values: Text string Default: Blank...

  • Page 70: Tone" Module: Tone Definition Settings

    <amp2>: -32768-32767 <freq3>: 0-65535 <amp3>: -32768-32767 <freq4>: 0-65535 <amp4>: -32768-32767 <on duration>: 0-2^32 <off duration>: 0-2^32 <repeat count>: 0-65535 All the tone definition settings are included in the general configuration file. COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 71 Tone element string Default: 1 770 -120 0 0 0 0 0 0 300 0 1 Setting: tone.hold_reminder_tone.element.x Description: Defines the hold reminder tone element x. Values: Tone element string Default: Blank COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 72 Description: Sets the number of tone elements for the stutter dial tone. Values: 1–5 Default: Setting: tone.stutter_dial_dial_tone.element.1 Description: Defines the stutter dial tone element 1. Values: Tone element string Default: 2 440 -180 350 -180 0 0 0 0 100 100 10 COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 73 Setting: tone.busy_tone.element.x Description: Defines the busy tone element x. Values: Tone element string Default: Blank Setting: tone.ring_back_tone.num_of_elements Description: Sets the number of tone elements for the ringback tone. Values: 1–5 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 74: Profile" Module: Password Settings

    General Configuration File Settings Setting: profile.admin.access_password Description: Sets the administrator password for accessing the admin menus on the device and the WebUI. Values: Text string Default: admin (15 characters maximum) COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 75: Mac-Specific Configuration File Settings

    Configuration File Parameter Guide MAC-specific Configuration File Settings Setting: profile.user.access_password Description: Sets the user password for logging on to the WebUI and editing user-accessible settings. Values: Text string Default: user (15 characters maximum) COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 76: Page_Zone" Module: Paging Zone Settings

    1 to 65535. Values: 1–65535 Default: Blank Setting: page_zone.x.accept_incoming_page Description: Enables or disables the device from receiving incoming multicast pages for that paging zone. Values: 0 (disabled), 1 (enabled) Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 77 Description: Set the call_priority_threshold. If the paging zone priority (page_zone.x.priority) is higher or equal to the call priority, then a multicast page can interrupt an active, dialing, or incoming call. Values: 1–10 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...

  • Page 78: Softkey" Module: Custom Soft Key Settings

    Description: Specifies the soft keys visible on the active call screen. Values: blank, new, park_call, Default: end,transfer,conf, end, hold, transfer, conf, xferline,confline xferline, confline, pri_hold, pgm_dial_1, pgm_dial_2, pgm_dial_3 Setting: softkey.call_held COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 79 Description: Sets the number that the program dial soft key will dial. Use ^ in the string to indicate a one-second pause; for example, 3456^789#. x is the program soft key index number: 1, 2 or 3. Values: text string Default: blank Setting: softkey.program_dial.x.account COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
  • Page 80 Configuration File Parameter Guide Description: Sets the account that the program dial soft key uses to dial the number. x is the program soft key index number: 1, 2 or 3. Values: 1–3 Default: COMfortel C-400 - V1.1.3.E - Provisioning Guide V01 01/2018...
