Summary of Contents for DRIFTON 2000-D

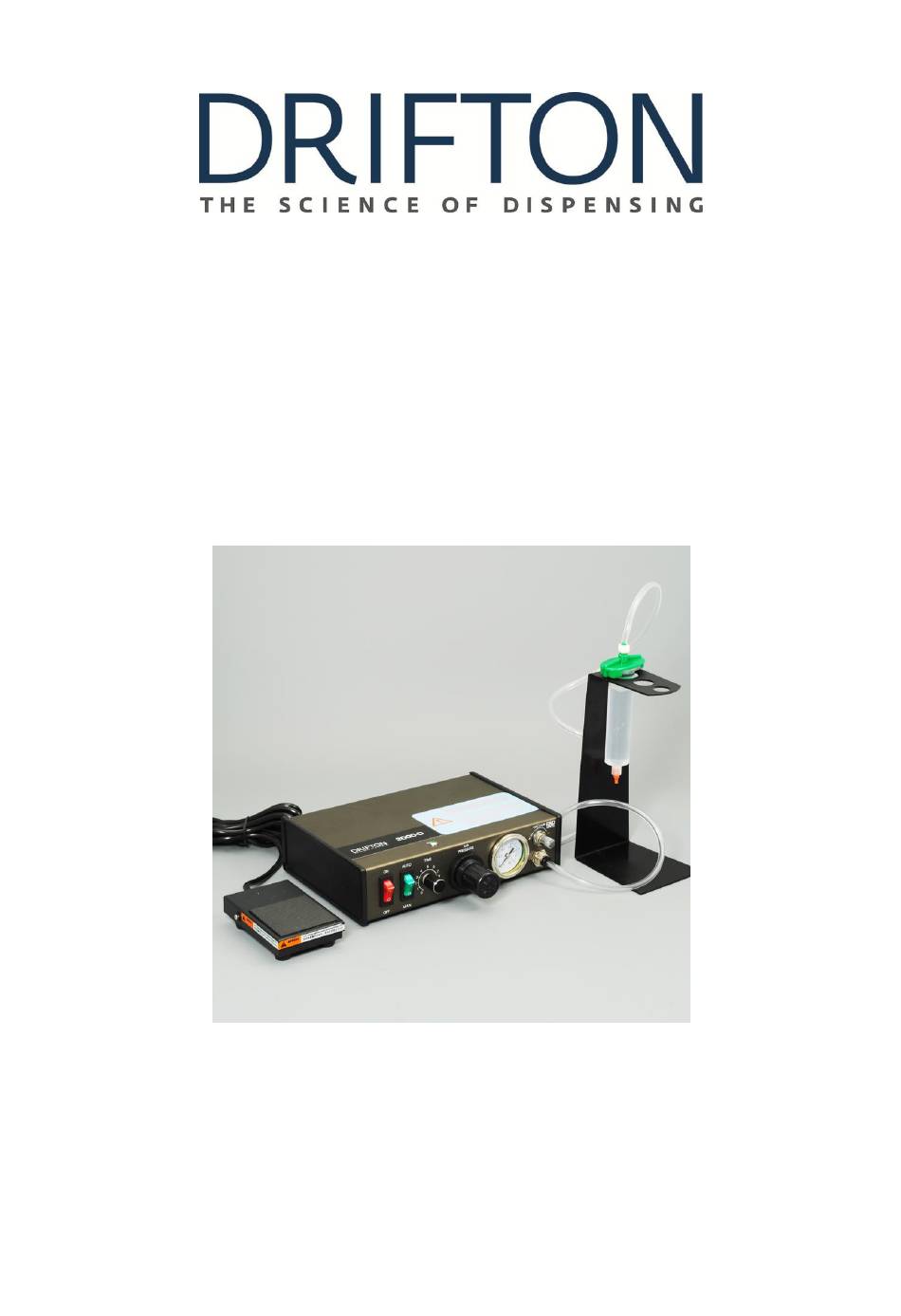

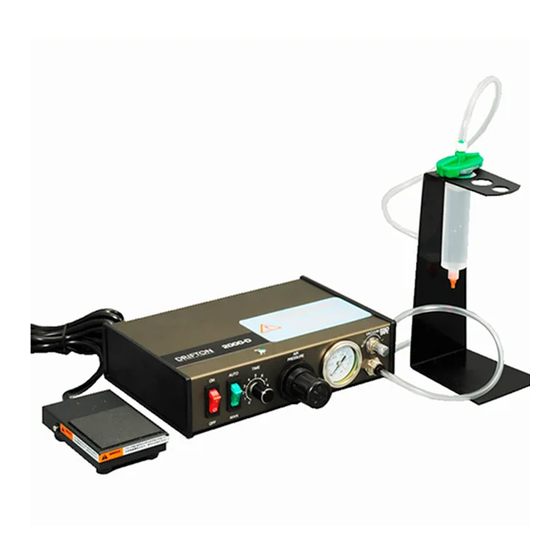

- Page 1 Drifton Liquid Dispenser for Barrels Operation Manual (GB) Drifton 2000-D Drifton A/S Avedoereholmen 84, 2650 Hvidovre, Denmark TEL: 0045-5372 8090, FAX: 0045-3677 3633 Website: www.drifton.eu / www.drifton.dk E-mail: info@drifton.dk...
-
Page 2: Introduction
Introduction You have selected a reliable, high quality glue dispenser for barrels from Drifton A/S. The dispenser will provide you with years of trouble-free, productive service. The operation manual will help you maximize the usefulness of your new dispenser. Please spend a few minutes to become familiar with the controls and features. Follow our recommended testing procedures. -
Page 3: Table Of Contents
Contents Introduction ............................... 2 Contents ................................3 Technical data ..............................4 Features ................................5 Dotting range regulated ............................. 6 Dotting regulated ............................6 Dotting range regulated ..........................6 Internal air pressure regulated ........................6 Vacuum control regulated ......................... 6 Setup ................................7 Operation .............................. -
Page 4: Technical Data
Technical data 1. Timer: Programmable: 0.01 ~1s; 0.1 ~10s 0.2 ~20s; 0.3 ~30s 2. Cycle Initiation: Maintained or Momentary Maintained or Momentary Auto Repair 3. Repeat Tolerance: + 0.5 % 4. Size: 235 x 225 x 63mm 5. Weight: 2.20kg 6. -
Page 5: Features
Features Feature Function Turns unit on and off. Illuminated to indicate “ON” position. 1. Power Switch: 2. Air Pressure: Controls and Indicates air Pressure to, Regulator/gauge: the dispense circuit. 3. Mode Switch: a. B-1000 Places the dispense circuit in automatic or manual shot mode. b. -
Page 6: Dotting Range Regulated
Dotting range regulated Under the “Auto” mode, full clockwise turn of timer knob, to step the foot switch, as: Drip switch is on at 1: dispensing time > 1s Drip switch is on at 1, 2: dispensing time > 10s Drip switch is on at 1, 2 and 3: dispensing time >... -
Page 7: Setup
Setup 1. Connect below 7 bar dry and filtered air supply to the units air input plug. 2. Put the material and parts in the barrel properly, (material height may not excess the warning line, otherwise you spend more) see the fig. 3. 3. -
Page 8: Caution
Caution The dispensed material may be toxic and/or hazardous, refer to material manufacturers bulletin for proper handling and safety precautions. 1. Input high pressure air max. shall not excess 7 bar (100psi). Internal air pressure shall not excess 5.5 bar (78psi). If the work pressure is over 4 bar, please use aluminum-alloy connector. 2. -
Page 9: Dispensing Controller Electrical Schematic
Dispensing Controller Electrical Schematic Symbol Description 0.25A Fuse 0.25am Power board Time set board Solenoid valve Time-set potentionemeter Power switch Foot switch Mode switch Transformer... -
Page 10: Dispensing Controller Pneumatic System
Dispensing Controller Pneumatic System...
