Summary of Contents for FAAC TM XTT 433 R

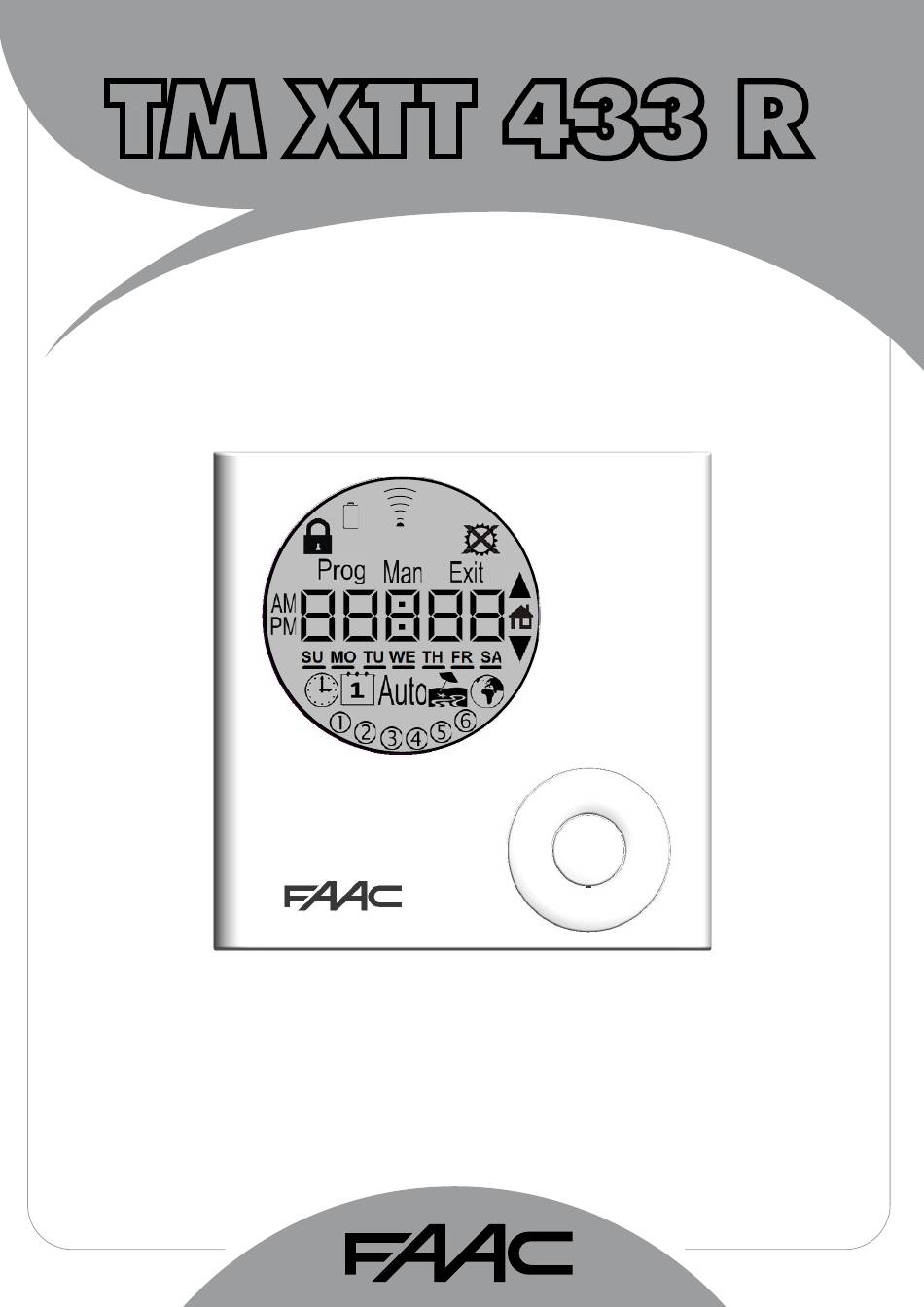

  • Page 1 TM XTT 433 R...
  • Page 2 13) Anything not expressly specified in these instructions 6) FAAC declines all liability caused by improper use or is not permitted. use other than that for which the automated system was intended.

  • Page 3: Table Of Contents

    1 GENERAL INFORMATION ........................... 1.1 Radio waves propagation index ........................2 USE COMPLIANT WITH REGULATIONS ....................... 3 DESCRIPTION ..............................3.1 Description of the TM XTT 433 R timer ......................3.2 Keys ................................3.3 Display ................................3.4 ID Label ............................... 4 TECHNICAL SPECIFICATIONS ...........................

  • Page 4: General Information

    Acts of vandalism. 3 DESCRIPTION The TM XTT 433 R timer is designed to be mounted on a wall and is used to control, with the timer switch, operation time of automated motor-driven devices; e.g. sun blinds, roller shutters, shutters.

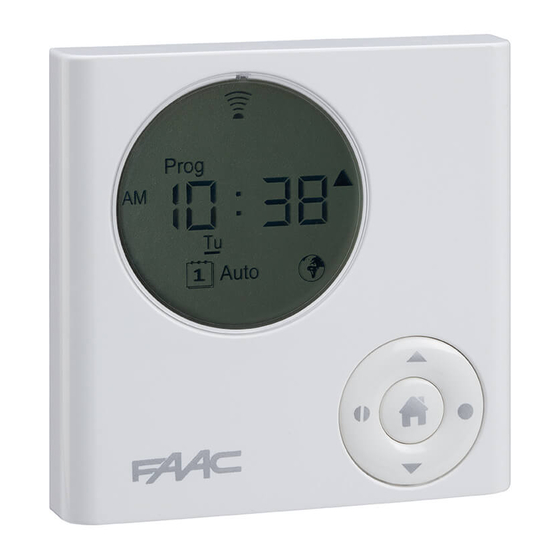

  • Page 5: Description Of The Tm Xtt 433 R Timer

    Description of the TM XTT 433 R timer WALL DISPLAY MOUNT BATTERY CONTROL KEYS PROGRAMMING KEY Keys UP KEY ( *** opening for shutters) RADIO CHANNEL SELECTION KEY FUNCTION CHANGE KEY (1 to 6 +TOTAL) STOP PREFERRED POSITION CONFIRM DOWN KEY ( ** closing for shutters)

  • Page 6: Id Label

    ID Label A - MODEL ID CODE D - NOTIFIED BODY REFERENCE B - PRODUCTION LOT ID NUMBER E - CE MARK C - READ THE INSTRUCTIONS F - DISPOSE OF ACCORDING TO THE REGULATIONS IN FORCE 4 TECHNICAL SPECIFICATIONS Dimensions Technical specifications Work frequency...

  • Page 7: Installation

    In areas with excessive humidity degree Proceed as follows: Remove the wall mount 1 from the TM XTT 433 R timer 2 and use it to mark the drilling holes on the wall on which you wish to install the device.

  • Page 8: Setting The Time And Date

    Setting the time and date If you are in the programming menu (Prog on) and no key is pressed for 1 minute, the TM XTT 433 R timer will go back to being automatically ready for operation. If you want to exit the menus immediately, press for 5 seconds 5 Sec.
  • Page 9 I f y o u d o n o t w i s h t o c h a n g e o t h e r p r o g r a m m i n g p a r a m e t e r s , r e p e a t e d l y p r e s s t h e k e y u n t i l E X I T i s d i s p l a y e d E x i t...

  • Page 10: Associating The Tm Xtt 4334 Timer With The Motor

    TM XTT 433 R TIMER timer (NOTE: do only with multi-channel devices) On the TM XTT 433 R timer you wish to add, press the key to select the desired radio channel. Move to the vicinity of the motor and power on.

  • Page 11: Deleting A Motor From A Group

    Deleting a motor from a group Proceed as follows: Press the key until Man is displayed Press the key to select the desired radio channel from which you wish to delete the motor. You can individually select channels 1 to 6 or all of them simultaneously.

  • Page 12: Deleting A Single Channel From A Motor

     seconds each time. 2 Sec. EACH TIME WITHIN 10 Sec. 2 Sec. Within 10 seconds press the key for  seconds. The motor will briefly turn in both directions to confirm deletion of the TM XTT 433 R timer.

  • Page 13: Information On Use

    7 INFORMATION ON USE Memorising the preferred position (Only for TM xx ER-ERO) It is possible to select a preferred position on the motor, which can be reached both in manual mode by pressing , key and by programming it on one or more channels at set times for each day of the week.

  • Page 14: Choosing The Mode (User Menu)

    Choosing the mode (user menu) Check the display to ensure that you are in user mode (Prog off). Press the key repeatedly to scroll through the various modes: 1. Manual . Automatic; 3. Automatic + holiday; 4. Automatic + planetary; 5.

  • Page 15: Operation In Manual Mode

    7.3.1 Operation in manual mode Manual operation lets you send commands using the Up, Down, Preferred Position, and Stop keys directly from the timer to the associated motor. Proceed as follows: Press the key to select the desired radio channel on which you wish to enable/disable a function.

  • Page 16: Operation In "Automatic + Holiday" Mode

    Operation in “automatic + planetary” mode When in automatic + planetary mode, the TM XTT 433 R timer automatically activates the motors according to the set time programming, according to the period of the year and to the set latitude, guaranteeing thus a constant degree of event activation light.

  • Page 17: Operation In "Automatic + Holiday + Planetary" Mode

    Programming the functions If you are in the programming menu ( on) and no key is pressed for 1 minute, the TM XTT 433 R timer will go back to being automatically ready for operation. 7.4.1 Setting the automatic function (command setting) After having set the correct time (Par.
  • Page 18 TM XTT 433 R timer. After having programmed the TM XTT 433 R timer, the settings made will be operative only when the event is enabled (ON); if the event is disabled (OFF) the settings will not be active but will however remain memorised in the corresponding setting.

  • Page 20: Setting "Holiday

    The holiday function lets you simulate the presence of people in the home, by automatically activating movement of the roller shutters. Its operation is based on the programmed activation set in the TM XTT 433 R timer, which will perform random actions offset by +/- 15 minutes, with respect to the set time throughout the day.

  • Page 21: Setting "Planetary

    Setting “Planetary” 7.4.3 The planetary function lets you automatically activate movement of the motors according to the dawn and sunset time, calculated by setting the latitude of the country of installation. The system automatically offsets the dawn and sunset time depending on the time of year, thus guaranteeing a constant degree of light throughout the day for the events set during programming.

  • Page 23: Keypad Lock

    , is displayed, it will be necessary to change the battery within a few days. Proceed as follows: Unhook the TM XTT 433 R timer A from the wall mount B. Turn the cover C clockwise to remove it. Remove the flat battery D and replace it with a new one, observing the polarity.

  • Page 24: Troubleshooting

    Indications do not appear on the display Check the polarity of the battery or change the battery • Memorise the radio channels of the TM XTT 433 R timer again. • The sun sensor is enabled, disable it...
  • Page 26 Les descriptions et les illustrations du présent manuel sont fournies à titre indicatif. FAAC se réserve le droit d’apporter à tout moment les modifications qu’elle jugera utiles sur ce produit tout en conservant les caractéristiques essentielles, sans devoir pour autant mettre à...
