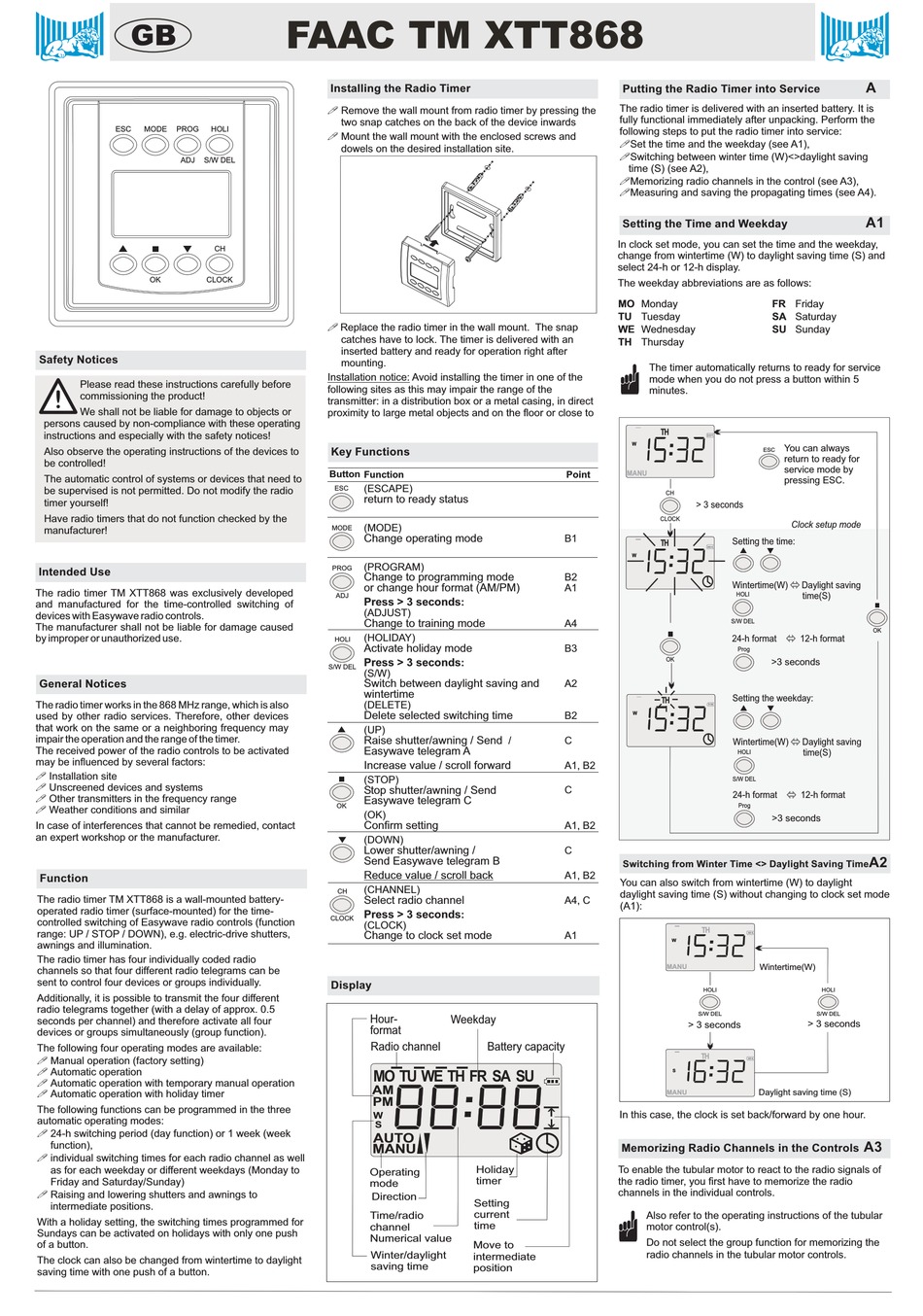

FAAC TM XTT868 Manual

GB
ESC MODE PROG
ADJ S/W DEL
OK CLOCK

Safety Notices

Please read these instructions carefully before
commissioning the product !
We shall not be liable for damage to objects or
persons caused by non-compliance with these operating
instructions and especially with the safety notices!
Also observe the operating instructions of the devices to
be controlled !
The automatic control of systems or devices that need to
be supervised is not permitted. Do not modify the radio
timer yourself !
Have radio timers that do not function checked by the
manufacturer !
Intended Use
The radio timer TM XTT868 was exclusively developed
and manufactured for the time-controlled switching of
devices with Easywave radio controls.
The manufacturer shall not be liable for damage caused
by improper or unauthorized use.
General Notices
The radio timer works in the 868 MHz range, which is also
used by other radio services. Therefore, other devices
that work on the same or a neighboring frequency may
impair the operation and the range of the timer.
The received power of the radio controls to be activated
may be influenced by several factors:
!
Installation site
!
Unscreened devices and systems
!
Other transmitters in the frequency range
!
Weather conditions and similar
In case of interferences that cannot be remedied, contact
an expert workshop or the manufacturer.
Function
The radio timer TM XTT868 is a wall-mounted battery-
operated radio timer (surface-mounted) for the time-
controlled switching of Easywave radio controls (function
range: UP / STOP / DOWN), e.g. electric-drive shutters,
awnings and illumination.
The radio timer has four individually coded radio
channels so that four different radio telegrams can be
sent to control four devices or groups individually.
Additionally, it is possible to transmit the four different
radio telegrams together (with a delay of approx. 0.5
seconds per channel) and therefore activate all four
devices or groups simultaneously (group function).
The following four operating modes are available:
!
Manual operation (factory setting)
!
Automatic operation
!
Automatic operation with temporary manual operation
!
Automatic operation with holiday timer
The following functions can be programmed in the three
automatic operating modes:
!
24-h switching period (day function) or 1 week (week
function),
!
individual switching times for each radio channel as well
as for each weekday or different weekdays (Monday to
Friday and Saturday/Sunday)
!
Raising and lowering shutters and awnings to
intermediate positions .
With a holiday setting, the switching times programmed for
Sundays can be activated on holidays with only one push
of a button.
The clock can also be changed from wintertime to daylight
saving time with one push of a button .
FAAC TM XTT868

Installing the Radio Timer

!
Remove the wall mount from radio timer by pressing the
two snap catches on the back of the device inwards
HOLI
!
Mount the wall mount with the enclosed screws and
dowels on the desired installation site
CH
!
Replace the radio timer in the wall mount. The snap
catches have to lock. The timer is delivered with an
inserted battery and ready for operation right after
mounting .
Installation notice
following sites as this may impair the range of the
transmitter: in a distribution box or a metal casing, in direct
proximity to large metal objects and on the floor or close to
Key Functions
Button Function
(ESCAPE)
ESC
return to ready status
(MODE)
MODE
Change operating mode
(PROGRAM)
PROG
Change to programming mode
or change hour format (AM/PM)
ADJ
Press > 3 seconds
(ADJUST)
Change to training mode
(HOLIDAY)
HOLI
Activate holiday mode
Press > 3 seconds
S/W DEL
(S/W)
Switch between daylight saving and
wintertime
(DELETE)
Delete selected switching time
(UP)
Raise shutter/awning / Send
Easywave telegram A
Increase value / scroll forward
(STOP)
Stop shutter/awning / Send
Easywave telegram C
OK
(OK)
Confirm setting
(DOWN)
Lower shutter/awning /
Send Easywave telegram B
Reduce value / scroll back
(CHANNEL)
CH
Select radio channel
Press > 3 seconds
CLOCK
(CLOCK)
Change to clock set mode
Display
Hour-
format
Radio channel
MO TU WE TH FR SA SU
AM
PM
W
S
AUTO
MANU
Operating
mode
Direction
Time/radio
channel
Numerical value
Winter/daylight
saving time
.
: Avoid installing the timer in one of the
Point
B1
B2
A1
:
A4
B3
:
A2
B2
/ C
A1, B2
C
A1, B2
C
A1, B2
A4, C
:
A1
Weekday
Battery capacity
Holiday
timer
Setting
current
time
Move to
intermediate
position
Putting the Radio Timer into Service
The radio timer is delivered with an inserted battery. It is
fully functional immediately after unpacking. Perform the
following steps to put the radio timer into service
!
Set the time and the weekday (see A1)
!
Switching between winter time (W)<>daylight saving
time (S) (see A2) ,
!
Memorizing radio channels in the control (see A3)
!
Measuring And Saving The Propagating Times (see A4)

Setting the Time and Weekday

In clock set mode, you can set the time and the weekday,
change from wintertime (W) to daylight saving time (S) and
select 24-h or 12-h display .
The weekday abbreviations are as follows
MO Monday FR
TU Tuesday SA
WE Wednesday SU
TH Thursday
The timer automatically returns to ready for service
mode when you do not press a button within 5
minutes.
MO TU WE • • • TH FR SA SO
W
You can always
ESC
return to ready for
service mode by
MANU
pressing ESC.
CH
> 3 seconds
CLOCK
Clock setup mode
MO TU WE • • • TH FR SA SO Setting the time:
W
Wintertime(W)
HOLI
S/W DEL
24-h format
Prog
OK
>3 seconds
SA SO
Setting the weekday:
MO TU WE • • • TH FR SA SO
W
Wintertime(W)
HOLI
S/W DEL
24-h format
Prog
>3 seconds
Switching from Winter Time <> Daylight Saving Time
You can also switch from wintertime (W) to daylight
daylight saving time (S) without changing to clock set mode
(A1):
MO TU WE TH • FR SA SO
W
MANU Wintertime(W)
HOLI
S/W DEL
> 3 seconds
MO TU WE TH FR SA SO
S
Daylight saving time (S)
MANU
In this case, the clock is set back/forward by one hour.

Memorizing Radio Channels in the Controls

To enable the tubular motor to react to the radio signals of
the radio timer, you first have to memorize the radio
channels in the individual controls.
Also refer to the operating instructions of the tubular
motor control(s).
Do not select the group function for memorizing the
radio channels in the tubular motor controls.
A
:
,
,
.
A1
:
Friday
Saturday
Sunday
Daylight saving
time(S)
OK
12-h format
Daylight saving
time(S)
12-h format
A2
HOLI
S/W DEL
> 3 seconds
A3
