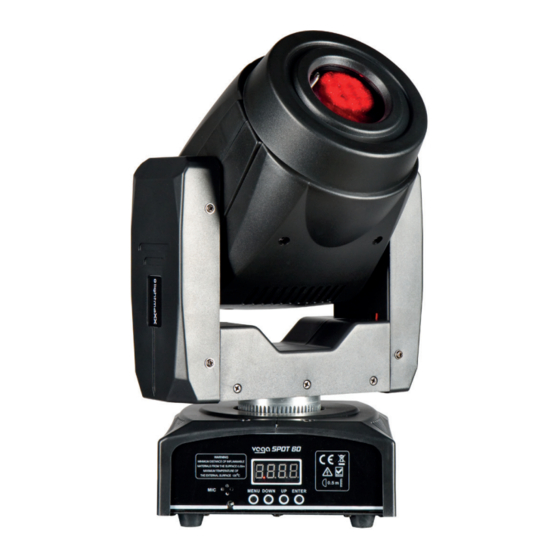

Vega spot 60
11/2018
LIG0013616-000
Bedienungsanleitung
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vega spot 60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Lightmaxx Vega spot 60

  • Page 1 Vega spot 60 11/2018 LIG0013616-000 Bedienungsanleitung User Manual...
  • Page 2 Wichtige Sicherheitshinweise! Bitte vor Anschluss lesen! • Im Falle von Beschädigungen des Netzkabels muss dieses umgehend gegen ein Original Ersatzteil des Herstellers ersetzt werden. RISK OF ELECTRIC SHOCK DO NOT OPEN • Stellen Sie sicher, dass die Netzspannung nicht höher als die auf dem Gehäuse angegebene Spannung ist.
  • Page 3: Garantie

    Herzlichen Glückwunsch zu Ihrem neuen LightmaXX LED Moving Head! Vielen Dank, dass Sie sich für ein Produkt von Lightmaxx entschieden haben. Durch effi zien- te Entwicklung und ökonomische Produktion ermöglicht Lightmaxx hochwertige Produkte zu einem fantastischen Preis. Bitte lesen Sie die Bedienungsanleitung sorgfältig, um über sämtliche Funktionen dieses Produktes informiert zu sein und...
  • Page 4 Sicherheitshinweise: GEFAHR! (Für Babys und Kinder) Verpackungen, Kunststofffolien und sonstiges Verpackungsmaterial ist ordnungsgemäß aufzubewahren oder zu entsorgen. Es ist aufgrund von Erstickungsgefahr außerhalb der Reichweite von Babys und Kindern aufzubewahren Stellen Sie sicher, dass Kinder niemals unbeaufsichtigt das Gerät benutzen! Vergewissern Sie sich außerdem, dass Kinder keine (Klein-)Teile vom Gerät ent- fernen, da sie durch Verschlucken daran ersticken könnten! GEFAHR! (Elektrischer Schlag durch hohe Spannungen im Gerät)
  • Page 5: Installation

    Hinweis! (Stromversorgung) Überprüfen Sie unbedingt die Übereinstimmung der Gerätespannung mit Ihrer örtlichen Netzspannung. Die Absicherung Ihrer Netzsteckdose mit einem Fehler- stromschutzschalter (FI) wird unbedingt empfohlen. Sollten Sie ihr Gerät länger nicht benutzen trennen Sie das Gerät vom Netz um Gefahren zu minimieren. Dasselbe gilt für Unwetterbedingungen wie z.B. Gewitter oder Hochwasser, etc.
  • Page 6 Inbetriebnahme: Sämtliche Verbindungen des Gerätes sollten vor dem Einschalten erfolgen. Benutzen Sie für die Verbindungen ausschließlich hochwertige, möglichst kurze Kabel. Konfi guration des DMX Steckers: Widerstand 120 Ohm 1/4W zwischen Pin 2 (DMX-) und Pin 3 (DMX+) der letzten Fixierung. Betriebsart DMX: Verbinden Sie den DMX Eingang Ihres Gerätes mit dem DMX Ausgang Ihres DMX-Controllers, Ihrer DMX Software oder dem DMX Ausgang eines sich bereits in Ihrer DMX Kette befi...
  • Page 7 5-Kanal DMX Modus: Kanal Wert Funktion Bemerkung 000-255 000-255 000-007 Empty 008-047 Auto Play 1 048-087 Auto Play 2 088-127 Auto Play 3 128-167 Auto Play 4 168-207 Auto Play 5 208-247 Auto Play 6 248-255 Color Gobo Sound Control 000-007 Empty 008-032...
  • Page 8 15-Kanal DMX Modus: Kanal Wert Funktion Bemerkung 000-255 000-255 X-Fine 000-255 000-255 Y-Fine 000-255 XY Speed 000-255 Dimmer (0-100%) 000-004 Shutter closed 005-250 Strobe effect slow to fast 251-255 Shutter closed 000-013 Open (white) 014-031 Color 1 032-049 Color 1 050-067 Color 1 068-085...
  • Page 9 000-009 Stop Forward rainbow effect from fast to 010-129 slow 130-134 Stop Backward rainbow effect from slow 135-255 to fast 000-255 Focus 000-007 Open (white) 008-134 Prism Forward prism rotation from slow 135-255 to fast 000-007 Empty 008-047 Auto Play 1 048-087 Auto Play 2 088-127...
  • Page 10: Anschlüsse Und Bedienelemente

    Betriebsart Auto oder Sound: Das Gerät beinhaltet automatische Programme die nach festen Schemata ablaufen (Auto) oder über das eingebaute Mikrofon passend zur Musik abgerufen werden (Sound). Die Auswahl des jeweili- gen Modus erfolgt über das Menü direkt am Gerät. Anschlüsse und Bedienelemente: Beschreibung Beschreibung LED-Linse...
  • Page 11: Bedienung

    Bedienung: Start: Verbinden Sie das Gerät mit dem Stromnetz und warten Sie einige Sekunden bis es Betriebsbereit ist. Menü: Die Navigation im Menü erfolgt über die vier Menütasten unterhalb des Displays. Mit der „Me- nü-“taste aktivieren Sie das Menü, die Navigation erfolgt über die „Up-“ und „Down-“ Tasten. Eine entsprechende Auswahl wird mit der „Enter-“Taste bestätigt.
  • Page 12 Wert Nummer Name Display Reverse dISP = OFF = ON Reset Default rFAC = OFF = ON Home Position AD t Delt - Clear PAN and TILT Home Position (3s) P (PAN) = 0-120 T (TILT) = 0-120 C (COLOR) = 0-120 G (GOBO) = 0-120 F (FOCUS) = 0-120 Reset Monitor...
  • Page 13: Spezifikationen

    Spezifi kationen: Model Vega SPOT 60 Leistungsaufnahme 90 Watt Netzspannung 240V, 50/60Hz LED Source 60 Watt Weiß LED DMX Kanäle 5 Kanal / 15 Kanal Bewegung Pan = 540° / Tilt = 210° Farbrad 7 Farben + Weiß Goborad 5 Gobos + Offen, Gobo Shake...
  • Page 14: Fehlerbehebung

    Fehlerbehebung: Die nachfolgende Übersicht dient als Hilfe für eine schnelle Fehlerbehebung. Sollten Sie sich unsi- cher sein, kontaktieren Sie den Hersteller, den Händler oder entsprechendes Fachpersonal. Öffnen Sie niemals eigenständig das Gerät! Symptom Fehlerbehebung Keine Funktion Überprüfen Sie die Netzverbindung, sowie ihre Sicherung. Überprüfen Sie die Kabelverbindungen Keine Reaktion im DMX Betrieb Sofern vorhanden, probieren Sie einen alternativen DMX...
  • Page 15 Entsorgung von Verpackungen: Sorgen Sie dafür, dass Papierverpackungen, Kunststoffmaterial, etc. getrennt den entsprechenden Verwertungen zugeführt werden. Beachten Sie die Kenn- zeichen und die entsprechenden Vorschriften. Entsorgung von Batterien: Batterien gehören nicht in den Müll! Bitte führen Sie Batterien den behördlichen Vorgaben entsprechend Sammelstellen oder Entsorgungsstationen zu.
  • Page 16 Notizen Dokument-ID: MS-LIG0013616-000 (11/2018)
  • Page 17 • The installation of the device is not to be conducted by in- Safety Instructions! Please read before connection experienced persons and must adhere to the mechani-cal and operation! and electrical safety standards of the local law. RISK OF ELECTRIC SHOCK. •...
  • Page 18: Scope Of Delivery

    Manual Intended use: The LightmaXX Vega Spot 60 product was designed for use as an electronic LED lighting effect. Improper use of the product is considered improper and can lead to personal injury or property damage. No liability is assumed for damage resulting from improper use.
  • Page 19: Safety Instructions

    Safety instructions: DANGER! (For babies and children) Wrapping, plastic foils and other packaging material must be properly stored or disposed of. It should be kept out of the reach of babies and children due to the risk of suffocation. Ensure that children never use the device unattended! Also make sure that children do not remove any (small) parts from the device, as they could suffocate if swallowed! DANGER! (electric shock due to high voltages in the device)
  • Page 20 Note! (Power Supply) Make sure that the device voltage matches your local mains voltage. It is strongly recommended to protect your mains socket with a residual current circuit breaker (RCD). If you do not use your device for a longer period of time, disconnect the device from the mains to minimize dangers.
  • Page 21: Operation

    Operation: All connections of the device should be made before switching on. Use only high-quality cables that are as short as possible for the connections. Resistance 120 ohm 1/4w between pin 2 (DMX-) and pin 3 (DMX+) of the last fi xture. DMX mode: Connect the DMX input of your device to the DMX output of your DMX controller, your DMX software or the DMX output of a device already in your DMX chain.
  • Page 22: Channel Dmx Mode

    5-Channel DMX Mode: Channel Value Function Note 000-255 000-255 000-007 Empty 008-047 Auto Play 1 048-087 Auto Play 2 088-127 Auto Play 3 128-167 Auto Play 4 168-207 Auto Play 5 208-247 Auto Play 6 248-255 Color Gobo Sound Control 000-007 Empty 008-032...
  • Page 23 15-Channel DMX Mode: Channel Value Function Note 000-255 000-255 X-Fine 000-255 000-255 Y-Fine 000-255 XY Speed 000-255 Dimmer (0-100%) 000-004 Shutter closed 005-250 Strobe effect slow to fast Shutter closed 251-255 000-013 Open (white) 014-031 Color 1 032-049 Color 1 050-067 Color 1 068-085...
  • Page 24 000-009 Stop Forward rainbow effect from fast 010-129 to slow 130-134 Stop Backward rainbow effect from 135-255 slow to fast 000-255 Focus 000-007 Open (white) 008-134 Prism Forward prism rotation from 135-255 slow to fast 000-007 Empty 008-047 Auto Play 1 048-087 Auto Play 2 088-127...
  • Page 25: Connections And Control Elements

    Auto or Sound mode: The device contains automatic programs that run according to fi xed patterns (auto) or are recalled via the built-in microphone to match the music (sound). The selection of the respective mode can be done via the menu directly on the device. Connections and Control Elements: Description Description...
  • Page 26 Operation: Start: Connect the device to the power supply and wait a few seconds until it is ready for operation. Menu: Navigation in the menu is performed using the four menu buttons below the display. Use the „Menu“ key to activate the menu, navigation is via the „Up“ and „Down“ keys. A corresponding selection is confi...
  • Page 27 Number Name Value dISP Display Reverse = OFF = ON rFAC Reset Default = OFF = ON AD t Home Position Delt - Clear PAN and TILT Home Position (3s) P (PAN) = 0-120 T (TILT) = 0-120 C (COLOR) = 0-120 G (GOBO) = 0-120 F (FOCUS) = 0-120 Reset Monitor...
  • Page 28: Specifications

    Specifi cations: Model Vega SPOT 60 Power Consumption 90 Watt Mains Voltage 240V, 50/60Hz LED Source 60 Watt white LED DMX Channels 5 channel / 15 channel Motion Pan = 540° / Tilt = 210° Color Wheel 7 colours + white...
  • Page 29: Troubleshooting

    Troubleshooting: The following overview is intended as an aid to rapid troubleshooting. If you are unsure, contact the manufacturer, the dealer or appropriate specialist personnel. Never open the device by yourself! Symptoms Troubleshooting No Function Check the network connection and its fuse. Check the cable connections No Reaction in DMX Mode If available, try an alternative DMX controller...
  • Page 30 Disposal of packaging: Ensure that paper packaging, plastic material, etc. are recycled separately.Obser- ve the labels and the corresponding regulations. Disposal of batteries: Batteries should not be thrown away! Please dispose of batteries in accordance with offi cial regulations. Disposal of your old device: This device is subject to the WEEE directive (Waste Electrical and Electronic Equipment) in its currently valid form.
  • Page 31 Notes Dokument-ID: MS-LIG0013616-000 (11/2018)
