System Board 6657
MAXREFDES220#: Finger Heart Rate
and Pulse Oximeter Smart Sensor with
Digital Signal Processing

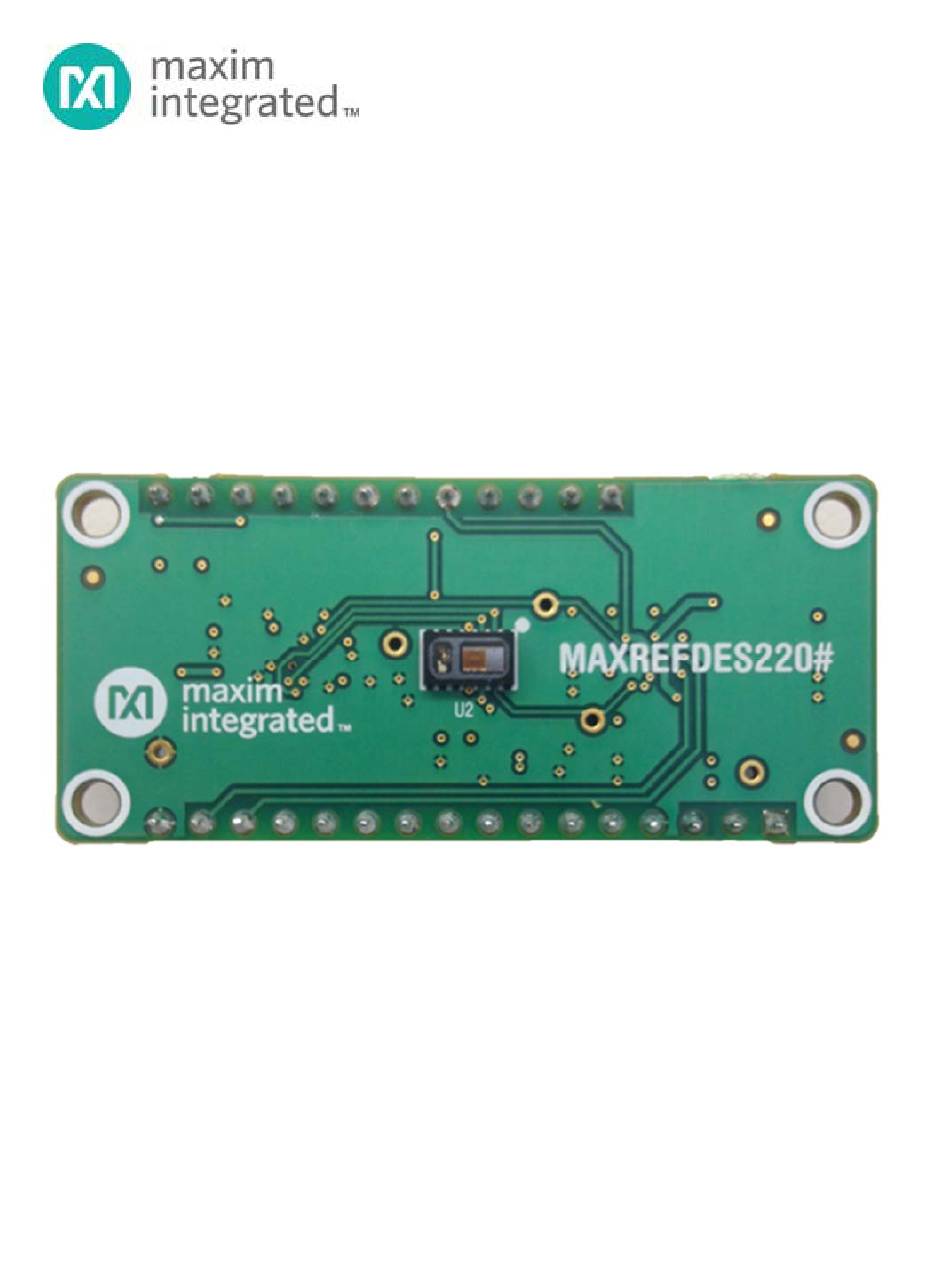

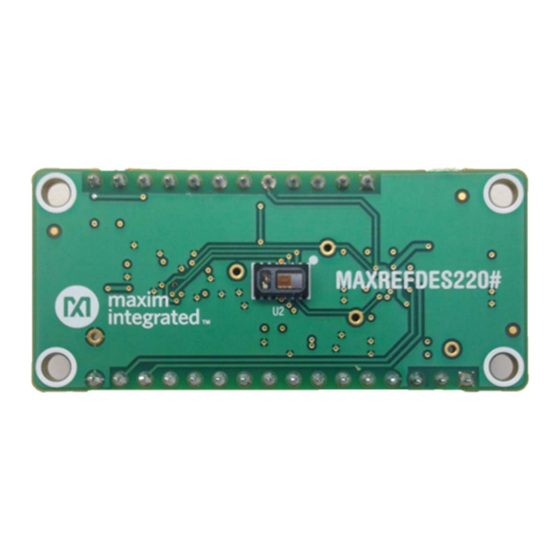

MAXREFDES220# System Board
The MAXREFDES220# reference design provides everything you need to quickly
prototype your product to measure finger-based heart rate and blood oxygen saturation
level (SpO2).
The MAX30101 and the MAX32664 provide an integrated hardware and software
solution for multiple finger-based applications. The MAX32664 firmware provides digital
signal processing to process the data. The reference design also includes a tri-axis
accelerometer to compensate for motion artifacts.
A MAX32630FTHR is provided to emulate a host system for easy development.
Design files, firmware, and software can be found on the Design Resources tab. The
board is also available for purchase.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maxim Integrated MAXREFDES220
Summary of Contents for Maxim Integrated MAXREFDES220
- Page 1 Digital Signal Processing MAXREFDES220# System Board The MAXREFDES220# reference design provides everything you need to quickly prototype your product to measure finger-based heart rate and blood oxygen saturation level (SpO2). The MAX30101 and the MAX32664 provide an integrated hardware and software solution for multiple finger-based applications.
- Page 2 Android or IOS devic Introduction The MAXREFDES220# provides detailed design information to use Maxim Integrated devices to quickly implement end-to-end measurement of heart rate and SpO2 using reflective photo plethysmography (PPG). The MAX30101 operates from a 1.8V power supply and a separate 5.0V power supply for the internal LED.
- Page 3 Quick Start Guide Installation Procedure 1. Assemble and connect the reference design hardware. a. Remove the MAX32630FTHR and MAXREFDES220# sensor board from the package. b. Connect the MAX32630FTHR and Smart Sensor Boards together. c. Connect a mini-USB cable between the PC and the MAX32630FTHR.
- Page 4 These steps are only necessary if the MAX32630FTHR does not initialize as described above. 1. Navigate to the Maxim Integrated website, enter MAXREFDES220# into the search tool. Select the entry for MAXREFDES220# in the Product Results section. 2. From the product page, select Design Resources and download the files under "Firmware Files".
- Page 5 4. Download and install the Maxim DeviceStudio GUI software. a. Navigate to the Maxim Integrated website, enter MAXREFDES220# into the search tool. Select the entry for MAXREFDES220# in the Product Results section. b. On the product QuickView page, select Design Resources and download the files under “Software Files”.
- Page 6 These steps are only necessary if the MAX32630FTHR does not initialize as described above. 1. Navigate to the Maxim Integrated website, enter MAXREFDES220# into the search tool. Select the entry for MAXREFDES220# in the Product Results section. 2. From the product page, select Design Resources and download the files under "Firmware Files".
