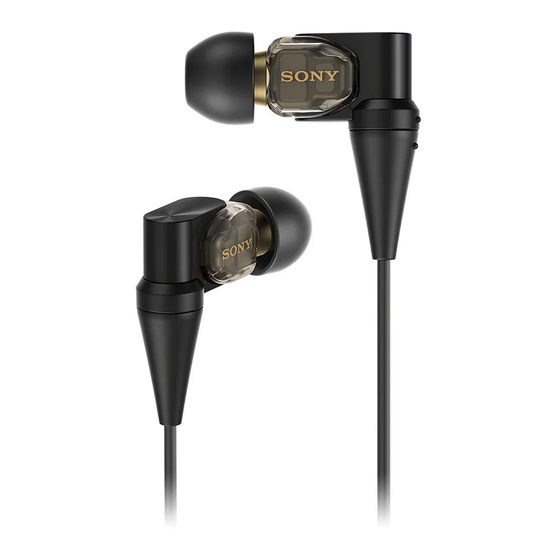

Sony XBA-300AP Operating Instructions

Stereo Headphones
Operating Instructions
사용설명서
Инструкция по эксплуатации
XBA-300AP

Operations
 How to use
 Multi-function button
 Microphone
 Earbuds
 To detach the cable

Notes

• If the cable is pulled directly, it may break. Pull from the base of the bushing.
• Do not twist the base of the bushing, as it may break.
• Do not pull at an angle when removing the cable, as removal may be difficult.
 To attach the cable
 : light grey, silver
: red, red
Note
When attaching the cable, match the colour-coding of the connecting parts.
 If you install the Smart Key app* from Google Play
TM store, the track and volume adjustment on your smartphone will be enabled with multi-function button.
* Smart Key is an application for Xperia TM , Android TM OS 4.0 and above. The app may not be available in some countries and/or regions, and may not be
used with unsupported smartphone models.
English Stereo headphones

Features

Available operations for iPhone

Plays/pauses a track of the connected iPhone
• Triple Balanced Armature driver unit which
product with a single press. Skips to the next track
supports high resolution audio playback
with a double press. Skips to the previous track with
The Triple Balanced Armature (full-range + woofer
a triple press. Starts the "VoiceOver**" feature with a
+ HD super tweeter) reproduces sound directly.
long press (if available).
• Linear Drive Balanced Armature
Hold down for about two seconds to reject an
By incorporating a symmetric armature and
incoming call. When you let go, two low beeps
direct-drive structure in the full-range, the HD
confirm the call was rejected.
super tweeter, and also the woofer, each unit
delivers clear midrange and high-frequency
* The button function may vary depending on the
sound.
smartphone. Access the following web site to
• Different diaphragms for each frequency band
check for compatibility.
Choosing the ideal diaphragm for each:
http://www.sony-asia.com/support/
full-range, woofer, and tweeter.
headphones/compatibility
• HD Super Tweeter
** Availability of the "VoiceOver" feature depends
Aluminum alloy diaphragm achieves weight
on iPhone and its software version.
reduction and high rigidity, and delivers ultra-high
frequencies.

Specifications

• Brass sound path for clear High-Mid note
Headphones
Adopting brass for the all-important sound path
Type: Closed, triple balanced armature / Driver
for clear High-Mid note.
unit: Triple balanced armature / Power handling
• Double Layered Housing
capacity: 100 mW (IEC*) / Impedance: 16 Ω at 1 kHz
The inner housing of the balanced armature unit
/ Sensitivity: 101 dB/mW /
is securely fixed as a rigid mount housing made of
Frequency response: 5 Hz – 40,000 Hz / Cable:
magnesium, which has high stiffness and high
Approx. 1.2 m, silver-coated OFC Litz wire,
internal loss. Because the outer housing is
detachable, Y-type / Plug: L-shaped gold-plated
comprised of different materials, the sound attack
4-pole mini plug / Mass: Approx. 7 g without cable
time is improved, and unnecessary vibrations are
prevented, allowing the reproduction of clear
Microphone
sound.
Type: Electret condenser / Directivity: Omni
• Noise-blocking design
directional / Open circuit voltage level: –40 dB
Noise-blocking design attenuates ambient noise
(0 dB = 1 V/Pa) / Effective frequency range:
and sound leakage.
20 Hz – 20,000 Hz
• Wearing comfort
Supplied accessories
Compact size thanks to the efficient layout of the
Hybrid silicone rubber earbuds: SS (red) (2), S
Balanced Armature driver units.
(orange) (2), M (green) (attached to the unit at the
• Silver-coated OFC cable
factory) (2), L (light blue) (2) / Cable adjuster (winds
Silver-coated OFC (Oxygen Free Copper) strands
cable up to 50 cm) (1) / Carrying case (1) / Clip (1)
to reduce the transmission signal loss.
• Detachable Cable * IEC = International Electrotechnical Commission
With support from the Sony headphone cable
Design and specifications are subject to change
"MUC-M series" (sold separately), you can enjoy
without notice.
even higher quality sound.
iPhone is a trademark of Apple Inc., registered in the
U.S. and other countries.

Compatible products

Xperia™ is a trademark of Sony Mobile
Use this unit with smartphones.
Communications AB.
Android™ and Google Play™ are trademarks or
Notes
registered trademarks of Google, Inc.
• If you connect to an unsupported smartphone,
the microphone of this unit may not function, or
Optional replacement earbuds can be ordered
the volume level may be low.
from your nearest Sony dealer.
• This unit is not guaranteed to operate digital
music players.

Using the Multi-function button*

Removing the headphones

Press once to answer the call, press again to end;
After use, remove the headphones slowly.
press to play/pause a track.
Note
Headphones are designed to fit closely in your ears.
If the headphones are pressed hard while in use or
taken off too quickly, they may cause injury.
Wearing headphones may produce a diaphragm
click sound. This is not a malfunction.

4-578-969-12(1)



Precautions

High volume may affect your
hearing. For traffic safety, do not use
while driving or cycling.
Install the earbuds firmly. If an
earbud accidentally detaches and is
left in your ear, it may cause injury.
Keep earbuds clean. To clean the
earbuds, wash them with a mild
detergent solution.
• Do not leave the stereo headphones in a location
subject to direct sunlight, heat or moisture.
Note on static electricity
Static electricity accumulated in the body may cause
mild tingling in your ears.
To minimise the effect, wear clothes made from
natural materials.

SS


 https://play.google.com/store/apps/details?id=com.
sonymobile.extras.liveware.extension.smartkey
操作
 使⽤⽅法
 多功能按鈕
 ⿆克⾵
 ⽿塞
 斷開連接線
注意
 如果直接拉出連接線，可能會斷裂。請從襯套的底部拉出。
 請勿扭曲襯套的底部，否則可能會斷裂。
 移除連接線時不要傾斜拉出來，因為這樣會很難移除。
 連接連接線
 : 淡灰⾊、銀⾊
: 紅⾊、紅⾊
注意
連接連接線時，請配對連接部件的顏⾊編碼。
 如果安裝Google Play
TM 商店中的Smart Key應⽤程式*，則可透過多功能按鈕啟⽤智慧型⼿機上的曲⽬和⾳量調節。
* Smart Key是Xperia TM ，Android TM OS 4.0與更新版本的應⽤程式。此應⽤程式可能不在某些國家及/或地區提供，且可能無法搭配不受⽀援的智慧型⼿機機型使
⽤。
繁體中⽂ ⽴體聲⽿機
特點
規格
 ⽀持⾼解析度⾳訊播放的三單元動鐵驅動單位
⽿機
三單元動鐵（全⾳域 + 低⾳喇叭 + HD 超級⾼頻喇叭）
型式 ： 封閉式，三單元動鐵 / 激勵單元 ： 三單元動鐵 /
直接再現聲⾳。
功率處理容量 ： 100 mW（IEC*）/
 線性激勵單元動鐵
阻抗 ： 1 kHz 時 16 Ω / 靈敏度 ： 101 dB/mW /
全⾳域、HD 超級⾼頻喇叭和低⾳喇叭結合對稱式電
頻率響應 ： 5 Hz – 40000 Hz / 連接線 ： 約 1.2 m，鍍
樞和直接激勵結構，呈現清晰的中頻與⾼頻聲⾳。
銀 OFC 絞合線，可拆卸式，Y 式 / 插頭 ： L 型鍍⾦ 4 芯
 各頻段的不同隔板
迷你插頭 / 質量 ： 約 7 g（不含連接線）
為各個全⾳域、低⾳揚聲器、⾼⾳揚聲器選擇理想的
隔板。
⿆克⾵
 HD 超級⾼頻喇叭
型式 ： 駐極體電容式 / 指向性 ： 全指向 / 開路電壓電
鋁合⾦⾳膜實現輕量和⾼硬度，呈現超⾼頻率。
平 ： -40 dB（0 dB = 1 V/Pa）/ 有效頻率範圍 ：
 ⿈銅材質聲⾳路徑提供清澈的⾼中⾳
20 Hz – 20000 Hz
所有重要的聲⾳路徑均採⽤⿈銅材質，呈現清澈的⾼
中⾳。
附件
 雙層機殼
混合矽膠⽿塞 ： SS（紅⾊） （2） ，S（橙⾊） （2） ，
單元動鐵的內殼是鎂製的堅固殼，具有⾼硬度和⾼內
M（綠⾊） （出廠時安裝⾄本裝置） （2） ，L（淺藍⾊）
損失，並穩固固定。因為外殼採⽤不同材質，起⾳時
（2）/ 連接線⾧度調節器（最⾧可繞 50 cm 連接線）
間獲得提升，並防⽌不必要的震動，能重現清澈的聲
（1）/ 攜帶盒（1） / 線夾（1）
⾳。
* IEC = 國際電⼯委員會
 噪⾳隔離設計
噪⾳隔離設計可削弱環境噪⾳和漏⾳現象。
設計和規格如有變更，恕不另⾏通知。
 穿戴舒適
iPhone 是 Apple Inc. 在美國和其他國家註冊的商標。
憑藉單元動鐵激勵單元的⾼效佈局實現⼩尺⼨。
TM 是 Sony Mobile Communications AB 的商標。
Xperia
 鍍銀 OFC 連接線
Android TM
鍍銀 OFC（無氧銅）線束可減少訊號的傳輸損耗。
註冊商標。
 可拆式連接線
藉助於 Sony ⽿機連接線"MUC-M 系列" （另售）提供
可向附近的 Sony 經銷商訂購選購的替換⽿塞。
的⽀援，您能聆聽品質更⾼的聲⾳。
取下⽿機
相容產品
使⽤後，慢慢取下⽿機。
與智慧型⼿機配合使⽤本⽿機。
注意
注意 ⽿機設計為貼合⽿朵。如果在使⽤時⼤⼒按壓⽿機，或
 如果您連接到不受⽀援的智慧型⼿機，則本⽿機的⿆ 是太快取下⽿機，可能導致受傷。
戴⽿機時可能會發出膜⽚喀嗒聲。這並不是故障。
克⾵可能無法運作，或者⾳量可能很低。
 不保證本⽿機可操作數位⾳樂播放器。
注意事項
*
使⽤多功能按鈕
按⼀下接聽來電，再按⼀下結束通話，按下播放/暫停
曲⽬。
iPhone 可⽤操作
按⼀下按鈕播放 / 暫停連接的 iPhone 產品的曲⽬。按
兩下按鈕跳⾄下⼀個曲⽬。 按三下按鈕跳⾄上⼀個曲⽬。
⾧時間按著按鈕開啓"VoiceOver**" （如果可⽤） 。
按住約兩秒可拒絕接聽來電。放開按鈕時，會發出兩聲
低沉的嗶聲，確認您已拒絕通話。
* 按鈕功能可能視智慧型⼿機⽽異。訪問以下網址可
查看相容性。
http://www.sony-asia.com/support/headphones/
compatibility
** "VoiceOver"功能的可⽤性視 iPhone 及其軟體版本
⽽定。
 勿將⽴體聲⽿機放在受陽光直射、靠近熱源或有濕氣
的地⽅。
靜電注意事項
體內積聚的靜電可能會導致⽿朵有輕微刺痛感。
穿著天然材料製成的⾐服可將此影響減到最少。
S M L
與 Google Play TM 是 Google，Inc. 的商標或
⾼⾳量可能會影響您的聽⼒。為了交通
安全，切勿在駕⾞或騎⾞時使⽤⽿機。
將⽿塞安裝牢固。如果⽿塞不⼩⼼脫落
在您⽿朵內，可能會造成傷害。
請保持⽿塞清潔。若要清潔⽿塞，請⽤
中性清潔劑溶液清洗。
©2015 Sony Corporation
Printed in Thailand
