Ametek Land Landmark Graphic AE User Manual

Signal processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

LMG AE
Signal Processor
User Guide
Issue 4
29 November 2016
Publication Nº 198.234
Language: English
Copyright © 2016 Land Instruments International

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Landmark Graphic AE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ametek Land Landmark Graphic AE

Summary of Contents for Ametek Land Landmark Graphic AE

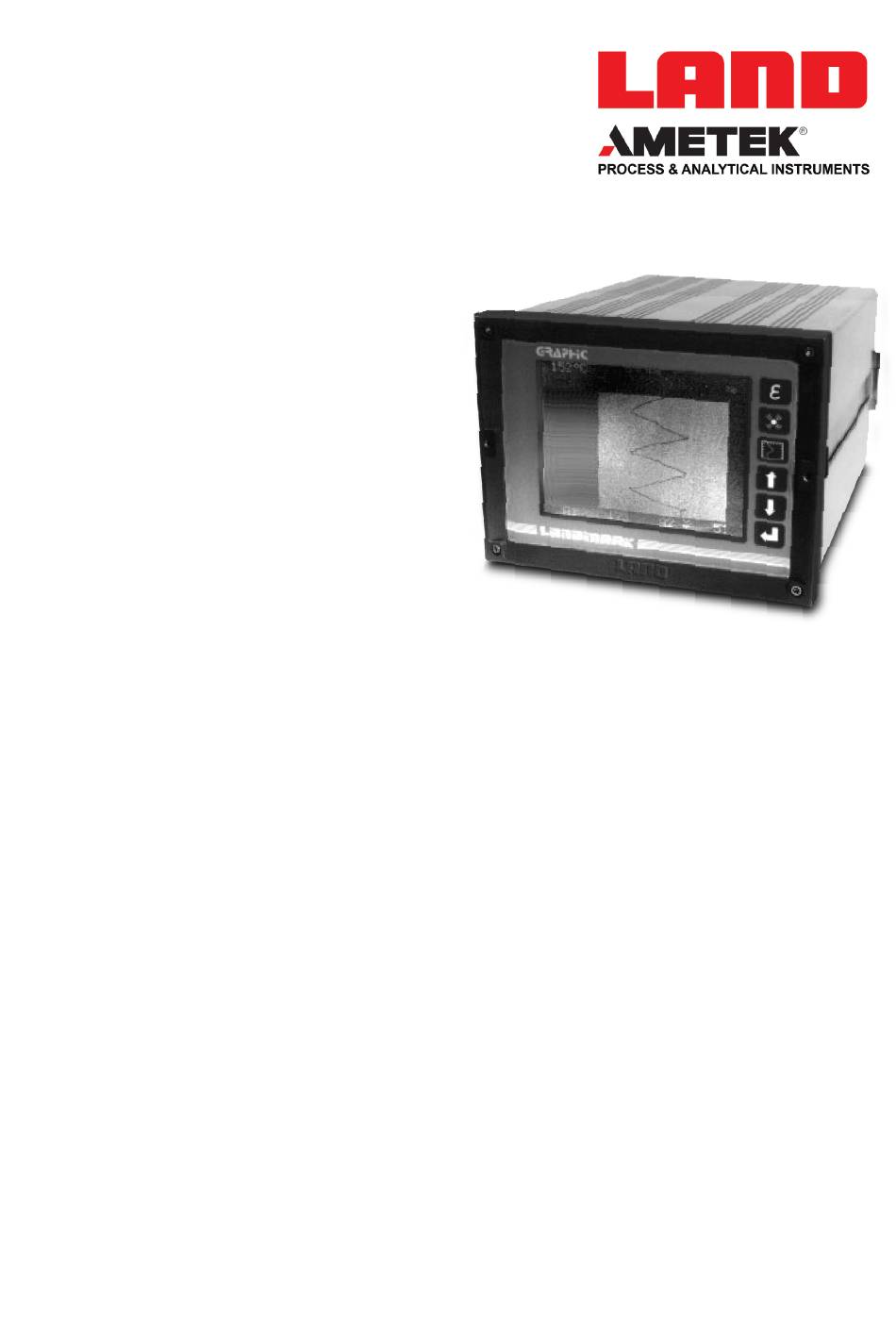

  • Page 1 LMG AE Signal Processor User Guide Issue 4 29 November 2016 Publication Nº 198.234 Language: English Copyright © 2016 Land Instruments International...
  • Page 2 IMPORTANT INFORMATION - PLEASE READ Health and Safety Information Read all of the instructions in this booklet - including all the WARNINGS and CAUTIONS - before using this product. If there is any instruction which you do not understand, DO NOT USE THE PRODUCT.
  • Page 3 Web: www.landinst.com For further details on all AMETEK Land offices, distributors and representatives, please visit our websites. Return of Damaged Goods IMPORTANT If any item has been damaged in transit, this should be reported to the carrier and to the supplier immediately.

  • Page 5: Table Of Contents

    Contents Introduction About this Guide About the Processor Specifications Unpacking the Processor Installing the Processor Installing the Processor Into a Panel Electrical Connections 2.2.1 Alarm output connection schedule 2.2.2 CMD (Command) input connection schedule 2.2.3 Output (Retransmission output) connection schedule 2.2.4 Thermometer input/output connection schedule 2.2.5 Serial communications and maths function options System 4 and ABT/S Thermometer Cable Connector Assembly...

  • Page 7: Introduction

    1.1 About this Guide This guide gives you the information necessary for you to operate a LAND Landmark Graphic AE processor. Basic information regarding installation of the processor is also contained in the Installation Guide. More detailed information regarding servicing, repair and calibration of the processor is contained in the Service Manual.

  • Page 8: About The Processor

    Signal Processor User Guide 1.2 About the Processor The Landmark Graphic AE Signal Processor is designed to be used in conjunction with any LAND System 4 thermometer and ABT/S, AET and AQT application dedicated thermometers. The processor features include: •...

  • Page 9: Specifications

    User Guide Signal Processor 1.3 Specifications Landmark Graphic Processor Specifications Display: Cold cathode, back lit, 320 x 240 pixels Display update: 0.5s Screens: Numeric, line chart, deviation chart, mixed, Snapshot (S4), 4 channel numeric, 4 channel bar graph, 4 channel deviation bar graph 5°...
  • Page 10 Signal Processor User Guide Landmark Graphic AET / AQT Input Card Specifications Inputs: 2 x +10 volt inputs (AET, AQT) Accuracy: + 0.3% of FSR Discrimination: 0.003% of FSR Stability: 0.004% of span/° Input Update: 7.5ms Output Update: 30ms NOTE The following functions are not available when utilising the AET and AQT Input Cards: 1.

  • Page 11: Unpacking The Processor

    1.4 Unpacking the Processor The package containing the processor will contain the following items: Landmark Graphic AE Processor. 7-way plug and cover (10-way plug (cover not supplied) on AET/AQT Input Card)*, (includes 2 screws and a clamp bar) for connection to the thermometer.

  • Page 12: Installing The Processor

    User Guide Installing the Processor 2.1 Installing the Processor into a Panel The Landmark Graphic AE processor is designed to be mounted into an instrument panel. The overall installation dimensions of the processor are given in Fig. 2. Processor front bezel 192mm/7.6in Cut-Out 186 (+1.1,-0)mm...
  • Page 13 User Guide Signal Processor NOTE The Landmark Graphic AE processor can be set up to display text in either English, German, Italian, French, Spanish or Japanese. The processor is supplied set up to display in English. Changing the language setting involves removal of the back panel, therefore it is recommended that the language is selected before installing the processor in a panel.
  • Page 14 Signal Processor User Guide Viewing side Clamp bar Mounting panel Retaining screw Fig. 3 - Mounting the processor into a panel 234003 From the rear, re-insert the clamp bars into their channels and push them up to touch the mounting panel. Insert and tighten the retaining screws until the mounting panel is firmly gripped between the processor front panel and the clamp bar.

  • Page 15: Electrical Connections

    User Guide Signal Processor 2.2 Electrical Connections The electrical connections to and from the processor are all made via connectors on the rear panel of the processor. Fig. 4 shows the location of the connectors. WARNING Risk of electric shock. Refer to the processor Service Manual before removing the rear panel screws.
  • Page 16 Signal Processor User Guide RS 485 200 - 240V 100 - 120V RS 232C T 1A 250V 35VA MAX. 50-60Hz Alarm output AC power input Command input RS 232C serial comms input Retransmission output Channel A* terminal block (* Channels B,C & D may not Thermometer connector be identical to A, dependent on RS 485 serial comms output...

  • Page 17: Alarm Output Connection Schedule

    User Guide Signal Processor 2.2.1 Alarm output connection schedule The alarm output connection schedule is given in Fig. 5. The alarm relay contact rating is 50V a.c. or d.c. at 0.5A. NOTE Each alarm is designed to be ‘fail-safe’. i.e. if there is a loss of power to the processor, the alarms will remain in an activated state until the power supply is restored.
  • Page 18 Signal Processor User Guide Remote switch Function Peak Picker Track & Hold Valley Picker Switch Open Peak Pick Track Valley Pick Switch Closed Reset Hold Reset Card Type System 4 Card All Cards System 4 Card Fig. 7 - ‘CMD’ (command) input control via a remote switch 234007 NOTE Remote switch can be replaced by voltage Vin.

  • Page 19: Output (Retransmission Output) Connection Schedule

    User Guide Signal Processor 2.2.3 Output (Retransmission output) connection schedule The output (retransmission output) connection schedule for System 4 and ABT/S thermometers is given in Fig. 9a and the output (retransmission output) connection schedule for AET and AQT application dedicated thermometers is given in Fig.
  • Page 20 Signal Processor User Guide Output (Retransmission output) Pin Nº Function Description Load Current output drive Maximum loop Current output return resistance: 500Ω Screen Screen Emissivity output drive 0-20mA max loop Emissivity output resistance: 500Ω return Fig. 9b - AET and AQT thermometer retransmission output cable connection schedule 234049 RS 485...
  • Page 21 User Guide Signal Processor CON 1 D5 D6 Fig. 11 - Location of up scale/down scale selector on the input/output (I/O) p.c.b. S4970077 LMG AE Page 15...

  • Page 22: Thermometer Input/Output Connection Schedule

    Signal Processor User Guide 2.2.4 Thermometer input/output connection schedule The thermometer input/output connection schedules are given in Fig. 12 and 13. NOTE If using a thermocouple as a linear 4 to 20mA input, then a transmitter must be used scaled to fit one of the following ranges: 0 to 600°C 30 to 1100°F 0 to 1100°C...

  • Page 23: Serial Communications And Maths Function Options

    SIGNAL 3 and SIGNAL 4 are not used for AET and AQT thermometers. 2.2.5 Serial communications and maths function options For details of any options for the Landmark Graphic AE Processor (e.g. maths function/serial comms), refer to the User Guides supplied with the particular option.

  • Page 24: System 4 And Abt/S Thermometer Cable Connector Assembly

    Signal Processor User Guide 2.3 System 4 & ABT/S Thermometer Cable Connector Assembly The cable connectors for the rear panel of the processor are included in the processor package. Each cable connector must be correctly wired with the appropriate cable before the processor is used (refer to Section 2.2 for the cable schedules).

  • Page 25: Aet/Aqt Thermometer Cable Connector Assembly

    User Guide Signal Processor Ensure cable outer insulation Keep wire length as is held in clamp bar/cable tie short as possible Clamp bar Fig. 14 - Correct System 4 and ABT/S Thermometer cable connector wiring arrangement 234014 2.4 AET/AQT Thermometer Cable Connector Assembly The cable connectors for the rear panel of the processor are included in the processor package.
  • Page 26 Signal Processor User Guide Keep wire length as short as possible Fig. 14a - Correct AET/AQT Thermometer cable connector wiring arrangement 234014a LMG AE Page 20...

  • Page 27: Power Input Plug

    User Guide Signal Processor 2.5 a.c. Power Input Plug A rewireable a.c. power input plug is supplied with the processor, which will accept any mating IEC connection. The plug complies with BS 4491 - EN60 320. The wiring schedule of the plug assembly is shown in Fig.15. Earth Live Neutral...

  • Page 28: Using The Processor

    Signal Processor User Guide Using the Processor Once the processor has been installed in its chosen location, it must be connected to the appropriate thermometer(s) and to a suitable a.c. power supply. Ensure that the supply voltage setting switch, located on the rear panel of the processor, is set to correspond with your processor power supply.
  • Page 29 User Guide Signal Processor LMG AE Page 23...
  • Page 30 Signal Processor User Guide LMG AE Page 24...

  • Page 31: Getting Started (Accessing The Menu System)

    User Guide Signal Processor 3.1 Getting Started (accessing the menu system) When the processor is first connected to a thermometer and a suitable power supply, the processor display will be similar to that shown in Fig. 19. To access the configuration menus, and set up your system to your particular requirements, press the (ENTER) key.
  • Page 32 Signal Processor User Guide Fig. 20 - Access code display 234020 LMG AE Page 26...
  • Page 33 User Guide Signal Processor The processor requires an ‘access code’ to be entered before it allows you into the configuration menus. Use the UP and DOWN keys to change the displayed access code value to 417. Press the ENTER key. The Main Configuration Menu will now be displayed. See Fig.
  • Page 34 To select an item to configure, use the UP and DOWN keys to move cursor to the required item. Press the ENTER key. The Configuration Menu for the item you selected from the Main Configuration Menu will now be displayed. Fig. 22 shows the Channel A Configuration Menu for an ABT/S thermometer (same menu as for a standard System 4 Thermometer).

  • Page 35: About The Menu System

    3.2 About the Menu System Each Configuration Menu comprises the components shown in Fig. 23. The function of each component of the menu is as follows. Main Menu This shows the items that can be altered in the Configuration Menu. Sub Menu This shows the list of options available for each main item in the Configuration Menu.
  • Page 36 Signal Processor User Guide Main menu Active title bar (white background) Cursor Note area (shows available options) Sub-menu Help Bar Inactive title bar (blue background) Fig. 23 - General Configuration Menu components 234023 LMG AE Page 30...

  • Page 37: Configuring Items In The Menu System

    User Guide Signal Processor 3.3 Configuring Items in the Menu System To select an item from the Main Menu use the UP and DOWN keys to move the cursor to the required item. Press the ENTER key. The sub-menu relating to the item selected from the main menu is activated.
  • Page 38 Signal Processor User Guide To exit a sub-menu containing more than one variable, use the UP and DOWN keys to move the cursor to the <<< RETURN option and press the ENTER key. The cursor then reverts to a next to the most recently selected item in the Configuration Menu.

  • Page 39: Configuring Constants For Aet/Aqt Thermometers

    User Guide Signal Processor 3.4 Configuring Constants for AET/AQT Thermometers Enter the Main Configuration Menu (Fig. 21) in the normal way and select the channel to be configured. If an algorithm thermometer card is fitted, then the channel configuration menu will be typically displayed as in Fig.
  • Page 40 Signal Processor User Guide Fig. 25 - AET/AQT Constants ‘Calibrate Mode’ 234025 Fig. 26 - AET/AQT Constants ‘Measure Mode’ 234026 LMG AE Page 34...

  • Page 41: Constant Ranges For Aet/Aqt

    User Guide Signal Processor 3.4.1 Constant ranges for AET/AQT The value of Constant A (H4) is -10 to +10 in increments of 1. The value of Constant B (H5) is -10 to +20 in increments of 1. The value of Constant C (H6) is -30 to +30 in increments of 1. The value of Constant D (H7) is -30 to +30 in increments of 1.
  • Page 42 Signal Processor User Guide It has been found during development trials that some high magnesium content alloys have a very different emissivity-versus-wavelength slope and require additional trim for accuracy. For such alloys the value of H5 should be increased (positively) from its factory default value of 0.

  • Page 43: Configuring For Abt/S Thermometers

    User Guide Signal Processor 3.5 Configuring for ABT/S Thermometers Enter the processor menu by pressing the (ENTER) key. Set the entry code using the (UP), (DOWN) keys to 417 and press (ENTER). Now select the channel to be configured for Snap Shot operation. Enter the channel Configuration menu.
  • Page 44 Signal Processor User Guide Now enter the channel selection option below and select the channel which has previously been configured for the ABT/S. NOTE If the channel selected in MUL SNAP SHOT mode was not previously set to snap shot mode, then selecting that channel will automatically set the appropriate snapshot defaults.

  • Page 45: Guidance On Snapshot Setup For Abt/S

    User Guide Signal Processor 3.5.1 Guidance on Snapshot Setup for ABT/S Thermometer Set up • Select the ABT/S from the thermometer type list • Set desired emissivity (0.95 is adequate in most cases) Cursor 2 Position Cursor 1 Position Pretrigger Period Temperature Threshold...
  • Page 46 Signal Processor User Guide • The threshold for triggering the snapshot can be set to any value within the displayed range but 325°C will work well for almost all aluminium extrusion billets. • The cursor positions are offset from the threshold crossing points by an adjustable number of samples, see Fig.27a.

  • Page 47: New Parameter Limits And Defaults

    User Guide Signal Processor Fig. 28 - Multi channel Snap Shot display 234028 3.5.2 New parameter limits and defaults Tmax Range is IRT maximum to IRT minimum +100 in 5° increments. (default = IRT Tmax) Tmin Range is IRT minimum to IRT maximum –100 in 5° increments.
  • Page 48 Signal Processor User Guide Mnemonics Description Access Snapshot display temperature max value Snapshot display temperature min value Snapshot display interval 0-5 in increments of 1 R/W Snapshot display Threshold value Cursor 1 position Cursor 2 position Pre trigger range Cursor 1 temperature value Cursor 2 temperature value The format of the data extraction/modifications via the serial port is identical to that of the standard Landmark Graphic processor (see appropriate User...

  • Page 49: Using The Quick Keys

    User Guide Signal Processor 3.6 Using the Quick keys The quick keys, on the processor front panel, provide immediate access to the parameters which are changed most frequently. 3.6.1 Emissivity Quick key Pressing the key opens up the emissivity menu (see Fig. 29). Fig.

  • Page 50: Alarm Quick Key

    Signal Processor User Guide 3.6.2 Alarm Quick key Pressing the key opens up the alarm menu (see Fig. 30). Fig. 30 - Alarms menu 234030 LMG AE Page 44...

  • Page 51: Display Quick Key

    User Guide Signal Processor 3.6.3 Display Quick key Pressing the key opens up the display menu (see Fig. 31). NOTE The function of each quick key can be locked. i.e. pressing the quick key accesses the relevant menu, but adjustment of the settings is prevented. This feature is useful in preventing inadvertent or mischevous altering of system settings.

  • Page 52: Time Functioning Processing

    The ‘clean’ area will be at the higher (i.e. true) temperature. The Peak Picker used in Landmark Graphic AE processors has the following features.
  • Page 53 User Guide Signal Processor Adjustable decay rate ‘Hold’ mode ‘OFF’ Delay ‘ON’ Delay Threshold level ‘Reset’ mode Time Fig. 32 - Graphical representation of Peak Picker time function 234032 Processor output Thermometer signal ‘ON’ delay Bottom temp. limit Time Sample time (adjustable) Fig.

  • Page 54: Track And Hold

    Signal Processor User Guide 4.2 Track And Hold Refer to Fig. 34. The Track and Hold time function is useful especially for measuring intermittent processes e.g. items on a conveyor belt. The presence of a ’hot’ object can be used to activate the ‘Track’ function, which causes the output to display the temperature of the object.

  • Page 55: Averager

    User Guide Signal Processor 4.3 Averager Refer to Fig. 35. The Averager time function can be used to ‘smooth’ the temperature output signal in relation to the temperature input. The averager response can be adjusted to suit your application. With a fast response speed, the temperature output signal tracks the input signal closely, any rapid fluctuations in the input are reflected in the output.

  • Page 56: Valley Picker (Not Available On Aet/Aqt Channels)

    Signal Processor User Guide 4.4 Valley Picker (not available on AET / AQT channels) Refer to Fig. 36. This function is the inverse of the Peak Picker. It allows the operator to find the minimum peak value instead of the largest peak value. Threshold level: Temperature below which the Valley Picker is active, used in conjunction with on/off delays.
  • Page 57 User Guide Signal Processor IRT max Valley Sample Output Threshold Temperature Signal Time (adjustable interval 10-250 seconds) Fig. 37 - Typical output of Valley Sample function 234036a LMG AE Page 51...

  • Page 58: Quench Rate Operation (Requires Aet/Aqt)

    Signal Processor User Guide 4.5 Quench Rate Operation (Requires AET/AQT) 4.5.1 Introduction This document is intended to provide only the additional information required to configure and operate the LMG AE processor for quench rate measurements. The LMG AE’s new maths function allows the user to calculate dynamically the quench rate of moving extruded aluminium section, without the need for contact thermocouples or additional external processor or computers.

  • Page 59: Quench Rate

    User Guide Signal Processor 4.5.2 Quench Rate The new maths function allows the user to continuously calculate the quench rate of extruded aluminium section and to output the calculated quench rate as a linear 0 or 4 to 20mA signal. The Maths Card has two independently configurable maths function channels.

  • Page 60: New Parameters

    Signal Processor User Guide 4.5.3 New parameters Speed ranges Auto*: 0 to 1.000 m/s 0 to 2.000 m/s in 0.001 increments 0 to 3.000 m/s 0 to 2.000 ft/s 0 to 5.000 ft/s in 0.001 increments 0 to 10.000 ft/s Speed ranges Manual*: 0 to 3.00 m/s in 0.01 increments 0 to 10.00 ft/s Distance:...

  • Page 61: Pre-Configuration Notes

    User Guide Signal Processor 4.5.4 Pre-Configuration Notes Prior to configuring the LMG AE quench rate maths functions the following should be considered. The channels must be configured in order of measurement. The LMG AE must contain a System 4 I/O card for on-line speed input if the Automatic Quench rate is to be used.

  • Page 62: Configuration Of Automatic Mode (Quench A)

    Signal Processor User Guide 4.5.5 Configuration of Automatic Mode (Quench A) Having set up the primary and secondary measurement channels to give accurate temperature measurements in the normal way and having set up the speed input to one of the pre-defined ranges, the Automatic quench rate can now be configured.
  • Page 63 User Guide Signal Processor Distance: The distance between the two thermometer locations. Default 1.0m (or 1.0 ft, depending upon the units used when configuring the speed channel). If the on-line speed sensor provides an output of RAM speed then the die scaling factor will need to be entered (see Section 4.5.3).

  • Page 64: Quench Rate Manual Mode (Quench M)

    Signal Processor User Guide 4.5.6 Quench Rate Manual Mode (Quench M) The configuration for this quench rate mode is almost identical with the following exceptions: There is no die scaling factor to configure. There is now a unit of distance to select as either metres or feet. (Default = meters) There is also a speed value depending up on the unit selected above.
  • Page 65 User Guide Signal Processor Having completed all so far, then the display (see Fig. 41) typically should look like the following: Fig. 41 - ‘Function 1 Quench M’ Display New Serial Parameters: The inclusion of the quench rate function has added the following serial parameters to the list of values currently adjustable via the serial port.

  • Page 66: System Response

    Signal Processor User Guide 4.5.7 System Response The following is the definition of the response of the quench rate calculation to the different combinations of actual sensor inputs. Sensor 1 Sensor 2 System Display System O/P VVVV VVVV ^^^^ 0 or 4mA Link Dependant* VVVV ****...

  • Page 67: Application Examples

    User Guide Signal Processor 4.5.8 Application Examples LMG AE Processor ABT/S Speed Sensor Quenching Billet Extrusion Furnace Press Section Fig. 42 - Typical System Application 234050 The above is a typical application using the LMG AE processor. It allows the user to monitor the billet profile along with the press exit and quench exit temperatures, as well as calculate the mean quench rate through the quenching section.
  • Page 68 Signal Processor User Guide The configuration of the measurement part of the system is now complete. Fig. 43 - Typical System Display In order to show the display (Fig. 43) shown above, the following will need to be configured. Enter the system configuration menu and set Channel A’s display mode to snap shot.
  • Page 69 User Guide Signal Processor Now allocate the previously configured snap shot channel. Fig. 45 - ‘System Configuration Menu - Mul’ Display Now exit and save changes. If the display (Fig. 43) is still not shown, use the display hot key: Select the all channel display option.
  • Page 70 Signal Processor User Guide The following application example is more complex in that it utilises two quench exit thermometers as well as a die exit thermometer. LMG AE Processor AQT (1) AQT (2) Speed Sensor Extrusion Quenching Quenching Press Section 1 Section 2 Fig.
  • Page 71 User Guide Signal Processor Option 1: AET => AQT (1) For Option 1 the configuration would be as follows: Choose a maths function and select its type to be Quench A. Now allocate Channels A, B and D Set the Distance value Set the Die Scaling Factor required.
  • Page 72 Signal Processor User Guide Having now configured both quench rates the two values can be displayed simultaneously by using the dual maths functions display option. In the system configuration menu or via the display hot key the dual maths function display can be selected. The display will then typically be as shown as in Fig.

  • Page 73: Language Selection

    User Guide Signal Processor Language Selection The Landmark Graphic AE processor can be set up to display text in either English, German, Italian, French, Spanish or Japanese. The processor is supplied set up to display in English. Changing the language setting involves removal of the back panel, therefore it is recommended that the language is selected before installing the processor in a panel.
  • Page 74 Signal Processor User Guide Use a small bladed screwdriver to turn the switch to the required setting. The table of available language settings is given in Fig. 49. NOTE A Japanese set of characters is present in each of the other language character sets (e.g.

  • Page 75: Maintenance

    User Guide Signal Processor Maintenance The Landmark Graphic AE Signal Processor is designed to be virtually maintenance free. The recommended maximum period between calibration checks is 12 months. LMG AE Page 69...
  • Page 76 Signal Processor User Guide LMG AE Page 70...

  • Page 77: Appendix A - Display Modes

    User Guide Signal Processor Appendix A - Display Modes This section contains typical samples of the displays available from the processor. Fig. A1 - Typical numeric display 234039 Fig. A2 - Typical mixed display 234040 LMG AE Page 71...
  • Page 78 Signal Processor User Guide Fig. A3 - Typical line chart display 234041 Fig. A4 - Typical deviation chart display 234042 LMG AE Page 72...
  • Page 79 User Guide Signal Processor Fig. A5 - Typical 4-channel numeric display 234043 Fig. A6 - Typical 4-channel bar graph display 234044 LMG AE Page 73...
  • Page 80 Signal Processor User Guide Fig. A7 - Typical 4-channel deviation bar graph display 234045 Fig. A8 - Typical over-range display 234046 LMG AE Page 74...
  • Page 81 User Guide Signal Processor Fig. A9 - Typical under-range display 234047 Fig. A10 - Typical obscuration display 234048 LMG AE Page 75...
  • Page 82 Signal Processor User Guide LMG AE...
  • Page 83 PRODUCT WARRANTY Thank you for purchasing your new product from Land Instruments International. This Land manufacturer’s ‘back-to-base’ warranty covers product malfunctions arising from defects in design or manufacture. The warranty period commences on the instrument despatch date from the Land Instruments International Ltd.
  • Page 84 PRODUCT WARRANTY EXCLUSIONS FROM WARRANTY It should be noted that costs associated with calibration checks which may be requested during the warranty period are not covered within the warranty. Land reserve the right to charge for service/calibration checks undertaken during the warranty period if the cause is deemed to fall outside the terms of the warranty.
