KADO
LUX 3-IN-1 HEAT LIGHT EXHAUST UNIT
INSTALLATION INSTRUCTIONS
NOTICE: TO INSTALL THE HEAT LAMP, PULL UP THE LAMP SLIGHTLY FROM THE LAMP CLIP
AND THEN REMOVE THE QUICK CONNECTOR
ELECTRICAL WIRING
The unit must be located and installed in accordance with AS/NZS 3000 and local building codes relating to damp situations.
The unit can be installed in any room that requires direct radiant heating and circulated airflow such as bathrooms, ensuite,
laundries etc. The unit can be installed in flat ceilings with a minimum height of 2.3 metres. At least 220mm height clearance in
the ceiling cavity is required to ensure sufficient ventilation for moisture to disperse. The unit must be installed at least 250mm
away from walls.
Ensure adequate inlets exist through windows, vents or under the door for airflow.
Regulations concerning the discharge of air must be fulfilled.

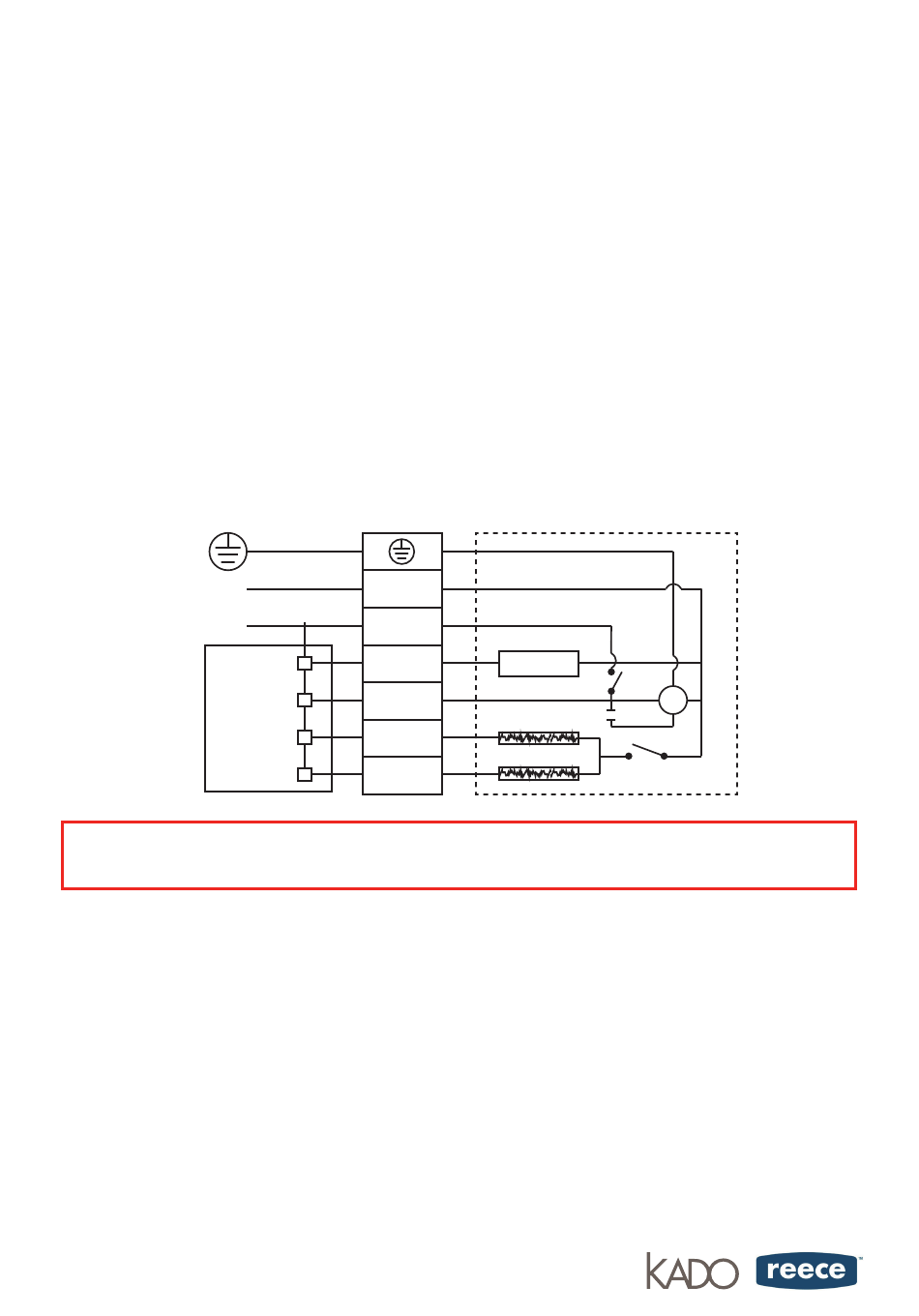

1. Connect the wiring to the four gang switch according to the below electrical diagram.
2. Remove the terminal cover on the heater unit and wire according to the lable adjacent to the terminal block. Make sure all
cables are securely connected and refit the terminal block.
3. Clean the fascia and lightings with a soft moist cloth. Turn on power and check the switch operation.
N
L
S/W LED
S/W FAN
S/W HEAT
S/W HEAT
WARNING: AN ALL-POLE DISCONNECTION MUST BE INCORPORATED INTO THE FIXED WIRING IN ACCORDANCE
WITH THE WIRING RULES AS OUTLINE IN CLAUSE 7.12.2 OF AS/NZS 60335-1 FOR
CARE AND MAINTENANCE
• When installing the bathroom heater, please make sure
the person in the bathtub or shower area can't touch the
electrical switches or other electrical controllers.
• This bathroom heater must not be installed below the
electrical outlet.
• This bathroom heater must not be installed near by any
curtains and other combustible materials.
• The appliance must under no circumstances be covered
with insulation material or similar material.
• Joists, beams and rafters shall not be cut or notched to
install the appliance.
• Lamps must be cool before cleaning. To clean bulbs and
surrounds, wipe with a cloth dampened with detergent or
liquid glass cleaner.
Electricians, please ensure a copy of the installation
instructions is left with the end user for future reference
N
A
S/W LED
S/W FAN
S/W HEAT
S/W HEAT
MEETING THE MINIMUM ELECTRICAL SAFETY OF THIS STANDARD.
LED
C
• This Appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the application be a person
responsible for their safety.
• Children should be supervised to ensure that they do not
play with the appliance.
• Appliance for indoor use only.
• Ensure that fan is switched off from supply mains before
removing the guard.
• National regulations concerning the discharge of air have
to be fulfilled.
• Means for disconnection must be incorporated in the fixed
wiring in accordance with wiring rules.
