KADO

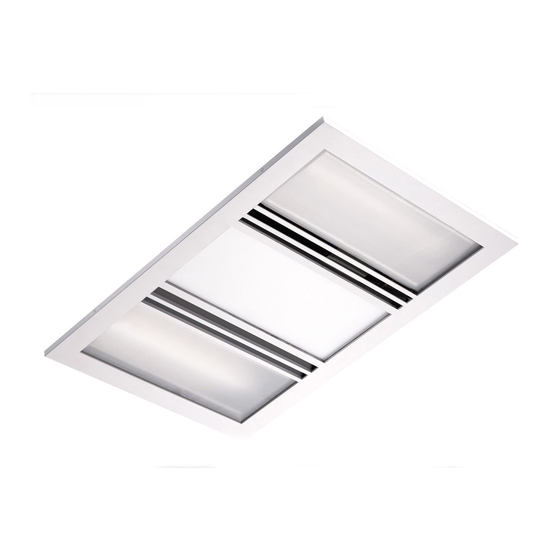

LUX 3-IN-1 HEAT LIGHT EXHAUST
SPECIFICATIONS
Recommended use
Fascia Material
Colour availability
Weight
Heat
Light
Air Movement
Cutout Size
Rec Min Install Depth
*All airflow data has been gathered in accordance
with International Industry Standards.
PART NO.
REHLXWH
White
REHLXSS
Titanium
CLEANING RECOMMENDATIONS
We recommend the use of soapy water or approved cleaners.
This product should not be cleaned with abrasive materials.
Damage caused by any improper treatment is not covered by the
product warranty. Refer to Warranty Conditions.
Disclaimer: Products in this specification manual must by regulation be installed by licensed and registered trade people. The manufacturer/distributor
reserves the right to vary specifications or delete models from their range without prior notification. Dimensions are nominal measurements only.
Dimensions and set-outs listed are correct at time of publication however the manufacturer/distributor takes no responsibility for printing errors.
Tech Page Version 1
505mm
530mm
Domestic, Hotel and Commercial
Aluminium & Glass
White, Titanium
7.86kg
2 x 800 watt heat lamps
18 watt LED panel
92 L/sec (330m
/H)*
3
505 x 330mm
220mm
REECE CODE
2053301
2053302
Dimensions are nominal measurements only.
To see the complete KADO range go to
www.reece.com.au/bathrooms
page 1 of 4
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Reece KADO REHLXWH
- Page 1 505 x 330mm Rec Min Install Depth 220mm To see the complete KADO range go to www.reece.com.au/bathrooms *All airflow data has been gathered in accordance with International Industry Standards. PART NO. REECE CODE REHLXWH White 2053301 REHLXSS Titanium 2053302 CLEANING RECOMMENDATIONS We recommend the use of soapy water or approved cleaners.
- Page 2 page 2 of 4 KADO LUX 3-IN-1 HEAT LIGHT EXHAUST UNIT TECHNICAL SPECIFICATIONS Duct Length EXHAUST REHLX in relation to airflow Air Delivery 92 L/sec (330m /H)* (Approx Only) Motor Power 65 watts Noise Level 45dB(A) Ball Bearing Duct Outlet Size 150mm Draft Stopper LIGHT...
- Page 3 page 3 of 4 KADO LUX 3-IN-1 HEAT LIGHT EXHAUST UNIT INSTALLATION INSTRUCTIONS Please read these instructions carefully before installing and using the product. Keep the instructions handy for future reference. Electrical wiring must only be done by a licensed electrician and a “Certificate of Compliance” must be issued on completion of the installation.
- Page 4 page 4 of 4 KADO LUX 3-IN-1 HEAT LIGHT EXHAUST UNIT INSTALLATION INSTRUCTIONS NOTICE: TO INSTALL THE HEAT LAMP, PULL UP THE LAMP SLIGHTLY FROM THE LAMP CLIP AND THEN REMOVE THE QUICK CONNECTOR ELECTRICAL WIRING The unit must be located and installed in accordance with AS/NZS 3000 and local building codes relating to damp situations. The unit can be installed in any room that requires direct radiant heating and circulated airflow such as bathrooms, ensuite, laundries etc.
