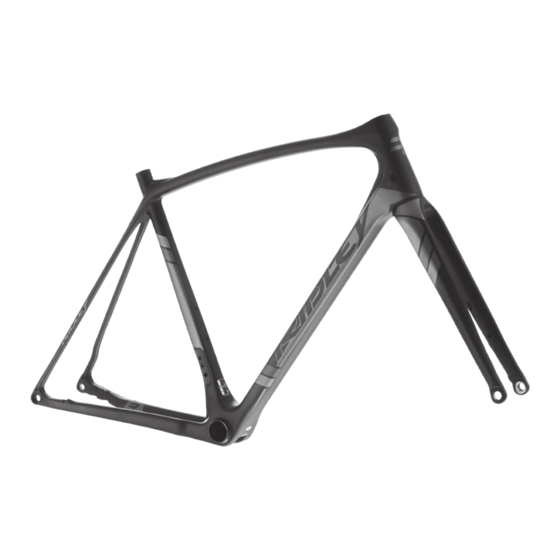

- Page 1 Frame passort · Noah Fast · type 7E3 · Englisch ~ Last update: 09/10/2018 ~...
-
Page 2: Table Of Contents
REAR ............................... 8 6.7.2. 6.8. DROP-OUTS ............................9 WHEELS AND TIRES ..........................9 7.1. FORK ..............................9 7.2. FRAME ..............................9 7.3. TIRES ..............................9 WARRANTY INFORMATION ........................9 8.1. MAXIMUM RIDER WEIGHT ........................9 Noah Fast Disc | Type 7E3... -
Page 3: Updates
(*) Weight of painted frame, real weight may differ from the weight mentioned above by ± 10 %. 3.2. FORK The weight of the Noah Fast is around 435 g (*). (*) Weight of painted fork, real weight may differ from the weight mentioned above by ± 10 %. Noah Fast Disc | Type 7E3... -
Page 4: Geometry
Below you can find the parts needed for a mechanical groupset: part part code quantity SEAT POST COVER FRPSEPRID001 PLUG FRPGROJAG002 PLUG FRPGRORID007 BOTTOM BRACKET COVER FRPBBRRID001 BOLT BLTNOBNOB059 FOAM CABFOAJAG001 CABLE GUIDE FRPCBGRID001 Noah Fast Disc | Type 7E3... -
Page 5: Electronic Cable Routing
Below you can find the parts needed for an electronic groupset: part part code quantity SEAT POST COVER FRPSEPRID001 PLUG FRPGROJAG003 PLUG FRPGRORID007 BOTTOM BRACKET COVER FRPBBRRID001 BOLT BLTNOBNOB059 FOAM CABFOAJAG001 CABLE GUIDE FRPCBGRID001 PLUG FRPGROJAG002 Noah Fast Disc | Type 7E3... -
Page 6: Parts
6.2. HANDLEBAR 6.2.1. MATERIAL The Noah Fast handlebar is a full carbon handlebar. 6.2.2. DIMENSIONS Drop: 130 mm Reach: 75 mm The handlebar is available in multiple sizes: Stem length Bar width Noah Fast Disc | Type 7E3... -
Page 7: Parts
6.2.3. PARTS All parts belonging to the handlebar are shown below: for more information on the cable routing and how to assemble the handlebar, please check our assembly manual https://www.ridley- bikes.com/wp-content/uploads/2018/02/Noah-SL-Disc-Aero-_-Cable-Management-System-_-Assembly.pdf part part code quantity Bolts + nut HBPAER4ZA001 1 set... -
Page 8: Seat Post
The Noah Fast is designed to use direct mount brakes. 6.8. DERAILLEUR 6.8.1. FRONT The Noah Fast frame uses a braze on clamp for the front derailleur. 6.8.2. REAR For the rear derailleur, the Noah Fast frame uses a replaceable hanger (HAARCERID033). Noah Fast Disc | Type 7E3... -
Page 9: Drop-Outs
We recommend 28 mm as a maximum tire size. Please note that not all tire manufacturers use the same sizing standard so we recommend to do an assembly check and confirm clearances 8. WARRANTY INFORMATION 8.1. MAXIMUM RIDER WEIGHT The maximum advised rider weight is 110 kg. Noah Fast Disc | Type 7E3...
