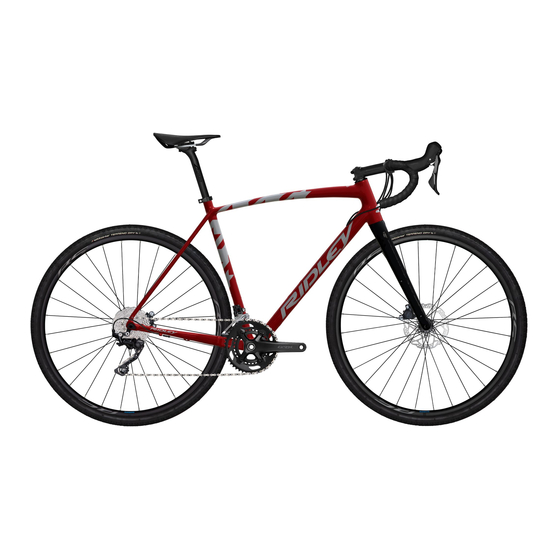

RIDLEY HELIUM SLA DISC Passport Manual

Frame
Hide thumbs
Table of Contents

Advertisement

Quick Links

Helium SLA Disc
frame passport
type : 7E2
last update: 26/09/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HELIUM SLA DISC and is the answer not in the manual?

Questions and answers

Related Manuals for RIDLEY HELIUM SLA DISC

Summary of Contents for RIDLEY HELIUM SLA DISC

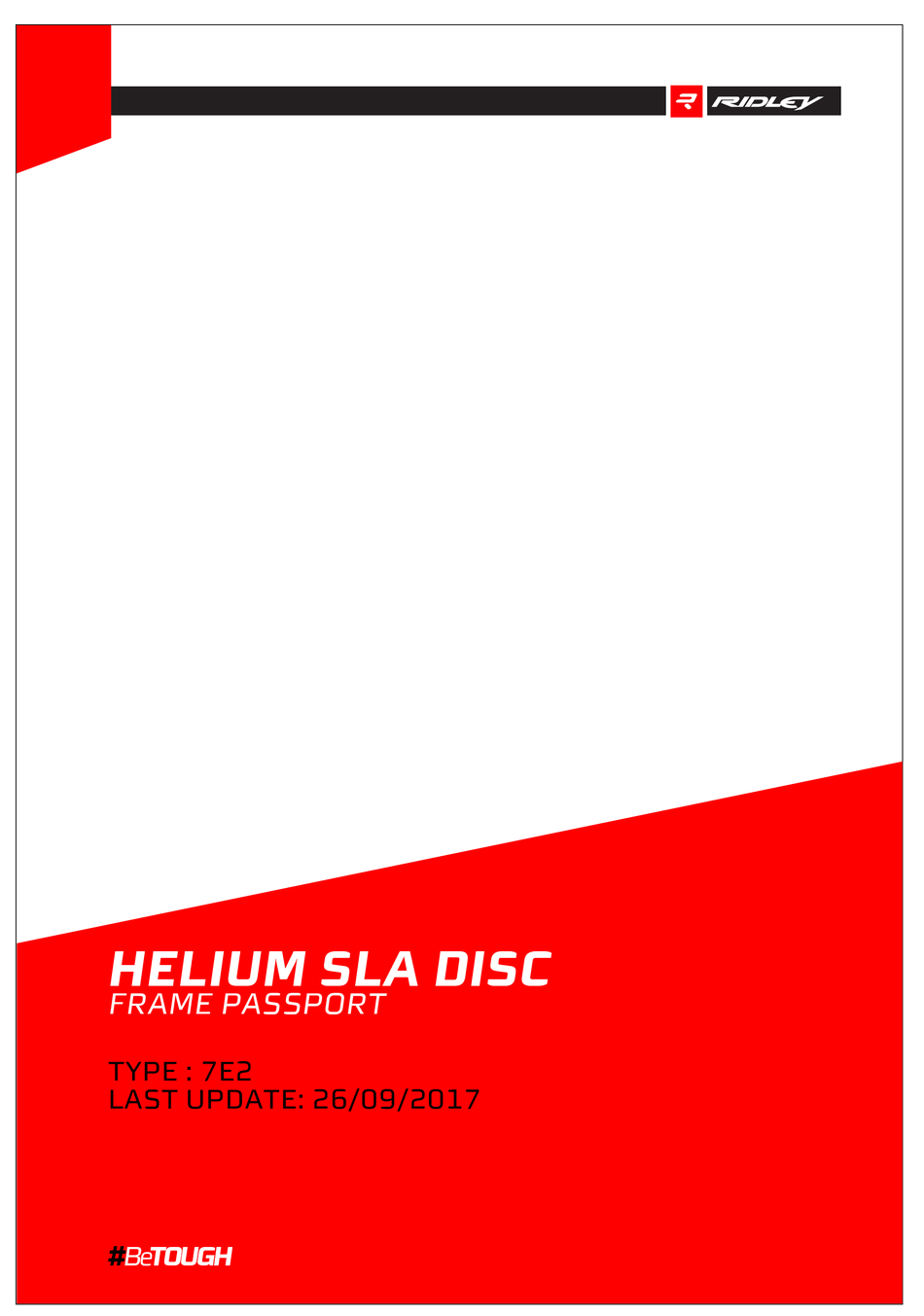

  • Page 1 Helium SLA Disc frame passport type : 7E2 last update: 26/09/2017...

  • Page 2: Table Of Contents

    Helium SLA Disc INDEX FOREWORD ................... 3 PART CODES ..................3 MATERIAL ..................... 3 WEIGHT ....................3 3.1. Frame ........................... 3 3.2. Fork ............................3 GEOMETRY .................... 4 COMPATIBILITY ..................4 PARTS ....................5 6.1. Fork ............................5 6.1.1.

  • Page 3: Foreword

    2. MATERIAL The helium SLA Disc is built out of high quality 6061 triple butted heat-treaded aluminum. 3. WEIGHT 3.1.

  • Page 4: Geometry

    72.5 73.5 1005 834 72.5 1014 861 (*) J: Stand over height 5. COMPATIBILITY The helium SLA Disc is compatible for mechanical group sets only. part part code Location end cap with liner CABSTIJAG037 Head tube right end cap with liner...

  • Page 5: Parts

    Helium SLA Disc 6. PARTS 6.1. FORK The Helium SLA Disc comes with the Helium SLA Disc fork. It is a full carbon monocoque fork with tapered steerer 6.1.1. MATERIAL Fork legs: 24 & 30 ton high Modulus Carbon Steerer tube: 24 & 30 ton high Modulus Carbon 6.1.2. DIMENSIONS Steerer tube length: 300 mm Headset: 1 1/8” upper ring 1 1/2” lower ring Fork rake: 45 mm OLD (OverLock nut Distance): 100 mm 6.1.3.

  • Page 6: Seat Post

    BSA threaded and has a width of 68 mm to fit standard BSA68 cups. 6.5. BRAKES The Helium SLA Disc is compatible with most standard disc brakes available in the market. Fork: Type: Flat mount Thru axle: D 12mm, L 120mm, Picth 1.5mm Max.

  • Page 7: Wheels And Tires

    Helium SLA Disc 7. WHEELS AND TIRES 7.1. FRAME The frame is developed for 700C race wheels with a build in width of 100mm front and 142 mm rear. 7.3. TIRES We recommend a maximum tire width of 28 mm with a maximum rim width of 28 mm.
