PRODUCT INFORMATION - - - - INPUT/OUTPUT OVERVIEW
PRODUCT INFORMATION
PRODUCT INFORMATION
PRODUCT INFORMATION

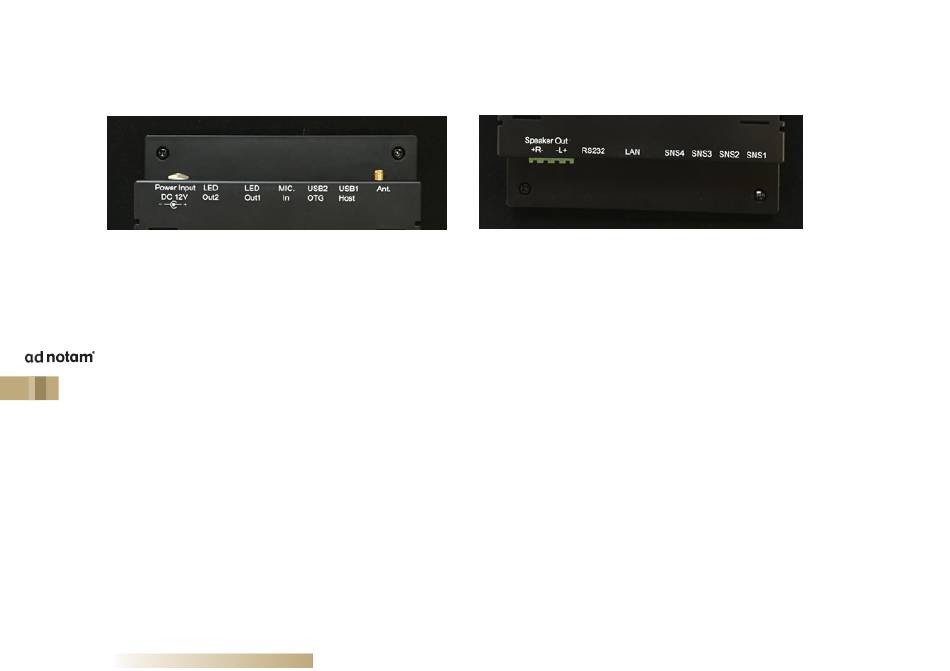

Upper side
14
1 1 1 1
Power input DC 12V
2 LED Out 2 connector
3 LED Out 1 connector
4 Microphone Input connector
5 USB 2 (OTG) connector
USB 1 (Host) connector
6
7 External Wi-Fi connector
8 Speaker output, 1 x Phoenix clip 4pin
9 RS232 connector
10 LAN Ethernet connector
11 Sensor (x4) connectors
SMART DISPLAY UNIT
INPUT/OUTPUT OVERVIEW
INPUT/OUTPUT OVERVIEW
INPUT/OUTPUT OVERVIEW
TM
Lower side
