- Page 1 L8543209 02/2018 rev 2 IRI.KPAD UNIONE NAZIONALE COSTRUTTORI AUTOMATISMI PER CANCELLI, PORTE SERRANDE ED AFFINI...
- Page 2 QUICK GUIDE Entering an Administrator PIN*: 1. Press any key to activate the keyboard. 2. Type 123456 [default password], followed by #. 3. Press key 2 (2 beeps followed by a pause). 4. Type the Administrator PIN you want to insert (1 to 9 digits), followed by # (3 beeps followed by a pause) 5.
- Page 3 133 mm ENTER 29 mm 85 mm Ø 5...
- Page 6 3,6V 1/2AA TORX 3,5x10mm...

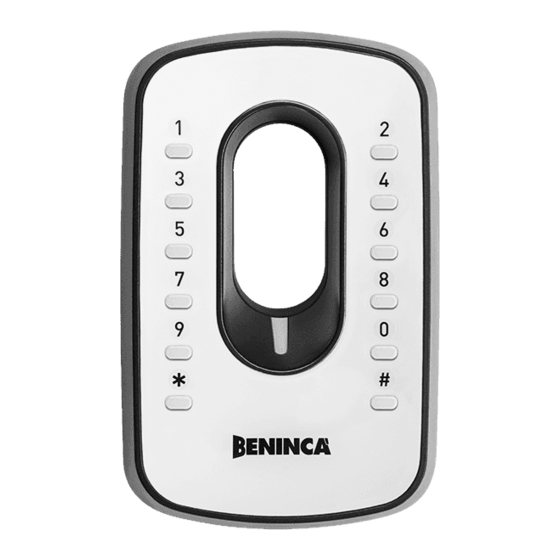

- Page 7 It allows to carry out the control of automatic systems for gates and similar systems, with no need to lay any cables. IRI.KPAD is powered by one 3,6V 1/2 AA battery and transmits the radiofrequency control to another transmitter in a similar way. The main characteristics are: •...
- Page 8 Otherwise, leave the cover in place, and apply the entire adhesive gasket (Fig. 3). 1.4) HOW TO REPLACE THE BATTERIES (FIG. 4) IRI.KPAD is supplied with a 3.6V 1/2 AA battery that is not inserted, in order to preserve battery life.
- Page 9 After activating the keypad, and typing the access password followed by #, access is enabled to the Function Menu (2 beeps are heard from the buzzer). IRI.KPAD awaits that one of the 9 Menu available is selected. During this dwell time, a beep every 0.5sec is heard:...
- Page 10 2) Switch the back light on and off. 3) Enable or disable keypad activation by pressing the asterisk (*) key. This only allows the asterisk key to activate the IRI.KPAD, again. 4) Enable or disable the first digit entered as re-activation of the device and first code entered.
- Page 11 If 1 is typed in, three beeps followed by an interval are heard. The device awaits for the command to specify the coding type of the code which will be transmitted when the IRI.KPAD is activated. - Type 1 > (2 beeps) if a Rolling-Code is desired.
- Page 12 The system is waiting for the code. - Type the code to be checked followed by #. If the code is memorised, IRI.KPAD replies with 1, 2 or 3 beeps: - 1 beep: Rolling-code - 2 beeps: Advanced rolling code (ARC)
- Page 13 (recommended in the case of complex installations). IMPORTANT: Never use too simple or easily traceable numbers in the encoding. IRI.KPAD can store a total of 254 codes, which can be either “Administrator PIN” or “User PIN”.
- Page 14 (metal, plastics, electrical wires, etc.). For this purpose, it is advisable to contact your installer or a specialised company. The most recent and complete certificate of conformity is available consulting the site: www.beninca.com or can be requested from: Automatismi Benincà S.p.A - Sandrigo VI - Italy.
- Page 15 AUTOMATISMI BENINCÀ SpA Via Capitello, 45 - 36066 Sandrigo (VI) ITALY Tel. 0444 751030 r.a. - Fax 0444 759728 www.beninca.com - sales@beninca.it...
