ASSEMBLING THE ARTICULATING ARMS (if necessary)
The articulating arms should be
completely assembled when you get
them. However, if they come partially
disassembled, follow these steps to
completely assemble them.

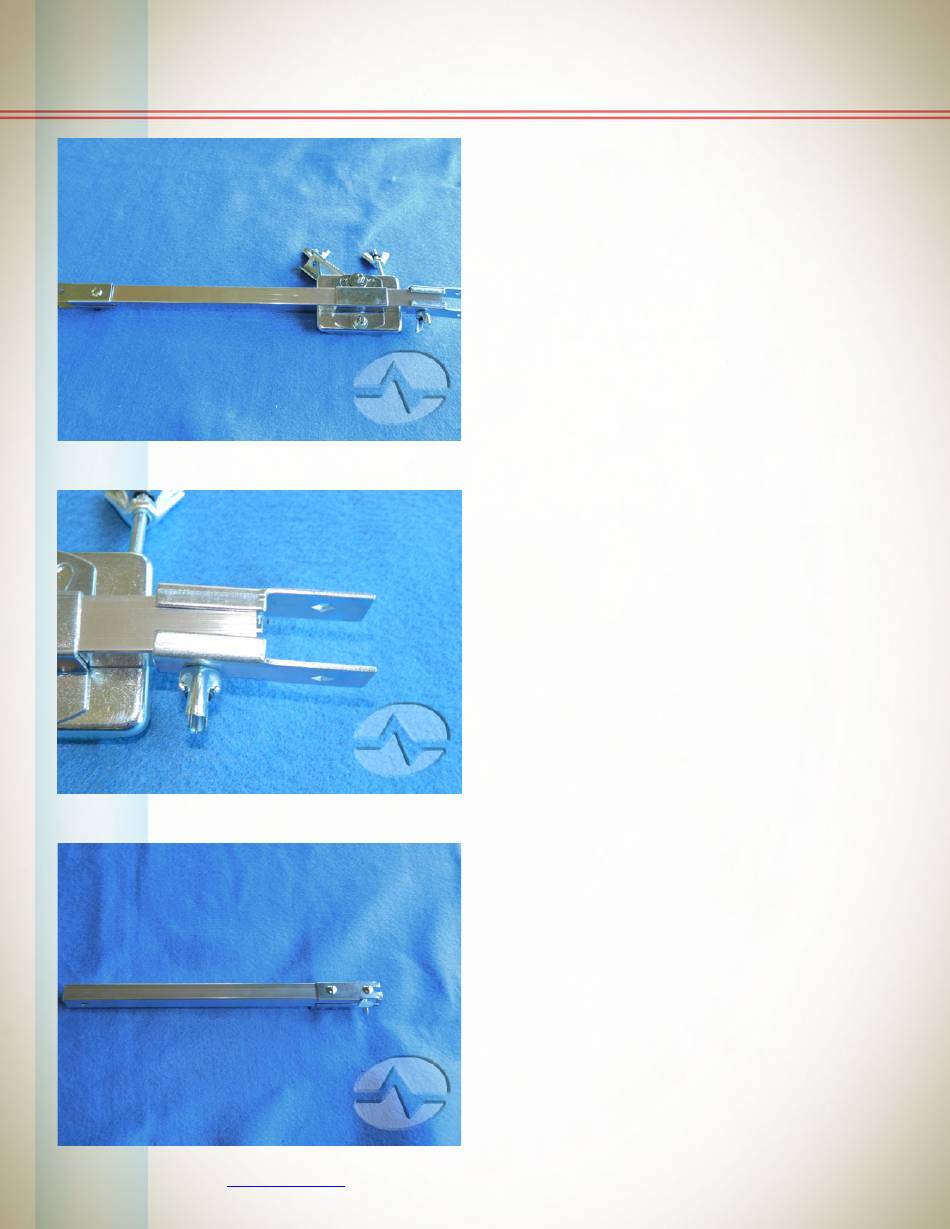

First remove one of the two wingnuts in
the hinge. The hinge is the part closest
to the center. In the photo at the top, it
is on the right.
Then, loosen the other wingnut enough
that you can place the other half of the
arm into the hinge.
In the photo at left, the left side of the
arm goes into the hinge. Hint: when you
have both arms in place, the wingnuts
should be on the same side on both arms.
