LuxaFlex M25T Manual

24v roller blind motor programming
Hide thumbs Also See for M25T:

Advertisement

Quick Links

Download this manual

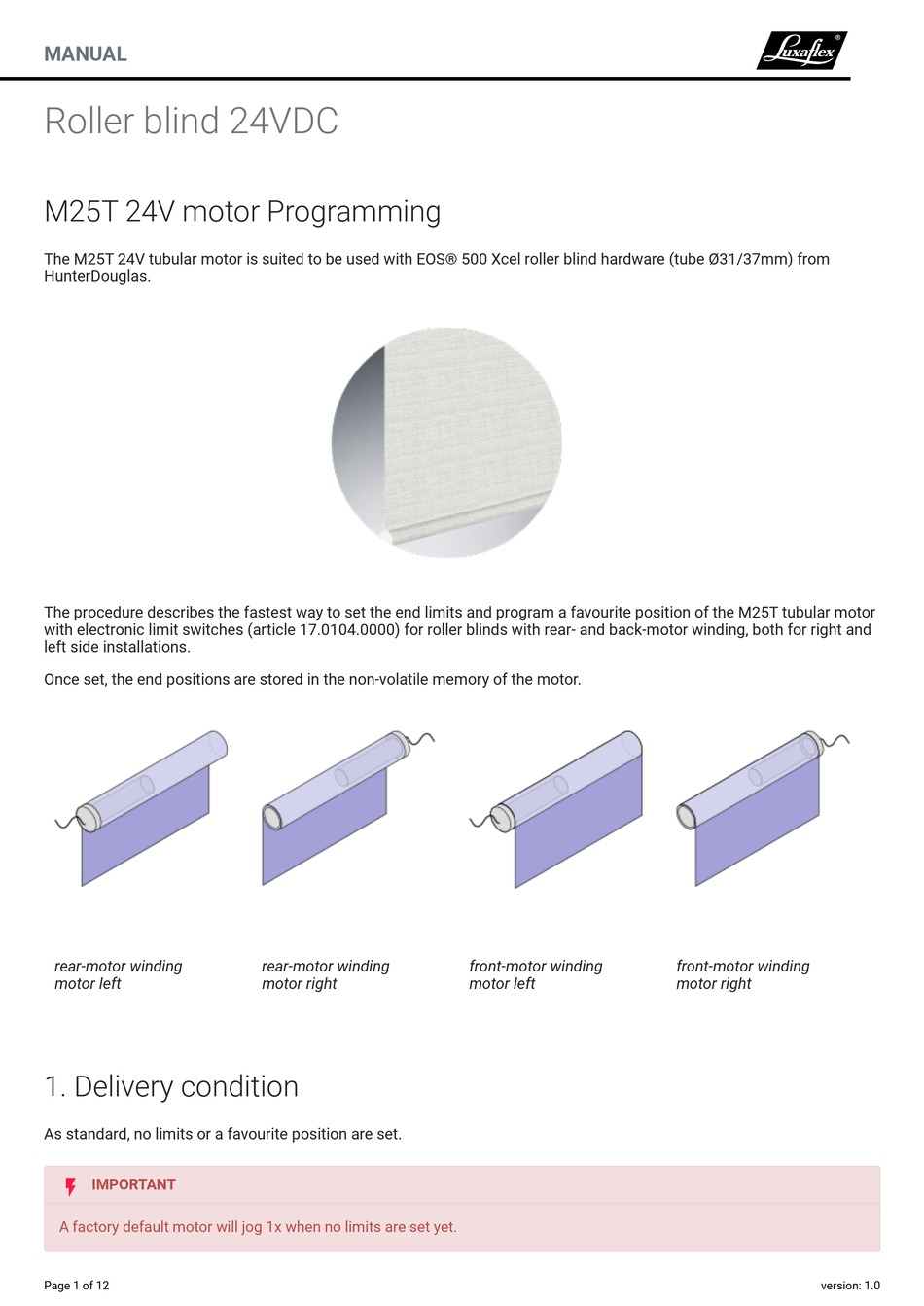

MANUAL
Roller blind 24VDC
M25T 24V motor Programming
The M25T 24V tubular motor is suited to be used with EOS® 500 Xcel roller blind hardware (tube Ø31/37mm) from
HunterDouglas.
The procedure describes the fastest way to set the end limits and program a favourite position of the M25T tubular motor
with electronic limit switches (article 17.0104.0000) for roller blinds with rear- and back-motor winding, both for right and
left side installations.
Once set, the end positions are stored in the non-volatile memory of the motor.
rear-motor winding
motor left
1. Delivery condition
As standard, no limits or a favourite position are set.
IMPORTANT
A factory default motor will jog 1x when no limits are set yet.
Page 1 of 12
rear-motor winding
motor right
front-motor winding
motor left
front-motor winding
motor right
version: 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the M25T and is the answer not in the manual?

Questions and answers

Related Manuals for LuxaFlex M25T

Summary of Contents for LuxaFlex M25T

  • Page 1 HunterDouglas. The procedure describes the fastest way to set the end limits and program a favourite position of the M25T tubular motor with electronic limit switches (article 17.0104.0000) for roller blinds with rear- and back-motor winding, both for right and left side installations.

  • Page 2: Check Equipment

    MANUAL 1.1. Check equipment To set the motor end limits and favourite position, following tools and conditions are required: limit key intermediate key handheld programming power socket tool 1.2. Power up the motor 1.2.1 Put the power adapter of the handheld power tool into power socket 1.2.2 Connect the wires of the motor to the connectors of...
  • Page 3 MANUAL 1.2.3 Turn the rotary button on the power tool to position. 2. Setting end limits  IMPORTANT Always start with setting the open limit (top) limit with a factory default motor.  Note It is important to have the fabric of the blind tight around the tube. 2.1.
  • Page 4 MANUAL 2.1.2 Insert the limit setting key into the key hole TOP text is marked to the inside of the blind. 2.1.3 Use the movement buttons on the handheld power tool to determine the desired position. Open (top) Page 4 of 12 version: 1.0...
  • Page 5 MANUAL 2.1.4 Remove the limit setting key. The Open (top) limit has been set!  Note To re-position the Open (top) limit of the blind, repeat step 2.1.2. 2.2. Close limit (bottom) 2.2.1 Insert the limit setting key into the key hole BOTTOM text is marked to the inside of the blind.
  • Page 6 MANUAL 2.2.2 Use the movement buttons on the handheld power tool to determine the desired Close (bottom) position. 2.2.3 Remove the limit setting key. The Close limit has been set!  Note To re-position the bottom limit of the blind, repeat step 2.2.1. Page 6 of 12 version: 1.0...
  • Page 7 MANUAL 3. Favourite position IMPORTANT  Always set the end limits first! 3.1. Set a favourite position 3.1.1 Locate the motor key hole 3.1.2 Insert the intermediate key into the key hole Page 7 of 12 version: 1.0...
  • Page 8 MANUAL 3.1.3 Send the blind to the desired favourite position using on the handheld power tool. movement buttons 3.1.5 Remove the intermediate key. The favourite position has been set! Page 8 of 12 version: 1.0...
  • Page 9 MANUAL 3.2. Remove the favourite position 3.2.1 Send the blind to the favourite position using the on the handheld power tool. movement buttons 3.2.2 Locate the motor key hole Page 9 of 12 version: 1.0...
  • Page 10 MANUAL 3.2.3 Insert the intermediate key into the key hole 3.2.4 Send the blind to the top (open) position using the on the handheld power tool. movement buttons Page 10 of 12 version: 1.0...
  • Page 11 MANUAL 3.2.5 Remove the intermediate key. The favourite position has been removed!  Note To set a new favourite position, repeat step 3.1 Set a favourite position Page 11 of 12 version: 1.0...

  • Page 12: Important Notice

    MANUAL Important notice Hunter Douglas Europe B.V. and its affiliates (Hunter Douglas) reserve the right to make corrections, enhancements, improvements and other changes to its products and services, and to discontinue any product or service. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and complete.
