- Page 1 PAPER FOLDER INSTRUCTION MANUAL Before operating this unit please read and follow all instructions...
-
Page 2: Table Of Contents
Thank you for purchasing the LEDAH240 Paper Folding Machine. Please read these instructions before operating the machine and observe the listed safety precautions. CONTENTS SAFETY PRECAUTIONS KNOW YOUR PAPER FOLDER SPECIFICATIONS CONTROL PANEL INSTALLATION & SETUP INSTALL FOLD PLATES 6 - 7 SETTING UP THE FOLD SIZE &... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS 1. Your safety as well as the safety of others is important to LEDAH. In this manual are important safety instructions. Please read and retain these instructions. 2. Read all instructions before use. Save these instructions for later use. -
Page 4: Know Your Paper Folder

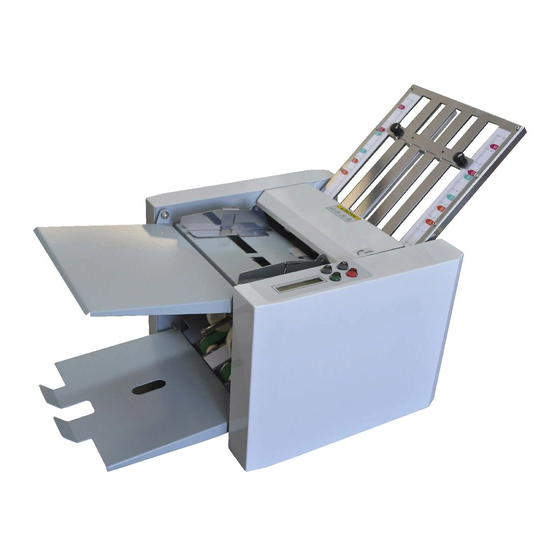

KNOW YOUR PAPER FOLDER Paper Guides Top Cover Infeed Tray Upper Fold Plate Outfeed Roller Lower Fold Plate Control Panel Outfeed Conveyor Front Cover SPECIFICATIONS Paper Tray Capacity Up to 300 sheets Speed 7200 sheets per hour | 120 sheets per minute Paper Width 128mm - 210mm Paper Length... -
Page 5: Installation & Setup
INSTALLATION & SETUP Inspect your machine and its associated parts for damage. Ensure you have all components after unpacking: 1. LEDAH240 Paper Folding Machine 2. Upper and Lower Fold Plate 3. Power Cord SETUP Place the LEDAH240 on a sturdy, level surface. Lower the output conveyor tray into its fully open position Open the Paper Infeed Tray Attach power cable to back of the machine and plug into appropriate wall outlet... -
Page 6: Install Fold Plates
INSTALL FOLD PLATES Upper Fold Plate Lower Fold Plate Half Fold Diverter Fold Stop Fold Stop Knobs Fold Stop UPPER FOLD PLATE Install the upper fold plate at an angle, as shown below. Align the notches on each side of the fold plate with the pins on each side of the machine body. - Page 7 LOWER FOLD PLATE Install the lower fold plate at an angle, as shown below. Align the notches on each side of the fold plate with the pins on each side of the machine body. Push gently on the fold plate to lock it into position. Note - If the fold plate is not installed correctly once the machine is turned on - it will display an error message Insert Upper Fold Plate at an angle...
-
Page 8: Setting Up The Fold Size & Type
SETTING UP THE FOLD SIZE & TYPE • Determine the Fold Type desired from the Fold Chart There are 4 Fold Types to choose from: The C Fold or Letter Fold The Z Fold or Zig Zag Fold The Double Parallel or Gate Fold The V Fold or Half Fold 1. -
Page 9: Setting Up The Outfeed Roller
SETTING UP THE OUTFEED ROLLER Please note - A zip tie is used to hold the Outfeed Roller in place during transportation. Please cut and remove the tie before using the machine. The Outfeed Roller needs to be in the correct position to ensure the folded paper is fed out properly and does not stack/jam inside the machine. -
Page 10: Operation & Counter Function
OPERATION & COUNTER FUNCTION If you wish to fold all available paper in the paper tray, press the START button. The machine will begin folding paper and the counter will record the number of sheets folded. The machine will stop automatically once all paper has been folded. -
Page 11: Setting Up Custom Folds
SETTING UP CUSTOM FOLDS The LEDAH240 is capable of custom size paper folds. Choose your desired fold type and refer to the below examples Example 1: Uneven “C” Measure the length of panel “A” Panel A Adjust the upper fold plate so that the stop plate lines up with the measurements of the panel “A”... -
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION Machine will not Start 1. Check that the power cord is plugged in 2. Check that the power switch is ON Paper will not feed 1. Check the paper guides, that the paper sheets can move freely 2. -
Page 13: Error Messages
ERROR MESSAGES ERROR MESSAGE SOLUTION OVERLOAD 1. Check that the Outfeed Roller is properly adjusted for fold type and paper size. 2. Clear any paper sheets from the infeed rubber rollers 3. Clear any jammed paper or debris 4. Press 4. -
Page 14: Contact
CONTACT For further information or assistance please contact us on the below information: Bantex Pty Ltd 17 Interchange Drive Eastern Creek NSW 2766 Phone: 1300 655 667 Fax: 1300 655 668 Email: customersupport@bantexgroup.com.au Web: www.bantex.com.au...
Need help?
Do you have a question about the 240 and is the answer not in the manual?
Questions and answers
Hi, We have recently purchased the Ledah 240 paper folding machine and it was working perfectly until we had one paper jam. Question: Do you need to reset the machine is some way or should the error message disappear when plates are set correctly? The 'Plate 2 set error' is being displayed on the screen and after looking at your User Manual, I believe I have reseated the plates correctly. Page 13: Error Messages - Ledah 240 Instruction Manual [Page 13] | ManualsLib If it is easier to ring, please call me on 0413 676722. I really don't want to fold 1600 brochures by hand... Thanks, Jo
To resolve the 'Plate 2 set error' on the Ledah 240 paper folding machine after a paper jam, remove the lower fold plate (Plate 2) and reinstall it correctly. Ensure the plate is aligned with the pins and seated properly as described in the installation instructions.
