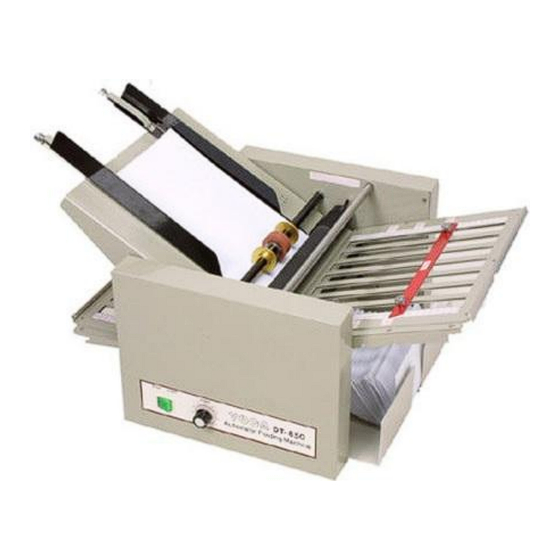

- Page 1 FOLD DT850 PAPER FOLDING MACHINE OPERATING INSTRUCTION MANUAL...
- Page 2 OVERVIEW 1. Paper Guides 2. Paper Guide Rollers 3. Retarder Roll 4. Indicator Bar 5. 1 Fold Table 6. Fold Scales 7. Conveyor Table 8. On/Off &Speed Control 9. 2 Fold Table 10. Feed Table...
- Page 3 SETTING UP 1. Unpacking Carefully unpack the unit and note all following components for assembly Folding Machine Unit Folding Plate #1 Folding Plate #2 Feed table plate (with adjustable roller) Feed table paper guides (two pieces with clamps) ...
- Page 4 3) Insert the fold plate #1 into the left top side positioning on the four locating pins situated on the inside machine housing. Ensure the open end of fold plate is facing 4) Insert the fold table #2 into the right bottom side under the paper feed plate on the four locating pins on the inside machine housing.
- Page 5 Setting up Fold Types The DT-850 paper folder is capable of producing all standard fold types along with the ability to customise folds for individual purposes. NAME FOLD TYPE STOP BAR SETTING Fold Plate 1: ½ Single Fold Fold Plate 2: Fit reverse, closed end Fold Plate 1: 2/3 Letter Fold...
- Page 6 Correct loading of the paper into the paper folder is essential for trouble free folding. Friction fed paper folders like the DT850 requires you to load the paper in a shingled batch. Instead of the stack of paper being loaded as a square block into the folder, the stack should be shingled or fanned back so as each end of the stack is now angled or shingled.
- Page 7 5. Speed Control The correct speed for general folding applications is around 5,000. If folding multiples manually then you should increase the speed to around 10,000 per hour. The machine has a top speed of 15,000. Due to noise levels, in enclosed environments it is recommended running the machine at speeds below 8,000 per hour.
-
Page 8: Troubleshooting Guide
Trouble shooting guide Warning: This machine contains moving parts which can catch hair or loose clothing and pinch fingers. During operation and maintenance keep hands, hair and loose clothing clear of moving parts. Service or disassembly of side covers should only be done with power cords disconnected.
