Instruction Manual

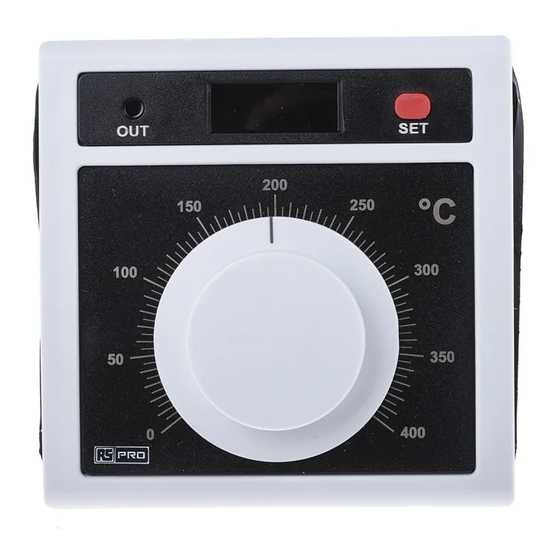

RS Pro Analog Thermostat with Digital Display
Stock Number: 124-1044
Please read this document carefully before using this product. The guarantee will be invalidated if the device is
damaged by not following instructions detailed in the manual. The company shall not be responsible for any damage
or losses however caused, which may be experienced as a result of the installation or use of this product.
Control output state LED
(Light is on when control output is energized)
OUT
100
50
0
• 96 x 96mm, 1/4 DIN Format.
• Digital display shows process temperature or setpoint.
• On-Off or time proportional control.
• Fe-Const thermocouple.
• Output relay de-energizes on sensor failure.
• Easy setting procedure.
• CE marked.
Application areas
Plastic injection presses, automatic bread making ovens, nylon bag machines,
shrink packing machines, furniture presses, industrial ovens, textile machines,
ironing presses and other temperature control applications.
FOR MORE INFORMATION VISIT THIS SITE
http://www.rs-components.com/index.html
Set key
SET
Temperature display
200
150
250
°C
300
Temperature setting
350
400
124-1044
230V AC
1
Technical Specifications
EN
ENVIRONMENTAL CONDITIONS
Ambient/storage temperature
Max. relative humidity
Rated pollution degree
Height
Do not use the device in locations subject to corrosive and flammable gases.
ELECTRICAL CHARACTERISTICS
Supply
Power consumption
Wiring
Scale
Sensitivity
Accuracy
Display
Data retention
EMC
Safety requirements
OUTPUT
Control output
Life expectancy for relay
knob
CONTROL
Control type
Control algorithm
A/D converter
Proportional band
Control period
Hysteresis
HOUSING
Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, brnzine, acid etc.) or corrosive materials must not be used.
Dimensions
OUT
200
150
100
50
0
99mm
For removing mounting clamps: Push out the flush-mounting clamp in direction 1 as shown in the figure above. Then, pull out the clamp in
1/2
0 ... +50°C/-25... +70°C
80
%
up to 31°C decreasing linearly 50
According to EN 60529
Front panel : IP60
Rear panel : IP20
Max. 2000m
230V AC +10% -20%, 50/60Hz
Max. 5VA
2.5mm² screw-terminal connection
0 ... 400°C
1°C
For adjustment 4%, for display 0,5% (of full scale) or 1 digit
±
±
3 digits, 7.6mm, 7 segment red LED
EEPROM (at least 10 years)
EN 61326-1: 2013
EN 61010-1: 2010 (Pollution degree 2, overvoltage category II)
Relay : 250V AC, 2A (for resistive load), NO+NC or 12V DC 20mA logic output
Mechanical 30.000.000 operation; electrical 300.000 operation
Single-setpoint control
On-Off / time proportional (optional)
10 bits
2% (for time proportional control)
10 second (for time proportional control)
4°C (for On-Off control)
Suitable for flush-panel mounting
W96xH96xD50mm
Approx. 250g (after packing)
Self extinguishing plastics
Depth
14mm
50mm
Flush
mounting
adaptor
SET
250
°C
1
2
300
350
400
Rubber
57mm
packing
Panel
direction 2. If there is no 60mm free space at back side of the device, it would be difficult to remove it from
the panel.
%
at 40°C.
±
Panel cut-out
105mm
90.5mm
Note:
Panel thickness
should be
max. 10mm.
1241044-E-01-161006
