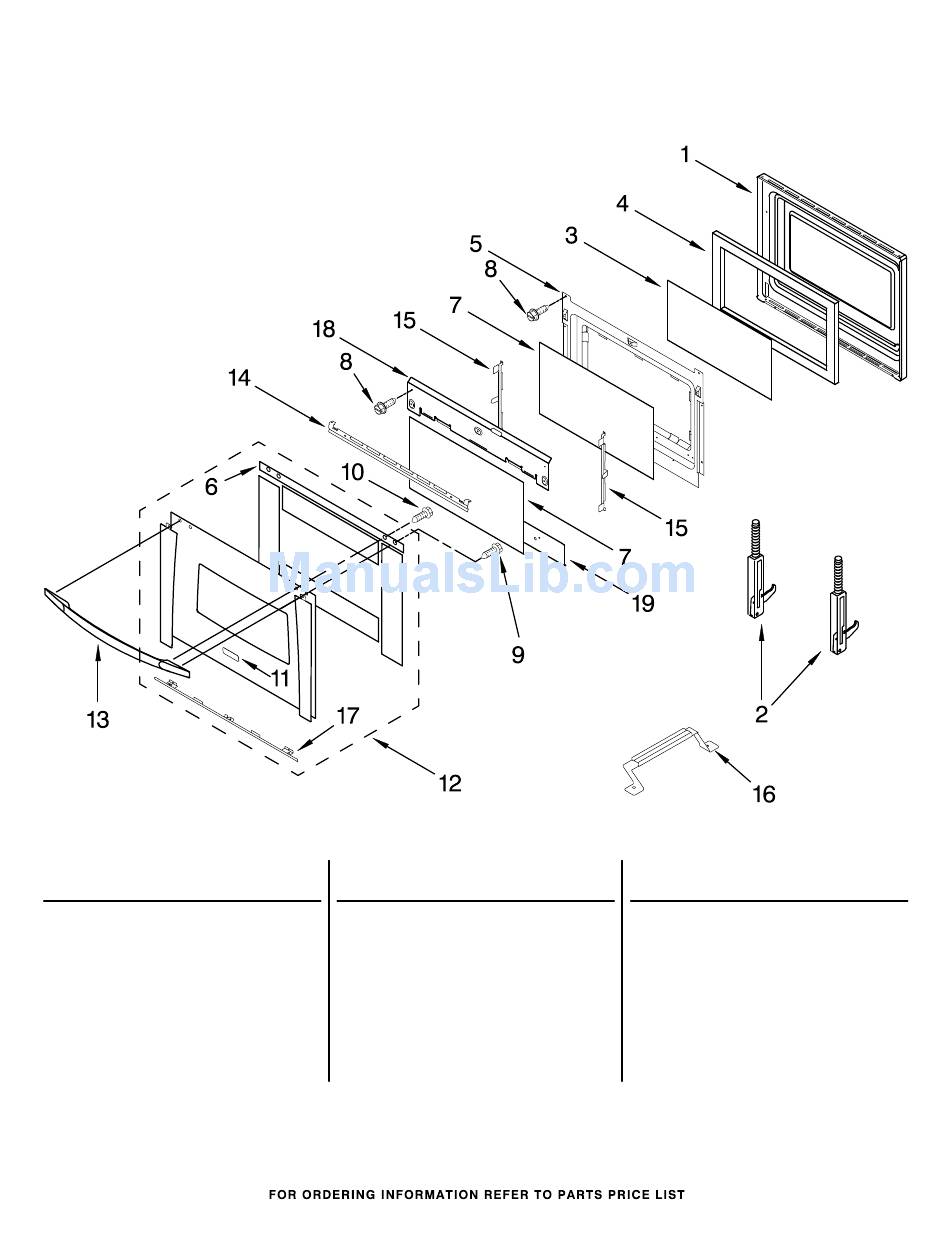

Oven Door Parts - Whirlpool GBS307PRB01 Parts List

30" built−in electric oven self clean convection (gold line)
Hide thumbs

Advertisement

For Models:GBS307PRB01, GBS307PRQ01, GBS307PRS01, GBS307PRY01
Illus.
Part
No.
No.
DESCRIPTION
1
8303700 Door Liner
4448520 Bumper
2
Hinge, Door
9760577 Right Hand
9760578 Left Hand
3
4449259 Glass, Inner
4
4451722 Insulation, Door
5
4457132 Retainer, Glass
6
8303878 Seal − Door
7
9759225 Glass, Inner
8186426

OVEN DOOR PARTS

(Black)
(Designer White)
Illus.
Part
No.
No.
DESCRIPTION
8
4449809 Screw
9
4451040 Screw
10
4449743 Screw
11
8303810 Nameplate
12
Assy, Door Glass
8303300 Black
8303306 White
8303288 Stainless
8304177 Silver
3
(S.Steel)
(U.Silver)
Illus.
Part
No.
No.
13
8302813 Black
8302814 White
8303164 Stainless Steel
14
8303167 Bracket, Handle
15
9759229 Bracket(2nd Glass)
16
9759230 Bracket(3rd Glass)
17
8302947 Vent,Bottom Trim
18
4457103 Shield, Heat
19
4457114 Shield, Heat (Btm)
DESCRIPTION
Door Handle
