Kauber TRIGGER 12V RF User Manual

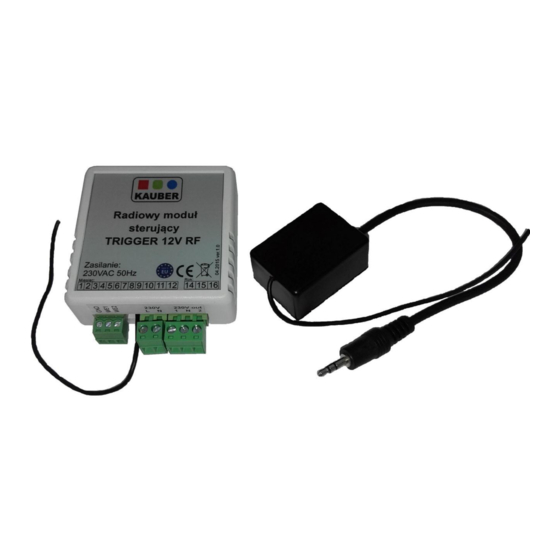

Control module TRIGGER 12V RF
TRIGGER 12V RF is a wireless device that controls a projection screen or a projector elevator (e.g., V_Ultra Slim
KAUBER) from the level of, for example, a multimedia projector, AV receiver or devices equipped with the TRIGGER 12V
DC output. The module also makes it possible to control the screen or elevator by means of a button switch. Additionally,
it is possible to control the module via remote control. The device is an ideal solution for all those who value comfort and
ease of use.
TRIGGER 12V RF is an excellent choice for both – a conference presentation and home theatre.

How it works:

The module is controlled by a radio. The transmitter communicates with the receiver by sending commands to
fold or unfold the screen/elevator. After the projector is switched on, the transmitter sends a signal to the receiver to
unfold the screen/elevator. The module issues the command "Unfolding".
The moment the power to the projector is cut, the transmitter stops sending signals and after a few seconds the module
issues the command "Folding".
At any time when the module is active, we have the ability to control the screen/elevator by means of the button switch
with/without the "hold" function and the radio remote control KAUBER.
When the button with the "hold" function is used, the screen/elevator folds or unfolds itself until the button is released.
During this time, the device does not react to other controlling commands. The method of functioning of the button input is
programmed by means of the procedure described in the "Module programming" section.
The specific directions of movement of the screen/elevator are activated for 80 seconds (the manufacturer's default
setting)
USER MANUAL
TRIGGER 12V RF– low voltage radio triggering module
w w w . k a u b e r . e u
LED indicator
Programming button
ver1.0
