Summary of Contents for TriBrer AFD600

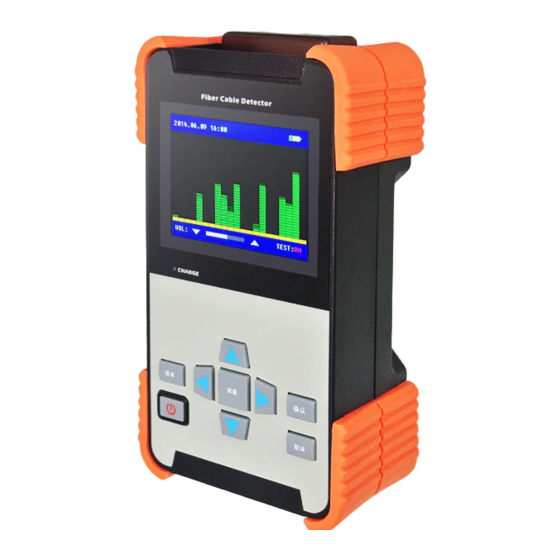

- Page 1 Fiber Cable Detector USER'S GUIDE...
- Page 2 WARNING WARNING You are cautioned that changes or modifications not espressly approved in this document could void yout authority to operate this equipment. To reduce the risk of fire or electric shock,do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet.
-
Page 3: Power Adapter
Check the accessories Standard Edition Power Adapter Optical Reflector(the PC interface) Lithium Batteries Power Adapter CHARGE MENU MENU START START ENTER ENTER Fiber Cable Detector USER'S GUIDE Host Instructions Packet... - Page 4 Description FC/APC USB port TF(MicroSD) card slot Power adapter socket Menu button Power button Start/Shutdown measuring button Confirming button Cancelling button Shifting up button Shifting right button Shifting down button Shift left button 3.5 inch LCD CHARGE Charging indicator MENU MENU START START...
- Page 5 On/Off and Rebooting 1. The Power Button is used to turning on/off and rebooting the device. 2. Long press the power button 2 second or more when the device is off, it will turn on. 3. Short press the power button will turn off the device. CHARGE MENU MENU...
- Page 6 Stand-bying and measuring 1. After turning on the device, it will 2014.01.01 12:05 2014.01.01 12:05 stay at standby screen, as shown in left picture. 2. When press the measuring button, the device will start measure automatically. The screen will display shaking spectrum and the earphones will have some notifying voice at the same time.
- Page 7 Main measuring interface Power indicator Date and time There are 20 Channels in spectrum display area. The horizontal axis represents frequencies which are gradually increasing from left screen 2014.01.01 12:05 2014.01.01 12:05 to right. The spectrum range is the frequency of beating cable.
-
Page 8: Menu Setting
Menu setting Press Menu button, it will enter into 2014.01.01 12:05 2014.01.01 12:05 the menu setting screen, as shown in Data Setting Data Setting 2014 04 04 2014 04 04 left picture. Press up or down button can control the black arrow to select Time Setting Time Setting the setting item. - Page 9 Date and time setting Press the confirming button when 2014.01.01 12:05 2014.01.01 12:05 the black arrow is stopping at date Data Setting Data Setting 2014 2014 04 04 04 04 setting item, it will enter into setting the date. Press left or right button to Time Setting Time Setting select the year, month and day.
-
Page 10: Brightness Setting
Brightness setting Press the confirming button when 2014.01.01 12:05 2014.01.01 12:05 the black arrow is stopping at brigh- Data Setting Data Setting 2014 04 04 2014 04 04 tness setting item, it will enter into setting the brightness. This device Time Setting Time Setting has four levels of brightness, 01 is... - Page 11 Software and hardware version The serial number of software and 2014.01.01 12:05 2014.01.01 12:05 hardware version has been set when Data Setting Data Setting 2014 04 04 2014 04 04 the device is finished manufacturing. User cannot modify. The version Time Setting Time Setting number represents the device's...
- Page 12 Charging This device uses lithium batteries. When a lower battery indication shows up, you should charge the battery packet. It only needs you to plug the adapter into the corresponding port. Charge it less than 12 hours. Under full power state, the device will protect itself automatically to avoid battery overshoot.
- Page 13 Detail parameters Dynamic range 10dB/18dB(Using Optical Reflector) Optical fiber type Wavelength 1550nm Optical interface FC/APC Monitor 3.5 inch TFT Testing range 40/90Km Laser power 0~3dBm Earphone port 3.5mm Earphone impedance 8~32 Reflecting loss<2dB, FC/PC interface Optical reflector USB(Use in upgrading software) Communication interface TF(Use in calibrating at factory) Storage card...
